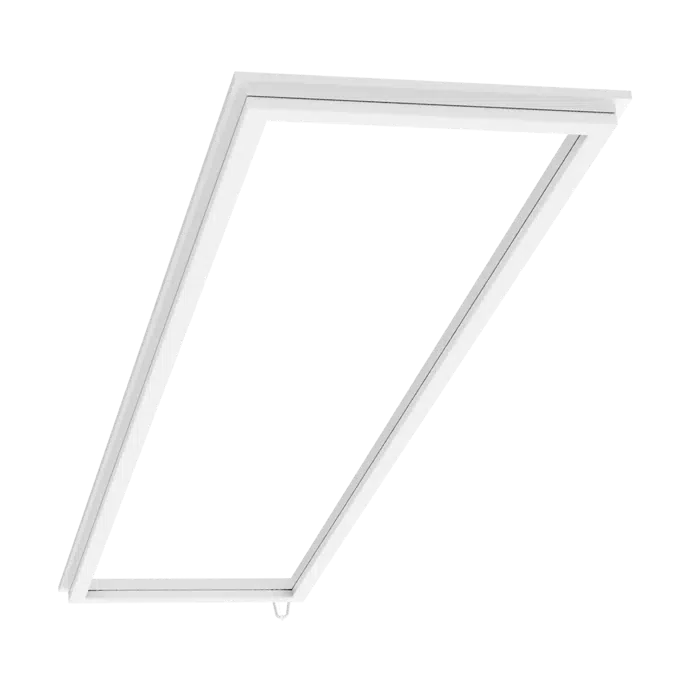

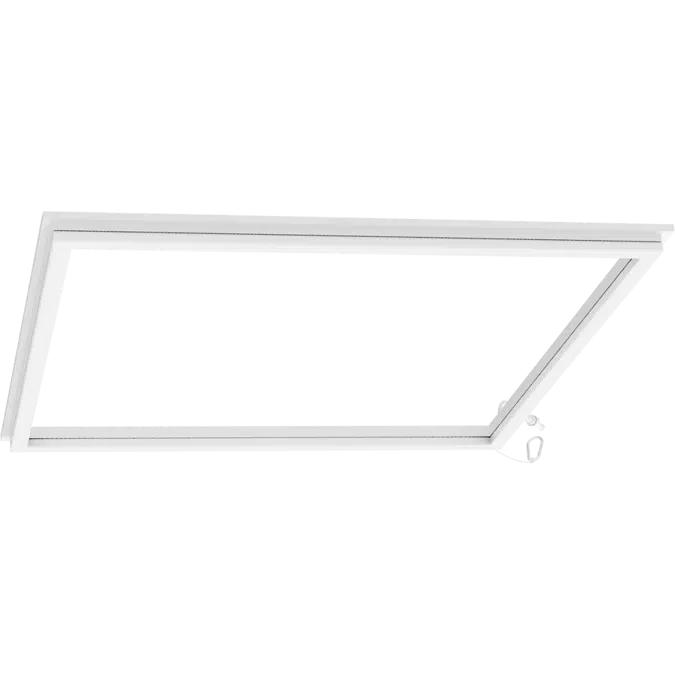

FRAME Field Adjustable Light

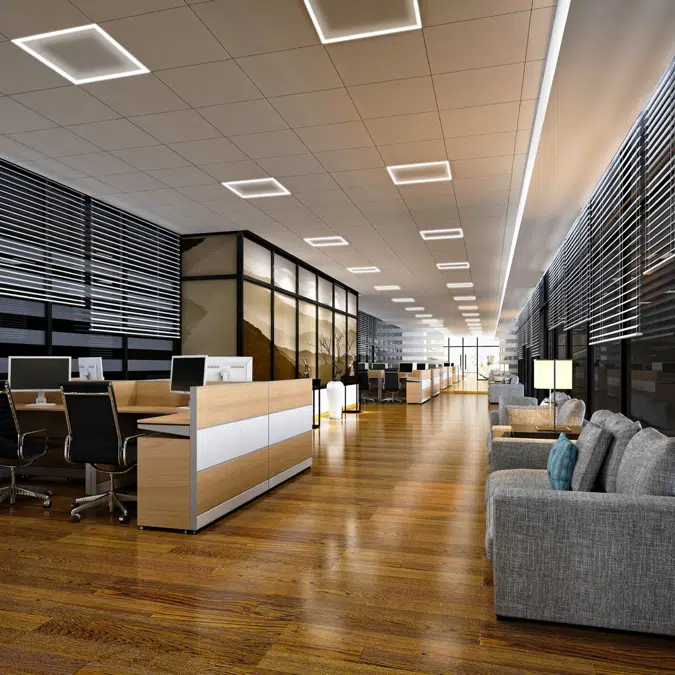

The FRAME redefines commercial lighting with its minimalist approach. It’s simply a frame that’s edge lit—but don’t let its simplicity fool you. Its clean aesthetics make it ideal for modern office spaces, retail applications, and any application where clean lines and quality lighting are essential. Available in 2x2, 1x4, and 2x4 that are easily installed into existing t-grids, each model offers five field adjustable CCTs and wattages to ensure that the FRAME fits seamlessly into your space.

KEY FEATURES

Available in three sizes: 2X2, 1X4, and 2X4 with selectable wattages
- 2X2: 40/35/30/25/20W (Default 40W)
- 1X4: 40/35/30/25/20W (Default 40W)
- 2X4: 50/45/40/35/30W (Default 50W)
Selectable CCT: 3000/3500/4000/5000/6500K (Default 4000K)
Voltage rating: 120–277V
0-10V dimming down to 10%
Battery backup option available — mounts off-board directly onto the T-grid bracket; operates LED for 90 minutes on power failure
Available with Lightcloud Blue smart wireless controls (Bluetooth Mesh)
IC rated — suitable for direct contact with insulation
Damp location rated
DLC Premium listed (meets DLC 5.1 requirements)
100,000-hour LED lifespan
5-year limited warranty

Specification

Compliance
- UL Listed; suitable for damp locations
- IC rated for direct insulation contact
- DLC Premium listed (DLC 5.1):
  - FR2X2: S-7M9K6M
  - FR1X4: S-Z22MB1
  - FR2X4: S-S1Q1C2
- IESNA LM-79 and LM-80 tested by independent laboratory
- DLC Network Lighting Control: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
LED Characteristics
- Long-life, high-efficacy, discrete, surface-mount LEDs
- 100,000-hour lifespan based on IES LM-80 results and TM-21 calculations
- CRI: 83 at 3000K and 6500K; 84–85 at 3500K/4000K/5000K
Construction
- Recessed into existing T-grid brackets
- Aluminum housing
- Polycarbonate lens
- White finish; formulated for high durability and long-lasting color
- Mercury and UV free; RoHS-compliant components
- Minimum starting temperature (standard): -4°F (-20°C)
- Minimum starting temperature (with battery backup): 32°F (0°C)
- Maximum ambient temperature (standard): 104°F (40°C)
- Maximum ambient temperature (with battery backup): 122°F (50°C)
Electrical
- Driver: Constant Current, Class 2, 120–277V, 50/60 Hz
- 0–10V dimming; dims down to 10% (requires separate 0–10V DC dimming circuit)
- Surge protection: L-N: 1kV; L/N-PG: 2kV
- All values typical with ±10% tolerance
- Amperage draw:
  - 20W: 120V: 0.18A, 208V: 0.11A, 240V: 0.08A, 277V: 0.08A
  - 25W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
  - 30W: 120V: 0.28A, 208V: 0.16A, 240V: 0.14A, 277V: 0.12A
  - 35W: 120V: 0.32A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
  - 40W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
  - 45W: 120V: 0.41A, 208V: 0.24A, 240V: 0.21A, 277V: 0.16A
  - 50W: 120V: 0.46A, 208V: 0.26A, 240V: 0.23A, 277V: 0.20A
Battery Backup
- Operates LED for 90 minutes upon power failure
- Wired for 120–277V
- Emergency Light Loss Factor:
  - 20W: 0.10 / 25W: 0.08 / 30W: 0.07 / 35W: 0.06 / 40W: 0.05 / 45W: 0.05 / 50W: 0.04
Factory Default Settings
- Wattage: 2X2 & 1X4 default 40W; 2X4 default 50W
- CCT: 4000K default
Wireless Controls (Lightcloud Blue)
- Bluetooth Mesh — no gateway or hub required
- Rapid Provisioning technology for quick commissioning
- iOS and Android app available
- Compatible with residential and large commercial applications
Warranty
- 5-year limited warranty covering light output, driver performance, and paint finish
