Sunstyle® Photovoltaic Solution
| Unique ref.: | 115BK-90SV-95TC |
|---|---|
| Brand: | SUNSTYLE |
| Product family: | Panneau Photovoltaïque |
| Product group: | Sunstyle |
| Width (mm): | 870 |
| Height (mm): | 870 |
| Depth (mm): | 7 |
| Date of publishing: | 2020-01-22 |
| Edition number: | 1 |
| Type: | Assembly (multiple objects) |
Downloads
-
PDF
Sunstyle International - IEC 61215-61730 - TUV Certificate.pdf - IEC 61215-61730 - TUV Certificate
-
PDF
Sunstyle International - Rapport de classement Broof.pdf - Classification Report Fire Resistance Broof(t3)
-
Revit
Roofing_Panels_SunStyle_Showcase-Et-Les-Instructions-Du-Projet.rvt - REVIT 2015 - SHOWCASE - FR
-
Revit
Roofing_Panels_SunStyle_Showcase-And-Instructions-Project.rvt - REVIT 2015 - SHOWCASE - INT

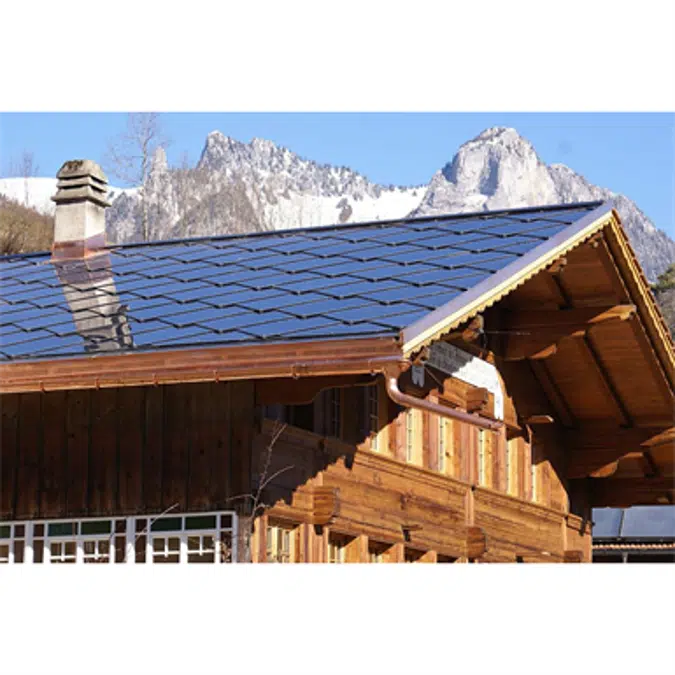

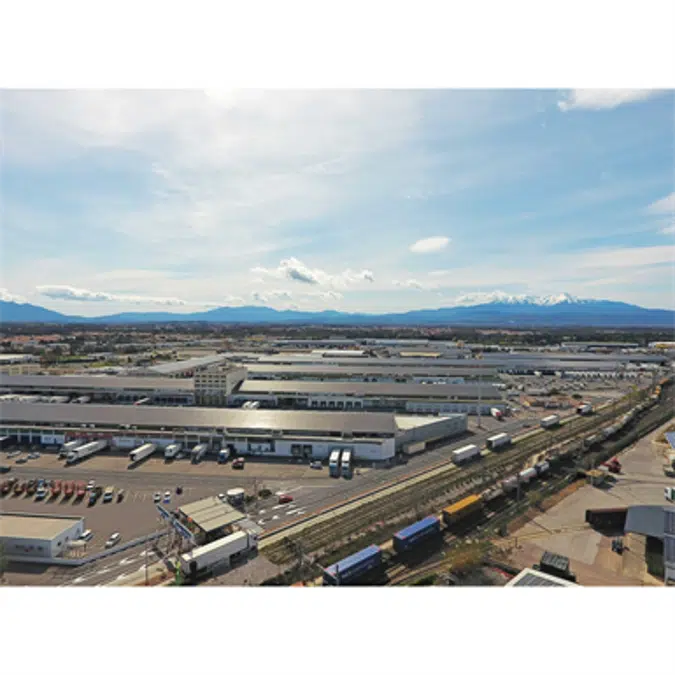

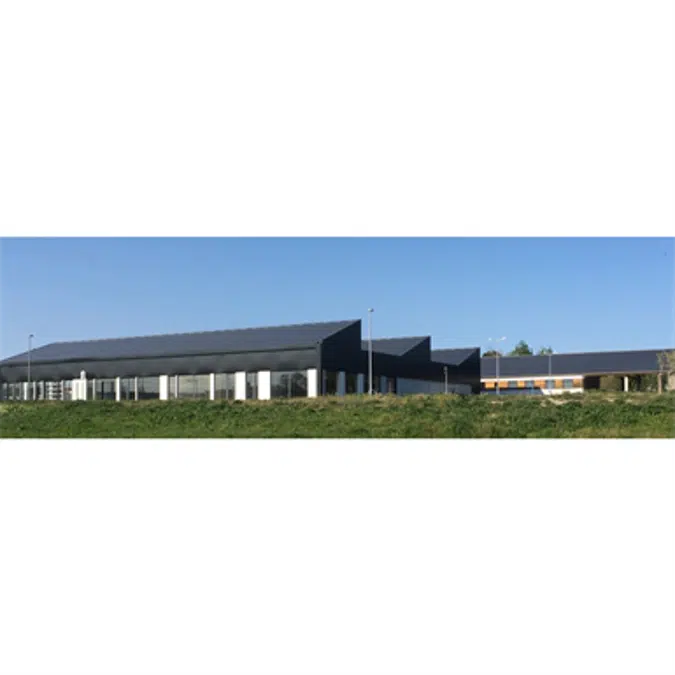

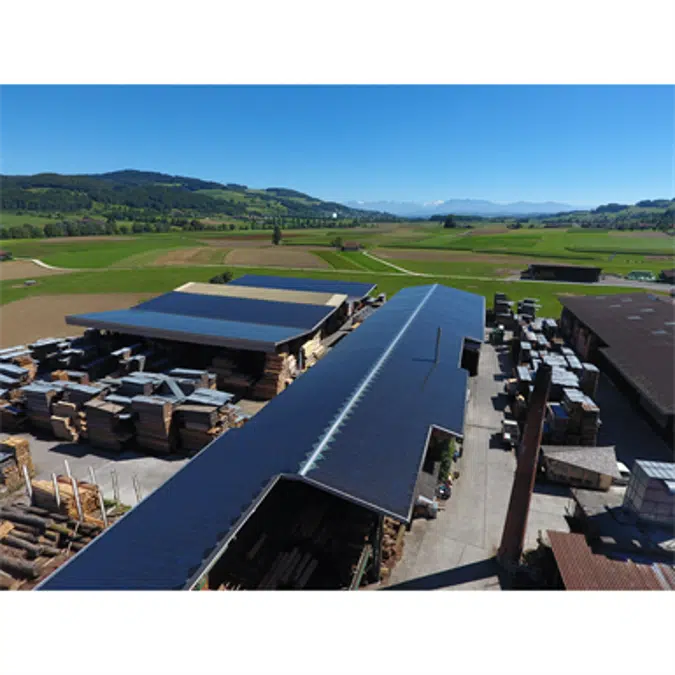

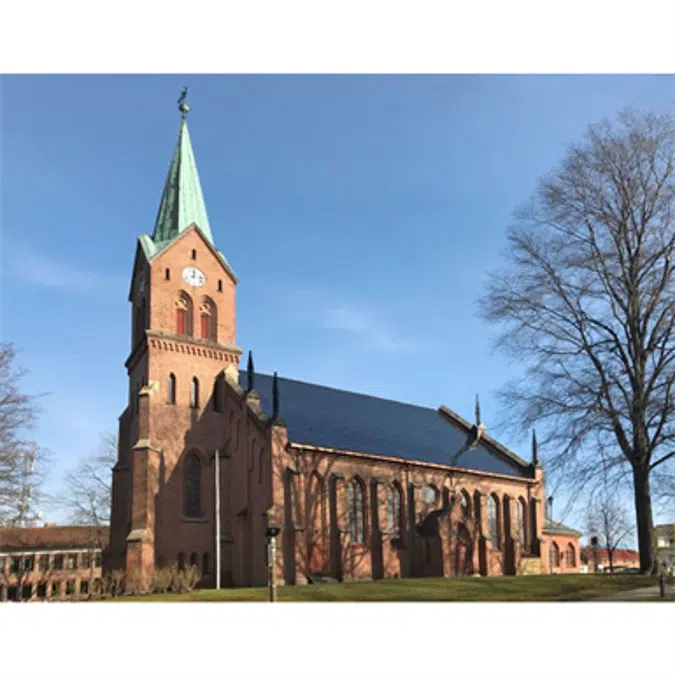

Sunstyle International manufactures, sells and distributes the Sunstyle® photovoltaic solution for roofs and façade which combines clean electricity production, water tightness and aesthetic while generating long term savings for the buildings. The Sunstyle® PV solution addresses the needs of green cities, providing sustainable and autonomous buildings with a perfect integration in the urban landscape.
Water Tightness
Sunstyle® is a roofing material, providing water tightness thanks to an overlapping configuration similar to classic tiles.
Electricity
Sunstyle® is a high performance PV module, similar to infrastructure scale equipment, for a local production and consumption.
Aesthetics
Sunstyle® is available in several colors, with enough references to ensure a homogeneous cover of the roof : unmatched visual integration.
Economics
Sunstyle® generates clean electricity and savings on the very long term with a 25-year performance guarantee

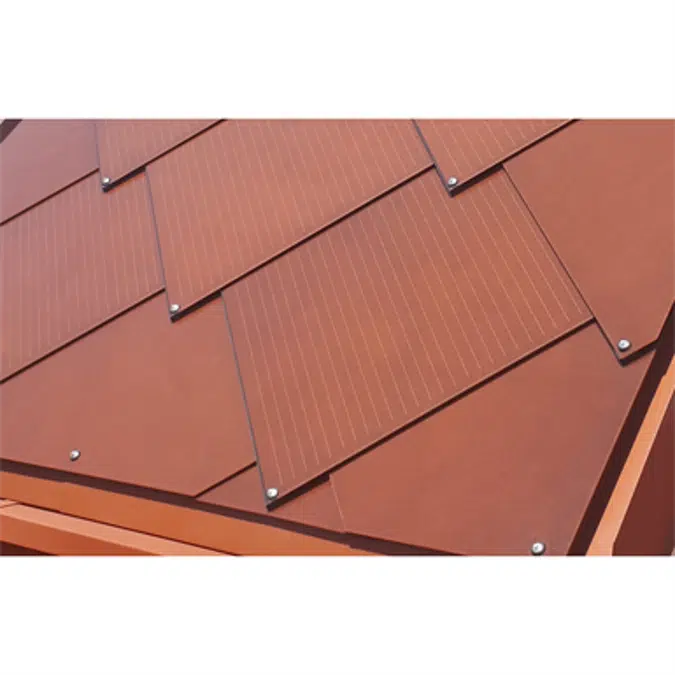

- Available colors : Black, Silver, Terracotta
- Capacity : 114 Wp for Black, 85 Wp for others
- Dimensions : 870x870mm per panel
- Weight : 19.5 kg/m² (including wood integration system)
- Certified IEC 61215:2016 and IEC 61730:2016
- European Fire Classification Broof(t3)
- Salt spray test resistance according to IEC 61701
- Agressive atmostphere resistance (ammonia) according to IEC 62716
- Sand and dust resistance (Desertic environnement) according to IEC 60068-2-68
- Fire reaction rated Bs2d0 according EN 13501-1:2007 + A1:2009
- System water tightness tested in CTMNC Moby Dick and CSTB Jules Verne testing facilities
- CSTB Avis Technique CCFAT 21/20-70_V1
- Validated by french insurers C2P (French "Green List")
- Manufactured in France
| Product url: | https://www.sunstyle.com/Home.html&sp=EN |
|---|---|
| Installation instructions: | https://www.youtube.com/watch?v=NICvvJvAXt0 |
| COBie Product Data Sheet: | |
| Product certification: | https://www.certipedia.com/quality_marks/1111220041?locale=en&certificate_... |
| Technical description: | |
| Instruction video: | |
| GTIN code: |
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
https://www.bimobject.com/en/sunstyle/product/115bk-90sv-95tc
| Material main: | Glass |
|---|---|
| Material secondary: | |
| Designed in: | France |
| Manufactured in: | France |
| Weight Net (Kg): | 14.5 |
| BIMobject Category: | Electrical - Solar Panels |
|---|---|
| IFC classification: | Electric Generator |
| UNSPSC name: | Solar generators |
| UNSPSC code: | 26111607 |
| Uniclass 1.4 Code: | L74216 |
| Uniclass 1.4 Description: | Photovoltaic cells/solar panels |
| Uniclass 2.0 Code: | PR-65-80-63 |
| Uniclass 2.0 Description: | Photovoltaic Modules |
| Uniclass 2015 Code: | En_70_10_80 |
| Uniclass 2015 Description: | Solar panel fields |
| NBS Reference Code: | 65-80-63 |
| NBS Reference Description: | Photovoltaic Modules |
| CSI MasterFormat 2014 Code: | 26 31 00 |
| CSI MasterFormat 2014 Title: | Photovoltaic Collectors |
| OmniClass Number: | 23-19 25 11 19 15 |
| OmniClass Title: | Solar Panels |
| CSI UniFormat II Code: | D3010 |
| CSI UniFormat II Title: | Energy Supply |
