Straight flight staircase, level tread, railing, round bar

Straight flight staircase, level tread, railing, round bar

Weland manufactures stable, safe, and easy-to-install high quality straight flight staircases. The staircases are made from steel and feature only a small number of main components. Weland manufactures several models of staircase with childproof railings, which means a maximum opening of 100 mm. Both stair treads and railings are available in a number of different designs, but stair treads are usually made of grating with a safety front edge.

Specification

Width: 400-2000 (in 100 mm intervals up to 1600 mm) Other widths: 1800 and 2000 mm
Stair tread made from TH6-S grating with safety nose, mesh width: c/c 34 x 75 mm
Handrail and baluster: Steel tube Ø 42 mm
Intermediate baluster: Round bar Ø 12 mm
Follower: Steel tube Ø 28 mm
Railing height: 1100 mm

Technical specification

Unique ref.st-stair_last_step_floor_level_cp
Collection setStraight stairs
CollectionEscape and industry
TypeObject (single object)
Date of publishing2019-04-17
Edition number2

Links

Product urlhttps://www.weland.com/en/products/staircases/straight-flight-staircases/
Product certificationhttps://www.weland.com/wp-content/uploads/2020/09/byggvarudeklaration-en-gb.pdf
Technical descriptionhttps://www.weland.com/en/products/staircases/straight-flight-staircases/planning-and-design/

Related

Material mainHot-dip Galvanized

Classification

BIMobject CategoryConstruction - Stairs
IFC classificationStair
Uniclass 2015 CodeEF_35_10
Uniclass 2015 DescriptionStairs
CSI MasterFormat 2014 Code05 51 00
CSI MasterFormat 2014 TitleMetal Stairs
OmniClass TitleStairs
OmniClass Number23-17 23 17

Region availability

Europe
Denmark
Finland
Germany
Iceland
Norway
Sweden

Similar products

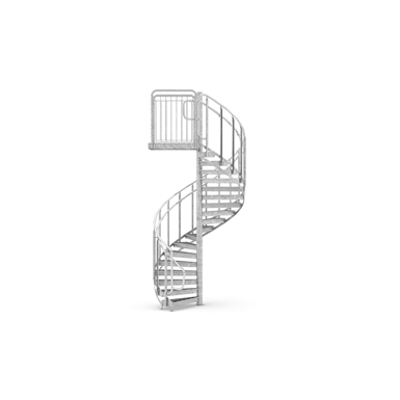

Image for Spiral Staircase, 20 steps per revolution
