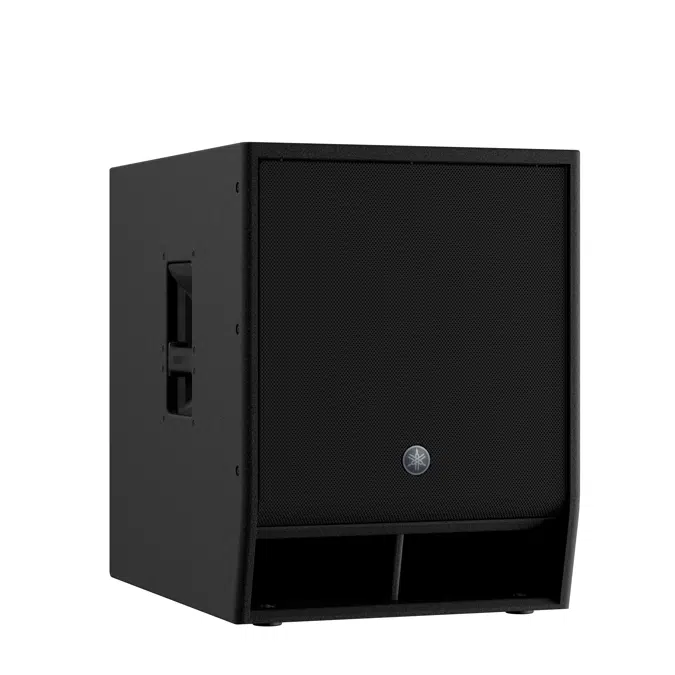

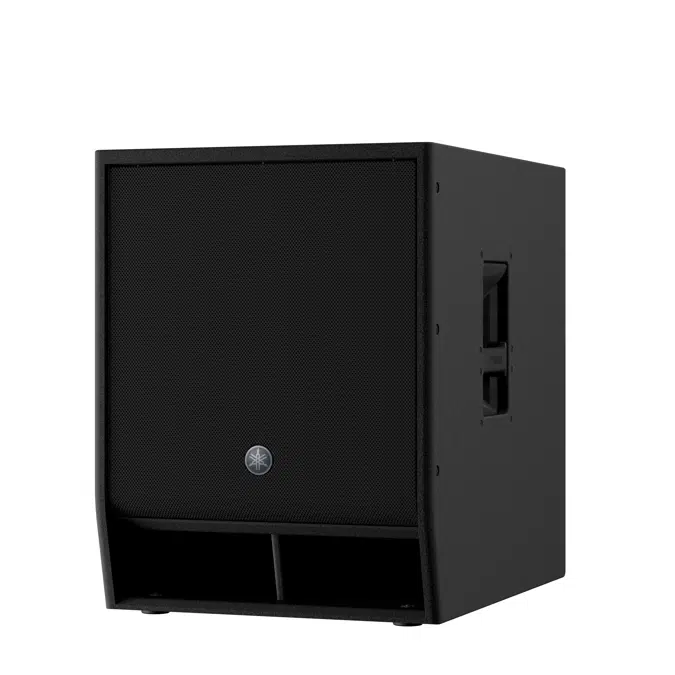

DXS15XLF Powered Subwoofer

DXS15XLF Powered Subwoofer

DXS15XLF Powered Subwoofer

DXS15XLF Powered Subwoofer

DXS15XLF Powered Subwoofer

DXS15XLF Powered Subwoofer

Yamaha Corporation

DXS15XLF Powered Subwoofer

Powered Subwoofer

Specification

Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

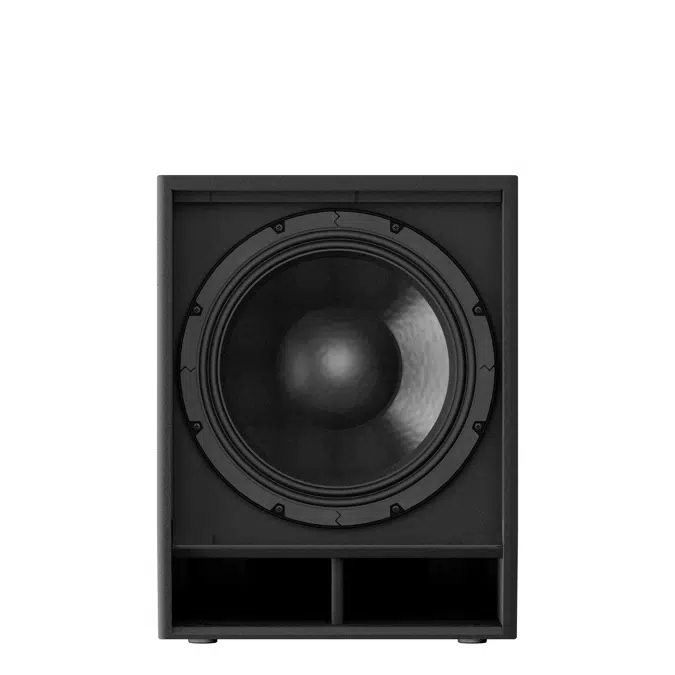

- Powered 15" subwoofer with 4" Voice Coil
- Maximum 136dB SPL and 33 Hz - 150 Hz frequency range is ideal for today's sound engineering demands
- High power 1600W Class-D amplifier module
- 96 kHz DSP for true high-definition sound with super low latency

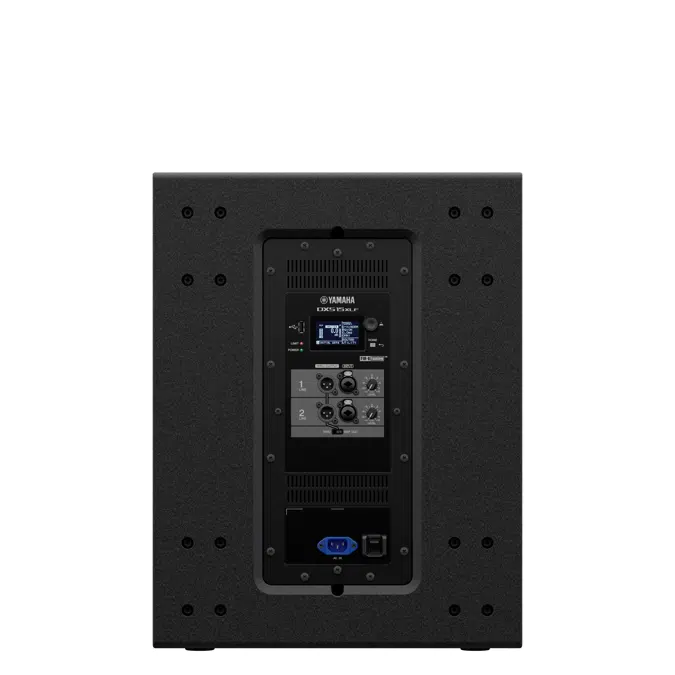

- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing, etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

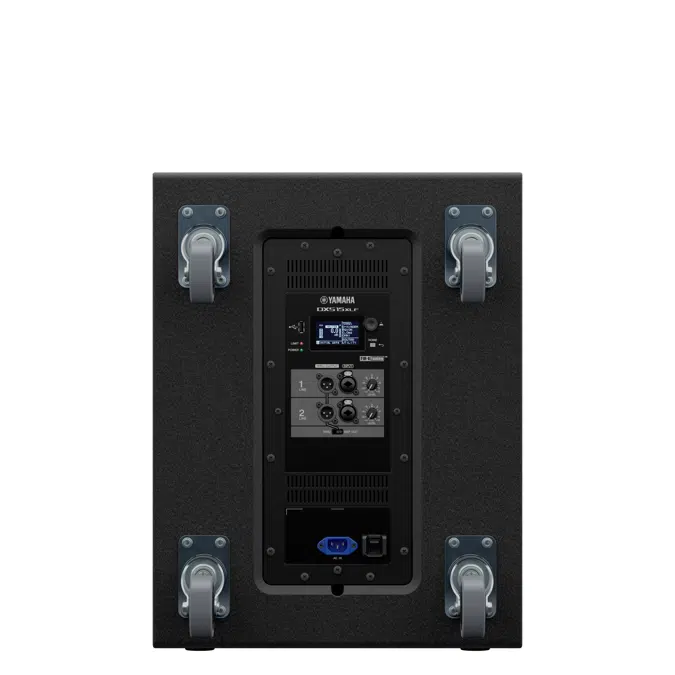

- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
- Durable Black or white finish

Technical specification

Unique ref.DXS15XLF
Product familyProfessional Audio
Product groupPowered Subwoofer
TypeObject (single object)
Date of publishing2026-01-20
Edition number1
Height (mm)587
Width (mm)450
Depth (mm)600

Links

Product urlhttps://asia-oceania.yamaha.com/en/business/audio/products/speakers/dxs-xlf/index.html
Instruction videohttps://audioversity.yamaha.com/course/pa-application-guide-2025
Technical descriptionhttps://asia-oceania.yamaha.com/en/business/audio/products/speakers/dxs-xlf/specs.html

Related

Weight Net (Kg)40

Classification

BIMobject CategoryElectronics - Audio
ETIM CodeEC000682
ETIM NameLoudspeaker set
Uniclass 2015 CodePr_70_75_36_50
Uniclass 2015 DescriptionLoudspeakers
CSI MasterFormat 2014 Code11 52 00
CSI MasterFormat 2014 TitleAudio-Visual Equipment
OmniClass Number23-37 15 29 11 13
OmniClass TitleLoudspeakers
