VXC8S Ceiling Subwoofer

Yamaha Corporation

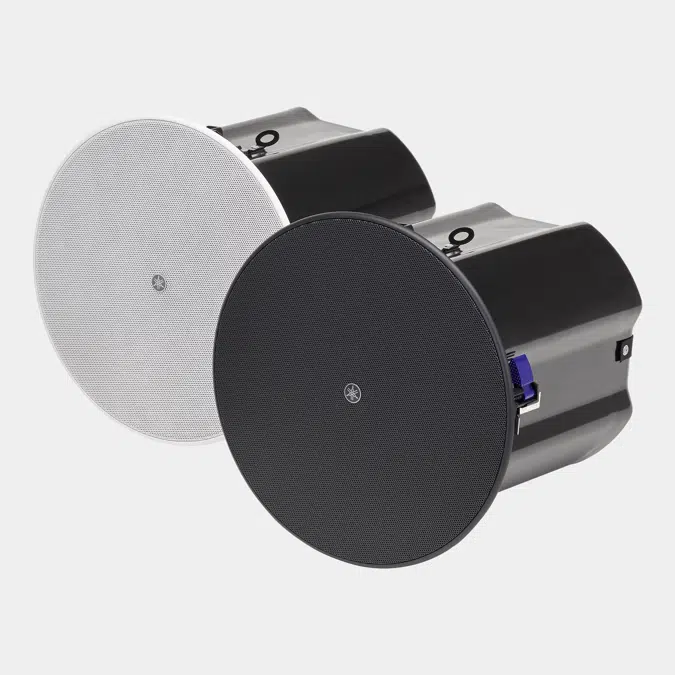

VXC8S Ceiling Subwoofer

VXC series "S models" are ceiling subwoofers that ideally complement the expressive natural sound of VXS and VXC series speakers without spoiling interior design.

Specification

8" ceiling subwoofer
- Sound and size ideally matched to the VXS and VXC series
- Band-pass design ensures smooth, distortion-free low-frequency extension
- Direct support for low-impedance or high-impedance connections
- Built-in carrying band increases safety during installation
- Anti-drop tab mechanism provides secure temporary positioning during installation
- Double-threaded speaker clamp screws for speedy tightening
- Paintable grilles with magnetic catches
- Black and white versions available
- 8.7 kg (19.2lbs), Ø324 x 314 mm (Ø12-13/16" x 12-23/64")
- AB-C8S (sold separately) is required to secure safe installation of VXC8S

Technical specification

Unique ref.vxc8s-ceiling-subwoofer
Product familyProfessional Audio
Product groupVXC Series "S model"
TypeObject (single object)
Date of publishing2026-01-20
Edition number1
Height (mm)314
Width (mm)324
Depth (mm)324

Links

Product urlhttps://asia-oceania.yamaha.com/en/business/audio/products/speakers/vxc-smodel/
Instruction videohttps://audioversity.yamaha.com/course/introduction-yamaha-products-bgm-applications
Technical descriptionhttps://asia-oceania.yamaha.com/en/business/audio/products/speakers/vxc-smodel/resources.html

Related

Weight Net (Kg)8.7

Classification

BIMobject CategoryElectronics - Audio
ETIM CodeEC000682
ETIM NameLoudspeaker set
Uniclass 2015 CodePr_70_75_36_50
Uniclass 2015 DescriptionLoudspeakers
CSI MasterFormat 2014 Code11 52 00
CSI MasterFormat 2014 TitleAudio-Visual Equipment
OmniClass Number23-37 15 29 11 13
OmniClass TitleLoudspeakers
