Fig. AF777 - Swivel Attachment

ASC Engineered Solutions

Archivados

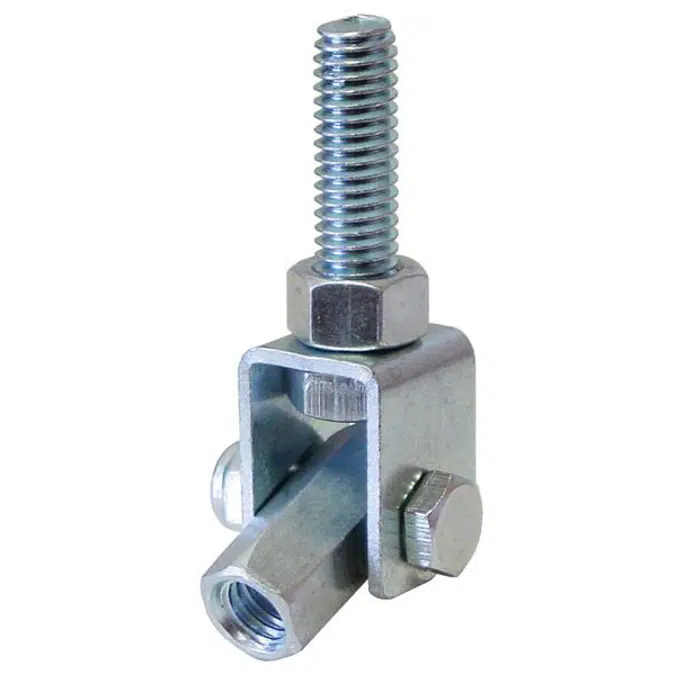

Fig. AF777 - Swivel Attachment

Hanger Service: Swivel hanger designed to support horizontal piping from angled structures. Listed for installation at angles between 0 and 90 degrees.
Restraint Service: May be installed as a branch line restraint per the requirements of NFPA 13. The AF777 may be installed directly to the structure or to the Fig. AF779.
Approvals: cULus Listed (UL 203 and UL 203a – 3/8" only). Complies with the hanging and restraint requirements listed in NFPA 13.
Installation:

Install mounting bolt into structure or structural attachment and tighten hex nut until the yoke (U-Shaped Bracket) is tight against the structure or attachment.
Thread the hanger rod or restraint rod into the hex union until it bottoms. Back rod off a maximum of one turn to allow the hex union to swivel freely.
Adjust angle as necessary.
If the AF777 is exposed to vibration from the piping system or the structure, jam nuts may be installed on the mounting bolt and the threaded rod.
Fire Protection applications shall also be installed per NFPA 13 requirements.

Features: Full 90 degree rotation allows for installation at any angle.
Ordering: Specify figure number, finish, size, and description.

Especificaciones técnicas

Referenciafig-af777-swivel-attachment
Familia de productoSupport Systems
Grupo de productosSeismic Bracing > Seismic Restraints
TipoObjeto (objeto simple)
Día de publicación2022-06-21
Número de edición1

Links

Instalación URLhttps://bim-catalog.asc-es.com/product/seismic-restraints/fig-af777-swivel-attachment/
Certificación de productohttps://bim-catalog.asc-es.com/product/seismic-restraints/fig-af777-swivel-attachment/
Descripción técnicahttps://bim-catalog.asc-es.com/product/seismic-restraints/fig-af777-swivel-attachment/

Información relacionada

Diseñado enEstados Unidos
Fabricado enEstados Unidos

Clasificación

Categoría BIMobjectFontanería - Tuberías
