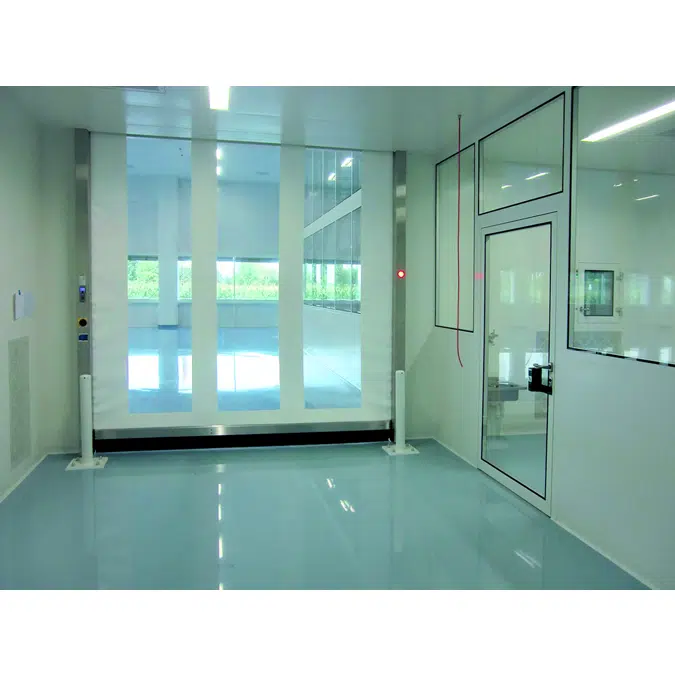

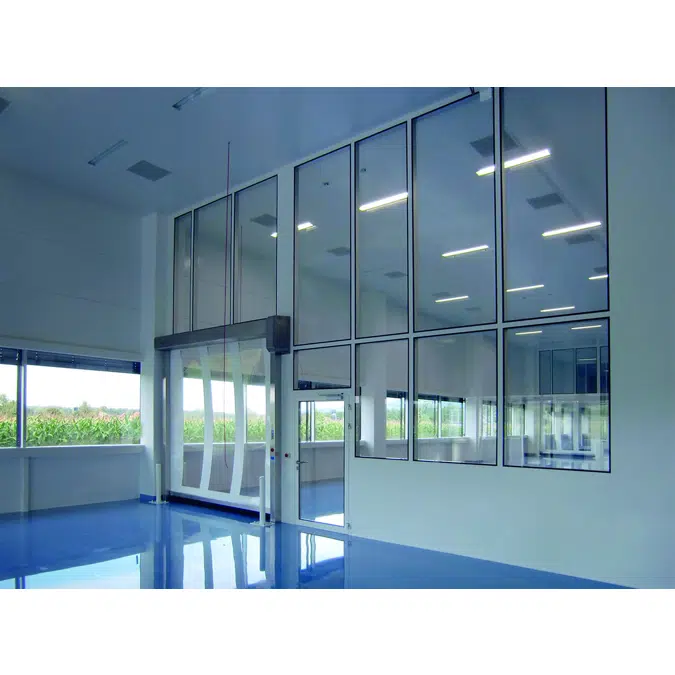

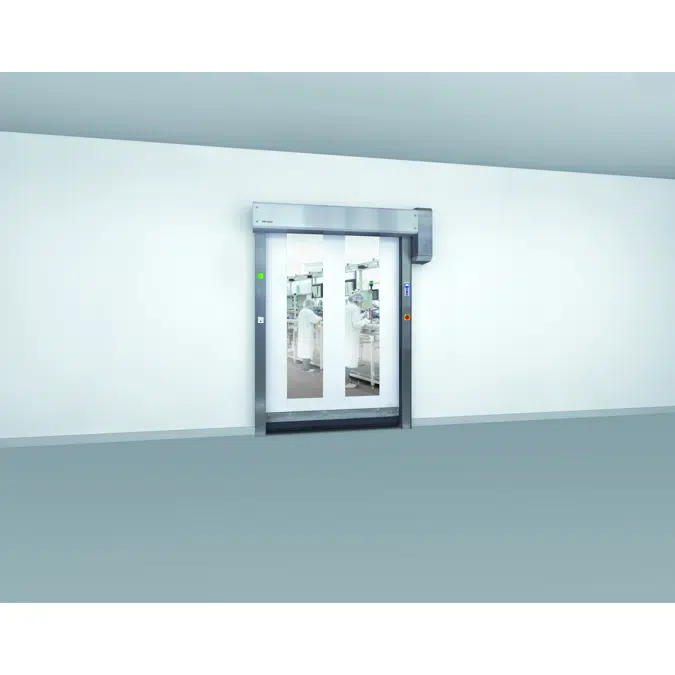

ASSA ABLOY RR300 Clean Room Door

Standard equipment

Dimensions:

• Daylight width (DW): 1000 - 3500 mm
• Daylight height (DH): 1000 - 3500 mm
• Area: 1,0 – 12,25 sqm

Resistance against wind load: Max. pressure difference 50Pa (not indicated on door label)

Air permeability: 21 m³/h at pressure difference 25 Pa for door DW 1500xDH 2000mm (not indicated on door label)

Noise emission: < 70 dB A

Door blade:

• Clear PVC (1,4mm) with vertical-coloured stripes in PVC (0,5mm)
• Daylight width: ≤1270 mm: no vertical middle stripe
• Daylight width: 1271 - 2400 mm: 1 vertical middle stripe
• Daylight width: 2401 - 3500 mm: 2 vertical middle stripes
• Daylight width: >3500 mm: 3 vertical middle stripes
• Colours for vertical and horizontal stripes (not silicon free, according to RAL):
• white (RAL 9016), if not specified: white

Side guides: Stainless steel with head plate and photocell (receiver/transmitter)

Side guide covers: Stainless steel (for all doors with side guides made of stainless steel)

Wind reinforcement: Wind tabs mounted at door blade sides

Top roll cover: Stainless steel, 6° (for all doors with side guides made of stainless steel)

Motor cover: Stainless steel, 6° (for all doors type RR300 Clean)

Top roll: Aluminium diameter 115 mm with stainless steel plates and with shafts made of stainless steel

Top roll sealing: Stainless steel profile, as well used for gable guidance at lintel

Bottom beam: Stainless steel with self-testing safety edge inside rubber profile; cable chain inside side frame (bottom beam always stainless steel when side frame stainless steel)

Safety device: Photocell in door line (280mm above floor level)

Installation location: Inside or outside of area with over pressure

Drive unit: MCC: GfA gear motor 0,75 kW with safety catching device and with pulse encoder. Available for right and left side. (If not specified: right side)

Emergency opening: The door can be opened manually by means of a crank

Opening-/closing speed: MCC max. 2,0 / 1,0 m/s

Control box:

• MCC, modular frequency converter (Vector Control) integrated underneath top roll cover. Graphic Display unit integrated in side frame on drive side (only for DH≥1730mm). Combibox not available. MCC in control box not available
• DH < 1730mm: Display unit for wall mounting
• MCC extension box can be used

Power supply (MCC):

• 3/(N)/PE 380V, 50/60Hz (+-10%)
• 3/(N)/PE 400V, 50/60Hz (+-10%)
• 3/(N)/PE 415V, 50/60Hz (+-10%)
• 3/(N)/PE 440V, 50/60Hz (+-10%)
• 3/(N)/PE 460V, 50/60Hz (+-10%)
• 3/(N)/PE 480V, 50/60Hz (-10%/+5%)
