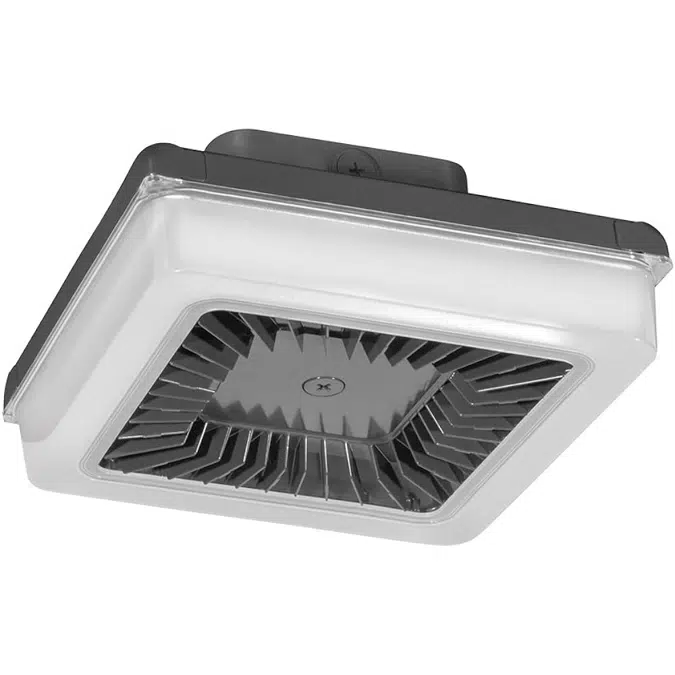

Objetos BIM - ¡Descarga gratis! PORTO LED Parking Garage Lights

UL Listing
- Suitable for wet locations
LEDs
- Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
- IP Rating: IP66, protected against dust and water ingress
Drivers
- 30W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.25A, 208V: 0.13A, 240V: 0.12A, 277V: 0.11A, 480V: 0.12A, surge protection 4kV, THD ≤20%, pF 99%
- 42W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.36A, 208V: 0.19A, 240V: 0.18A, 277V: 0.17A, 480V: 0.13A, surge protection 4kV, THD ≤20%, pF 99%
- 55W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.50A, 208V: 0.33A, 240V: 0.32A, 277V: 0.31A, 480V: 0.13A, surge protection 4kV, THD ≤20%, pF 99%
- 70W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.59A, 208V: 0.37A, 240V: 0.32A, 277V: 0.27A, 480V: 0.15A, surge protection 4kV, THD ≤20%, pF 90%
- 80W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.68A, 208V: 0.42A, 240V: 0.36A, 277V: 0.31A, 480V: 0.23A, surge protection 4kV, THD ≤20%, pF 90%
- 105W: Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.87A, 208V: 0.52A, 240V: 0.45A, 277V: 0.38A, 480V: 0.23A, surge protection 4kV, THD ≤20%, pF 90%
14” PORTO
- 30W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 29 29 29
  - Output Lumens: 3,455 3,151 3,136
  - Lumens Per Watt: 118 108 107
  - Color Accuracy (CRI): 74 73 72
- 42W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 43 43 43
  - Output Lumens: 4,833 4,382 4,316
  - Lumens Per Watt: 112 103 101
  - Color Accuracy (CRI): 74 73 72
- 55W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 59 57 58
  - Output Lumens: 6,085 5,303 5,234
  - Lumens Per Watt: 103 93 91
  - Color Accuracy (CRI): 75 73 72
18” PORTO
- 70W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 71 70 71
  - Output Lumens: 7,835 7,715 7,642
  - Lumens Per Watt: 111 110 108
  - Color Accuracy (CRI): 74 73 71
- 80W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 82 80 81
  - Output Lumens: 8,754 8,479 8,384
  - Lumens Per Watt: 107 106 104
  - Color Accuracy (CRI): 74 73 71
- 105W
  - Color Temperature: 5000K 4000K 3000K
  - Input Watts: 104 104 103
  - Output Lumens: 10,208 10,162 9,950
  - Lumens Per Watt: 98 98 96
  - Color Accuracy (CRI): 74 73 71
Other Features
- Ambient Temperature: Suitable for use in 40°C ambient temperatures.
- Cold Weather Starting: The minimum starting temperature is -40°C.
- Thermal Management: Superior thermal management with external
- Housing: Die-cast aluminum and sheetmetal housing
- Mounting: Die-cast aluminum backbox with (4) 1/2” conduit openings with plugs. Hinged tether for easy installation and wiring. Also accommodates 1/2” or 3/4” NPS pendants (provided by others).
- Lens: High-transmission and vandal-resistant polycarbonate frosted lens Specular polycarbonate
- Gaskets: High-temperature silicone gaskets
- Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
- Color Uniformity: RAB’s range of CCT (Correlated Color Temperature) for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2015.
- Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
- Green Technology: Mercury and UV free, and RoHS compliant. Polyester metals.
- IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy “Lighting Facts” label.
- California Title 24: PORTO models with integrated multi-level motion sensor comply with 2013 California Title 24 building and electrical codes covered parking garages.
- Power consumption: 1W
- 0-10V sinking current: 50mA
- Adjustable high and low modes: Adjustable time delay: Amount of time in high mode with no motion before switching to low mode: 1 - 30 min. to turn on: None, 1 - 60 min., 1 - 5 hrs.
- Adjustable sensitivity: None, low, medium, maximum
- Adjustable setpoint: None, 1 to 250 fc, auto
- Adjustable ramp up and fade down times: 1 - 60 sec.
- Operating temperature: -40°F to 167°F (-40°C to 75°C)
- Operating Humidity: 20% to 90% non-condensing
- Relay life rating: 200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
