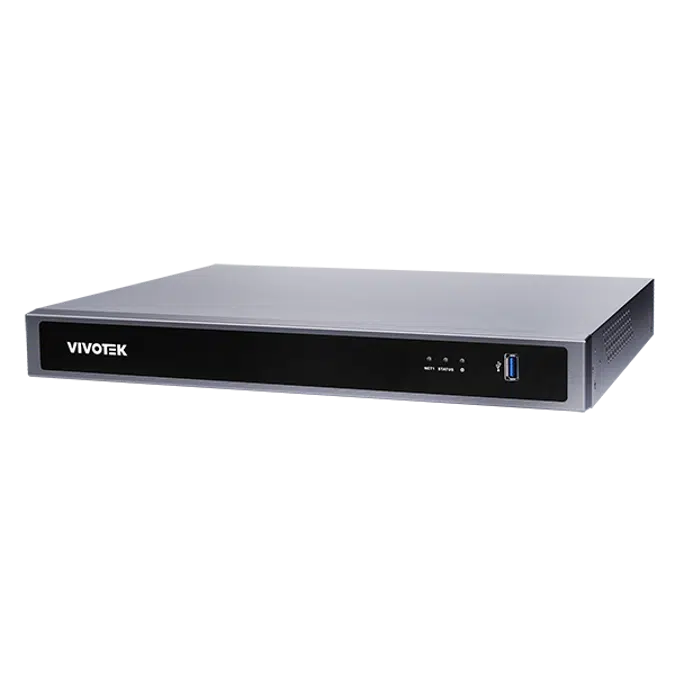

ND9426P Core+ AI H.265 16-CH Embedded PoE NVR

Device

• OS: Embedded Linux
• Watchdog: Hardware + Software
• Power Restoration: System restarts automatically after power recovery

Display

• LiveView Display: 16 channels, multi layout: 1x1, 2x2, 3x3, 4x4, 1M+5, 1M+12, 1P+3, 1P+6, 2P+3, 3V
• Video Output: HDMI x1, VGA x1
• Display Resolution: 3840x2160, 1920x1080, 1280x720
• Dual Monitor: Supported
• Stream Application: Constant/Auto Adaptive Stream
• Fisheye Dewarp:
  • Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
  • Web: 1O, 1R, 1P
• PTZ Operation: Direction control, home, iris, preset, patrol (group)

Video

• Video Format: MJPEG, H.264, H.265
• Graphic Decoder: Hardware decoding
• Decoding Resolution: Up to 7680x2560
• Decoding Capability: H.265/H.264: 3840x2160 @ 120 fps; 1920x1080 @ 480 fps

Audio

• Audio Format: G.711, G.726, MPEG-2 AAC-LC

Record

• Recording Time: Pre-record 5 sec (max. 10); Post-record 20 sec (max. 300)
• Recording Stream: Dual
• Recording Throughput: 192 Mbps
• Recording Mode: Continuous, schedule, manual, event, activity adaptive streaming
• Recording Setting: Recycle (unit: day)
• Watermark: Supported
• Seamless Recording: Supported

Storage & Backup

• Disk Devices: Internal x2 (3.5"); HDD purchased separately
• HDD Max. Capacity: See HDD supported list on VIVOTEK website
• RAID: RAID 0, 1
• Disk Management: Create, format, and remove disk; HDD S.M.A.R.T.
• External Storage: USB storage (USB 3.0)
• Video Clip Export: USB pen drive (FAT format)
• Schedule Backup: FTP

Playback

• Playback Display: 4 channels, multi layout: 1x1, 2x2, 1P+3, 3V
• Playback Control: Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
• Video Search: By calendar, date/time, and alarm
• Thumbnail Explorer (Storyboard): Lists thumbnails of recorded video (max. 2 CH)
• Snapshot: JPEG
• Video Clip Export: EXE

Network

• Ethernet: 10/100/1000 Mbps Ethernet (RJ-45) x2
• Network Throughput (total): 224 Mbps
• PoE: 802.3at/af compliant PoE ports x16 (total max. 200W) — do not connect non-PD devices to NVR PoE ports, to avoid potential risk
• PoE Management: Supported
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
• External Interface — USB: Front: 1 (USB 3.0); Back: 2 (USB 2.0)
• Alarm In: 4
• Alarm Out: 1
• Audio In: 3.5mm phone jack x1 (hardware available; firmware feature not yet supported)
• Audio Out: 3.5mm phone jack x1

System

• Camera Integration: ONVIF Profile S
• Event: Motion detection, Smart VCA event, cyber attack, PIR detection, tampering detection, camera DI/DO, camera disconnected, disk failure, disk full, NVR DI/DO, PoE error, video loss
• Event Action: Record, email (text), email (snapshot), FTP, buzzer, ePTZ control (go to preset), NVR DO, camera DO, app notification by cloud service
• User Management: User levels — administrator, regular user
• Log: System, recording, user, error
• Date & Time: Time zone, manual, automatic sync (NTP), daylight saving time
• Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Deep Search

• Object Search: People, vehicle
• Scene Search: Line crossing, intrusion, loitering
• Attribute Search:
  • People: Gender, age, clothing color, accessories
  • Vehicles: Type, color

Advanced Features

• VCA Counting Solution: Supported
• VCA Event Search: Smart VCA, Smart 360 VCA
• Smart Search II: Supported
• Trend Micro IoT Security: Supported (3-year free trial)
• Cybersecurity Management: Supported

Remote Client

• Software AP: Shepherd, VSS
• Mobile/Tablet App: iViewer (Android & iOS)
• Web Browser: Chrome
• Cloud Service: VORTEX Connect

General

• Power Input: 100–240V AC, 50/60Hz
• Power Consumption: Max. 270W
• Dimensions: 365 (W) x 315 (D) x 44 (H) mm
• Weight: 2.78 kg (without HDD)
• Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)
• Humidity: 0 ~ 95%
• Safety Certifications: CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
