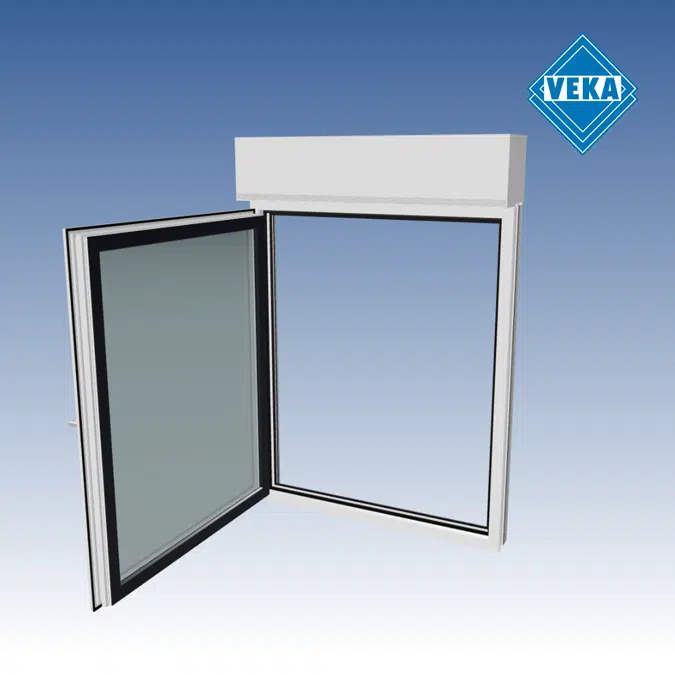

Tilt & Turn Window with roller shutter - SOFTLINE 82 MD, VEKAVARIANT EPS Grupor

SOFTLINE 82 MD is a high‑performance PVC‑U window system with an 82 mm installation depth and a three‑level MD sealing system. The advanced multi‑chamber geometry and VEKA Class A wall thicknesses ensure excellent thermal insulation, high stability and long‑term durability. With support for triple glazing and large element sizes, SOFTLINE 82 MD is ideal for energy‑efficient new builds and demanding renovation projects.

VEKAVARIANT EPS Grupor is a top‑mounted roller shutter box with EPS insulation, designed for excellent thermal and acoustic performance in new construction and major renovation projects. The system is fully compatible with VEKA window systems via proven clip technology and allows the integration of roller shutters, insect screens, ZIP/textile screens or raffstores.

Tekniset tiedot

Product:
Tilt & Turn window with integrated roller shutter, SOFTLINE 82 MD system with VEKAVARIANT EPS Grupor
Finish:
Inside white, outside according to project requirements (foil or aluminium cover caps)
Profile:
VEKA Class A PVC‑U profile, 82 mm installation depth, multi‑chamber design for high stability, durability and energy efficiency
Glazing:
Up to 52–54 mm, suitable for triple glazing and functional glass (thermal insulation, sound insulation, safety glazing)
Window Features
- Tilt & Turn sash for flexible ventilation and easy cleaning
- MD sealing system with three gasket levels for high airtightness and weather resistance
- Excellent thermal performance with Uf‑values approx. 1.0 W/(m²K), depending on configuration
- High acoustic comfort, suitable for residential and commercial applications
Roller Shutter Box – VEKAVARIANT EPS Grupor
- Top‑mounted roller shutter box with high‑performance EPS insulation for excellent thermal and acoustic properties
- Very good thermal performance with Usb‑values down to approx. 0.42 W/(m²K), depending on box size and variant
- Available with inside or outside revision, suitable for new buildings and major renovations
- Fully compatible with SOFTLINE 82 MD and other VEKA window systems via proven clip technology
- Optional integration of roller shutters, insect screens, ZIP/textile screens or raffstores

Tekniset tiedot

Yksilöity viitetilt-and-turn-window-with-roller-shutter-softline-82-md-vekavariant-eps-grupor
TuoteperheVEKA Softline 82 MD
TuoteryhmäTilt and Turn Windows
TyyppiObjekti (yksittäinen objekti)
Julkaisupäivä2026-03-13
Painoksen numero1

Linkit

Tuotteen urlhttps://www.veka.de/en/homepage/products/window-systems/softline82md.html
Tekninen kuvaushttps://www.veka.de/en/homepage/company/partner-concept/partnerregistration.html

Liittyviä

Ensisijainen materiaaliPVC
Toissijainen materiaaliLasi
Suunniteltu:Saksa

Luokitus

BIMobject-luokkaIkkunat - Tilt and Turn Windows
IFC-luokitusIkkuna
ETIM-koodiEC003536
ETIM-nimiWindow (complete with frame)
Uniclass 2015 -koodiPr_30_59_98_92
Uniclass 2015 -kuvausUnplasticized polyvinyl chloride (PVC-U) window units
CSI MasterFormat 2014 -koodi08 50 00
CSI MasterFormat 2014 -nimikeWindows
OmniClass-numero23-17 13 00
OmniClass-nimikeWindows
