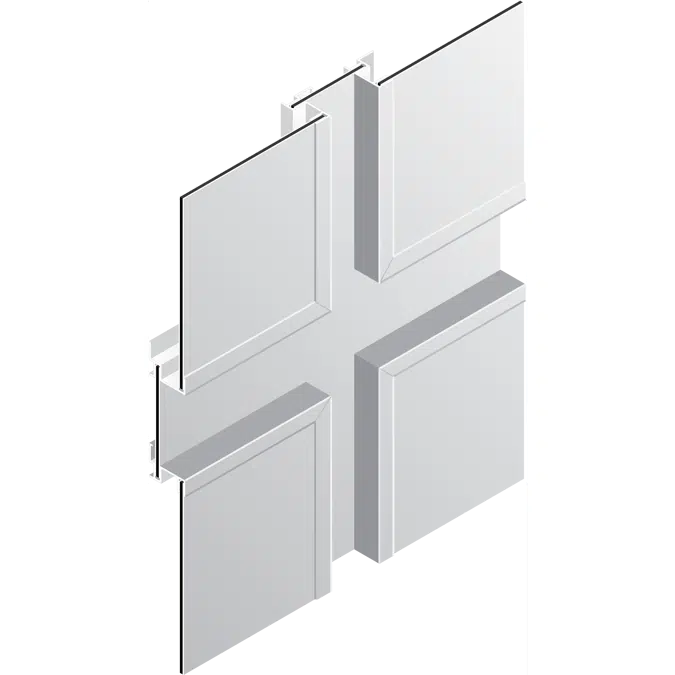

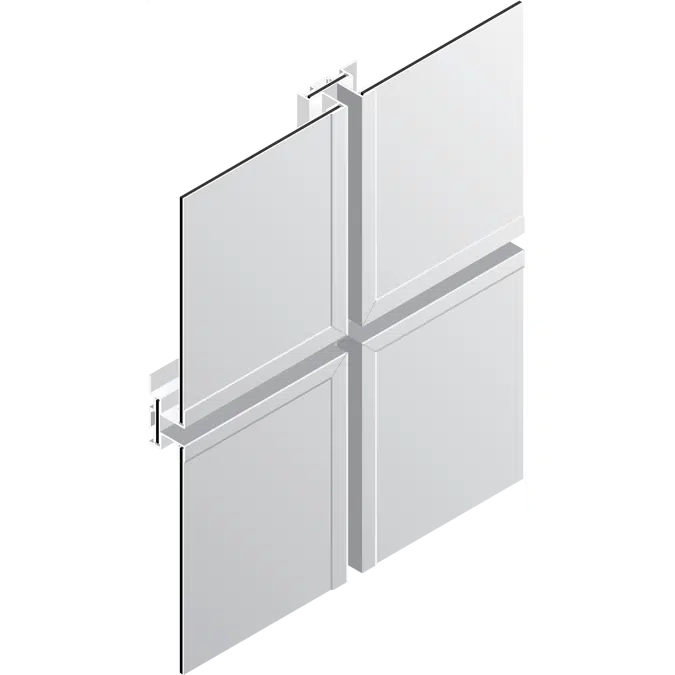

Envelope 2000® Deep-Reveal (D-RV)

Code Tested:

• Panel
  • ASTM E84 (Flame Spread)
  • ASTM D1781 (Peel Strength)
  • ASTM D1929 (Ignition Temperature)
  • ASTM D51929 (Impact Resistance)
• System:
  • ASTM E283 (Air Infiltration)
  • ASTM E330 (Uniform Load)
  • ASTM E331 (Water Resistance)
• Applicable ICC requirements

Panel Composition: 10 -Year Panel Warranty

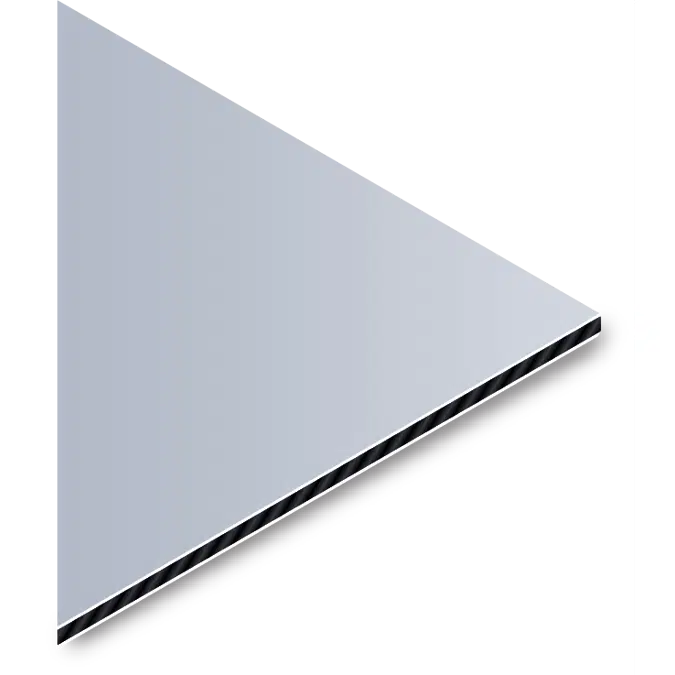

• 024″ Smooth Aluminum
• .105″ Thermoset Phenolic Resin
• .010″ Primed Aluminum

Panel Thickness: 4mm (nominal)

• Thermoset phenolic resin core provides an ultra-smooth substrate.

System Depth: 1-5/16 in.

• Measured from the face of the substrate to the face of the moldings.

Panel Weight: 1.25 lb./sq. ft. (nominal)

Standard Sizes:

• 48″ x 96″ (121.9cm x 243.8cm)
• 48″ x 120″ (121.9cm x 304.8cm)
• 48″ x 144″ (121.9cm x 365.8cm)
• 60″ x 96″ (152.4cm x 243.8cm)
• 60″ x 120″ (152.4cm x 304.8cm)
• 60″ x 144″ (152.4cm x 365.8cm)

Finishes/Finish Warranty:

• Kynar 500® Finish: 30 Years (Pre-finished standard colors/coil-coated)
• Kynar 500® Finish: 20 Years (Custom colors spray-applied)
• Anodized Finish: 20 Years

Recycled Content by Weight:

• Post-Consumer: 0.5%
• Post-Industrial: 23.3% to 23.9%

Wall Design: Cavity

• Allows incidental moisture to enter the system and exit through integrated weep holes.
• Standard and Variable Joint
