MADEIRA SOLAR COMPACT KBS

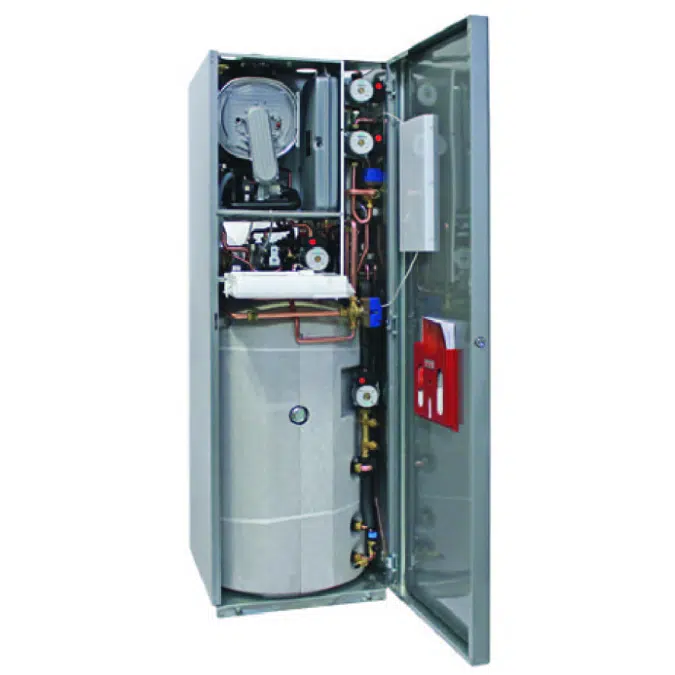

Madeira Solar Compact KBS is a compact condensing heating unit with pre-mixing feature and 170-litre domestic hot water heater with single coil, completed with hydraulic and electronic systems for managing a solar collector system and pre-set as standard to run on natural gas or propane.

PLUS
- 170-litre water heat with single coil
- Touch screen user interface
- Modulation ratio 1:9
- Available in the:
KBS version with a direct zone
KBS-V version with a direct zone and a mixed zone
KBS-Z version with a direct zone and two mixed zones.
- 12-litre solar expansion vessel

Specifikáció

FEATURES
- Fully pre-mixed burner
- Variable-speed combustion fan
- 170-litre water heater with single coil
- 3-speed pump with integrated air purging device
- Motorised deviating valve
- 10-litre heating expansion vessel
- 12-litre DHW expansion vessel
- 12-litre solar expansion vessel
- NTC temperature probes for central heating and DHW
- Front door for immediate access to boiler
- DHW thermostatic mixing valve
- Anti-freeze function for heating
- Side water fittings
- Efficiency rating according to 92/42/EEC: ★★★★
- NOx emission class (EN 297):5
- Built-in electronic card for solar plant management
- Built-in water system for managing the solar plant including:
3-speed solar pump
shut-off valves on delivery and return with thermometers
low regulator with flowmeter with adjustment range between 0.5 and 15 l/1'
6 bar solar safety valve
PREPARED FOR CONNECTION TO
GSM modem for remote switching on and off and malfunction alarm (optional equipment)
