Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain
    Kohler

    Archer® 72" x 36" alcove Heated BubbleMassage™ air bath and whirlpool, right drain

    This Archer® bath offers both a relaxing whirlpool hydromassage and a soothing Heated BubbleMassage™, with each experience controlled independently. Whirlpool jets relax away the day's tension as you surround your body in a cushion of heated massaging bubbles. With Heated BubbleMassage™ hydrotherapy, airjets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage. This bath has a low step-over height while allowing deep, comfortable soaking.

    Features

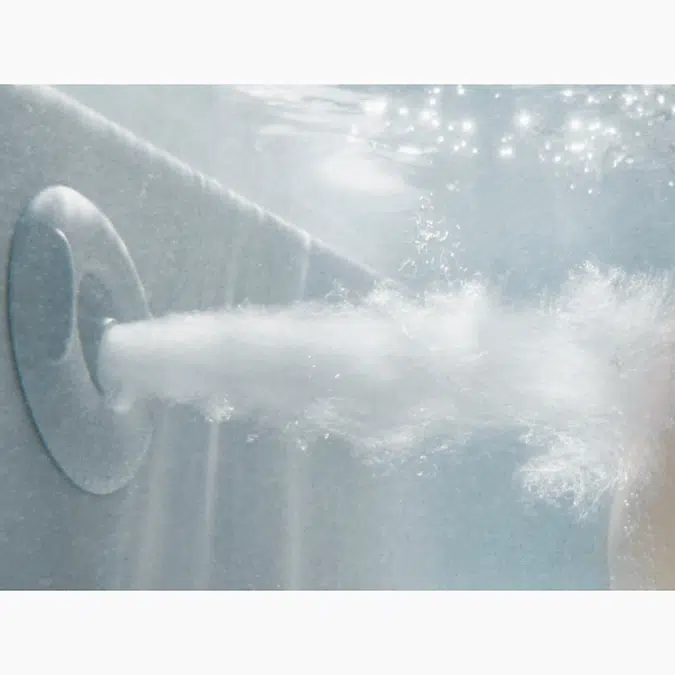

    • 118 airjets release thousands of heated bubbles that surround and support the body in a warm massage
    • Automatic and manual purge cycles remove residual water from air channels after use
    • Variable-speed blower lets you adjust Heated BubbleMassage™ massage intensity to 18 levels
    • Single-speed whirlpool revitalizes sore muscles
    • 8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
    • Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
    • Integral lumbar support
    • Slotted overflow allows for deep soaking
    • Integral apron
    • Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
    • Textured bottom surface
    • Coordinates with other products in the Archer collection
    • Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath

    Technology

    • Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
    • User interface: electronic keypad control for Heated BubbleMassage™; air switch actuator for whirlpool

    Hydrotherapy

    • Whirlpool

    Material

    • Acrylic

    Installation

    • Right drain
    • Alcove
    • Whirlpool pump: 120V electrical requirement
    • Blower: 120V electrical requirement
    • BubbleMassage™ heater: 120V electrical requirement
    • Requires three dedicated circuits
    • Remote blower motor installation required (relocation kit is included)

    Mettiti in contatto con Kohler

    Specifiche tecniche
    • Rif. UnicoKohler-K-1124-XGHRA
    • Famiglia di prodottoBathtubs
    • Gruppo di famigliaArcher®
    • TipoOggetto (oggetto singolo)
    • Data di pubblicazione2023-07-04
    • Numero di versione1
    • Altezza (pollici)20.25
    • Larghezza (pollici)36
    • Profondità (pollici)72
    Relativo a
    • Materiale principaleAcrilico
    • Progettato inStati Uniti
    • Prodotto inStati Uniti
    Classificazioni
    • Categoria BIMobjectArticoli sanitari - Vasche & Spa
    • Codice ETIMEC011609
    • Nome ETIMBath
    • Codice Uniclass 2015Pr_40_20_06_08
    • Descrizione Uniclass 2015Baths
    • Codice CSI MasterFormat 201422 41 19
    • Titolo CSI MasterFormat 2014Residential Bathtubs
    • Numero OmniClass23-31 15 00
    • Titolo OmniClassBathtubs

    Disponibilità Regionale

    Nord America
    Canada
    Messico
    Stati Uniti
