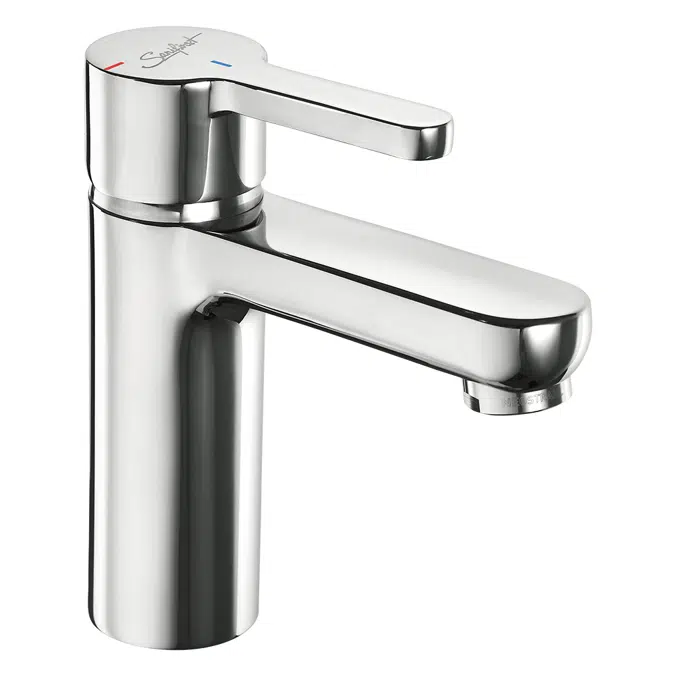

75617 - SANIFIRST - HEALTHCARE TAPS - Single hole washbasin mixer tap - Energy savings -without drainage

> Benefits of the product

• Opening on cold water: avoids drawing hot water when first turned on (energy savings)
• Spout height and projection adapted to washing at the washbasin
• Perfectly adapted to all bathrooms.
• Flow between 4 and 6L / min at 3 bar - in accordance with the French norm standard "Medical"; possible flow modification, in case of disassembly of the
• limiters, by adjusting screw between 4 and 20L / min.
• Water savings and controlled water consumption

> Model

• Height under spout: 92 mm.
• Projection: 100 mm.
• Height of the control: 150 mm.
• Without waste, deck-mounted.
• Star-shaped flow straightener M24 x1.
• Energy-saving 35 mm diameter ceramic cartridge with temperature limit limiter, allowing 9-position adjustment.

> Flow rate

• between 4 and 6L / min at 3 bar - in accordance with the NF “Medical environment” standard; modification of the flow rate possible, if the limiters are removed, by
• adjusting screw between 4 and 20L / min.
• > Recommended pressure
• 3 bar - avoid pressure differences greater than 1 bar between DHW and DCW.
• Minimum pressure: 1 bar.
• Maximum pressure: 5 bar.

> Materials

• Chromed brass.

> Connection

• Hoses with 10X1 stainless steel braided SPEX sheath, EP G'3 / 8. Lg 500 mm with basket filter gaskets and flow limiter.
