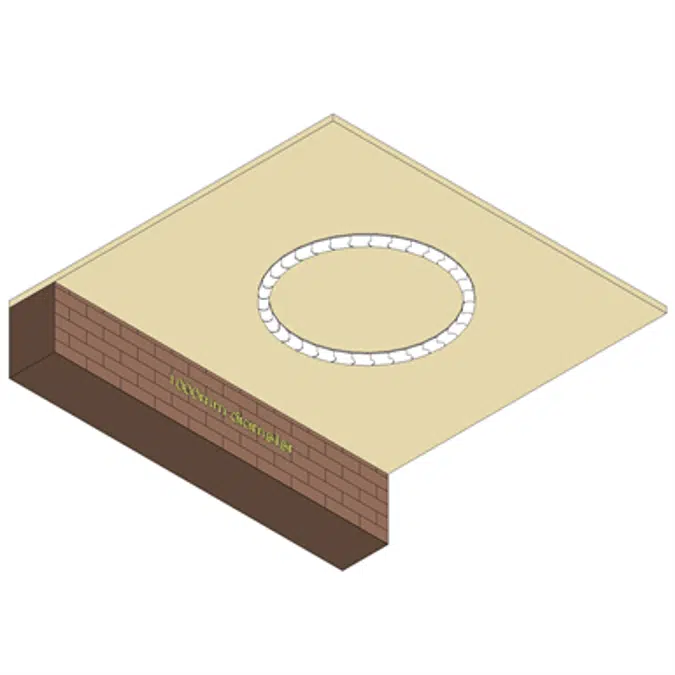

Wiggle LED Circle Ceiling and wall 4000K D1000 mm

Wiggle can be applied as a surface-mounted ceiling or wall luminaire and integrated flexibly into the architecture thanks to a series of individual modular elements that can be combined and adjusted to create the required shapes, curves and forms. The length can be extended virtually endlessly. And it is you who decides what form it should take – be it a continuous line or a curve. A selection of design ideas depicted on 1 : 1 scale mounting plans provide the perfect basis to help you embark on mounting the system. Feel free to design the lighting layout as you think fit. We will not hold you back.

Voce di capitolato

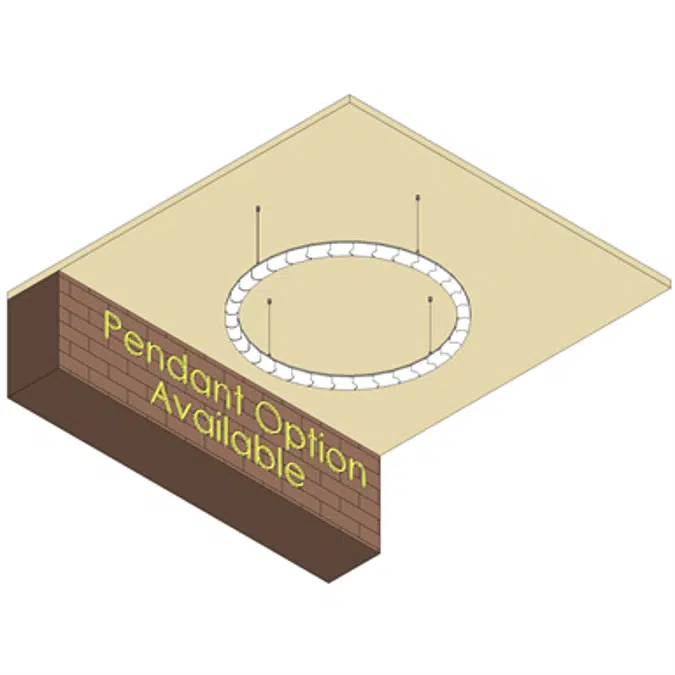

FEATURES: Flexible line of light, shape can be defined on site – lines, curves or circles; Can be adapted on site to align with the architecture; Can be formed to create a unique luminous object; Different lengths can be combined: 1.5 m or multiples of 1.5 m; Individual luminaires are mounted in continuous rows to create limitless lengths of lines or curves; A few modular elements offer enormous design scope; We can provide you with a selection of design ideas depicted on 1 : 1 scale mounting plans; Yet another creative row lighting system from Regent; Design by Andreas Tobler SPECIFICATIONS: Also available for pendant mounting – order wire suspension set separately; Operating unit included in delivery; Operating unit not integrated into the housing; Wiggle 1.5 m, Wiggle 3 m, Wiggle extension 3 m, Wiggle circle Ø 1 m, Wiggle circle Ø 3 m; Aluminium housing, silver; Direct-indirect light emission, omni-directional; dimmable digital DALI; Wiggle comprises 16 (32) inseparable elements which can be rotated against one another ±25° max.; All versions suitable for emergency lighting (DC-compatible) TECHNICAL DATA: System power: 48 W / 96 W / 288 W; Luminous flux of luminaire: 4000 lm / 3800 lm / 8000 lm / 7600 lm / 24000 lm / 22800 lm; Colour temperature: 4000 K / 3000 K; Colour Rendering Index: CRI >80; Maintained luminous flux: L80 (B50) 50'000h; Protection class: Protection class II; Ingress Protection (IP): IP20 FIELDS OF APPLICATION: Office & Education, Retail & Hospitality
