REGUPOL solar alu fire

REGUPOL solar alu fire – protection layer for flat roof constructions in accordance with DIN 18531 and flat roof guidelines

Material:

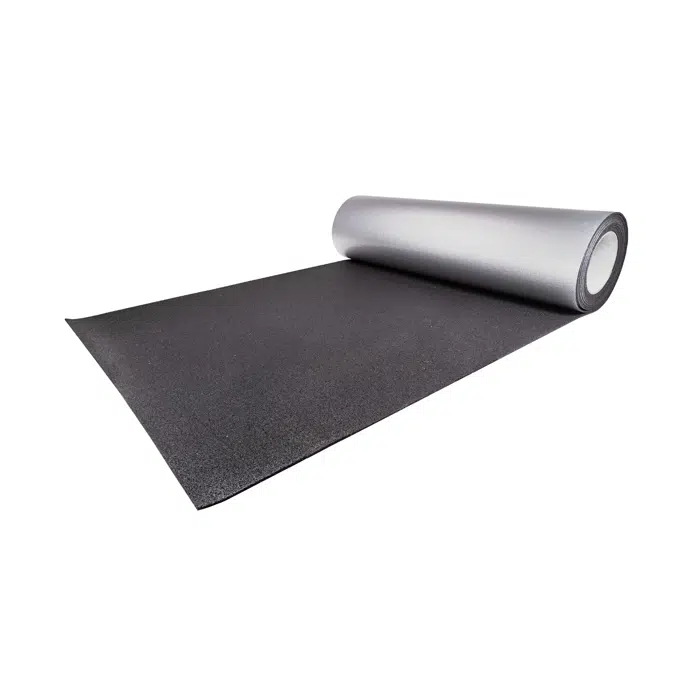

PUR-bonded rubber granulate with aluminium triplex foil on the underside

Product structure:

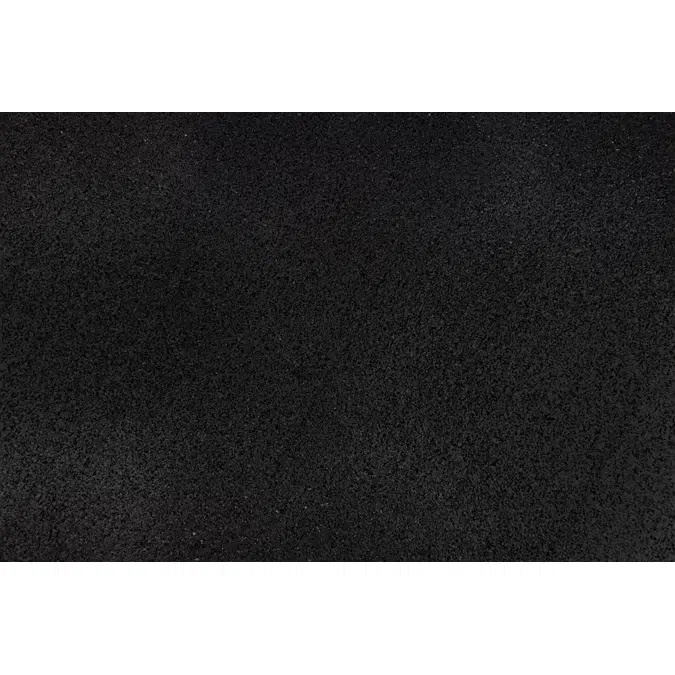

• Rubber granulate layer

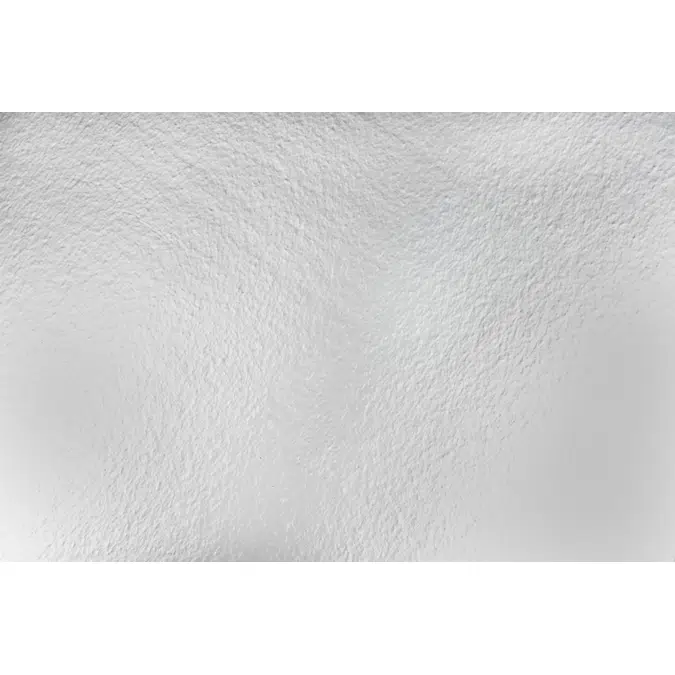

• Aluminium triplex foil on the underside
• Flame-retardant finish

Function:

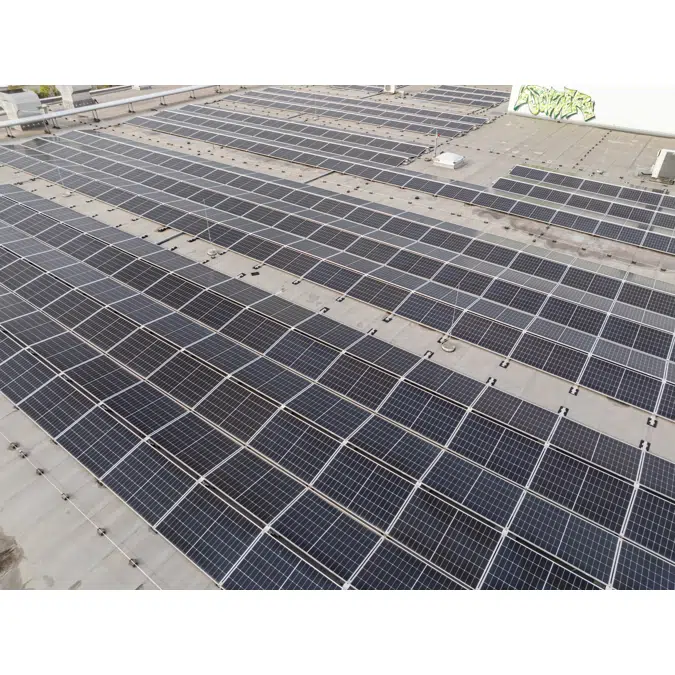

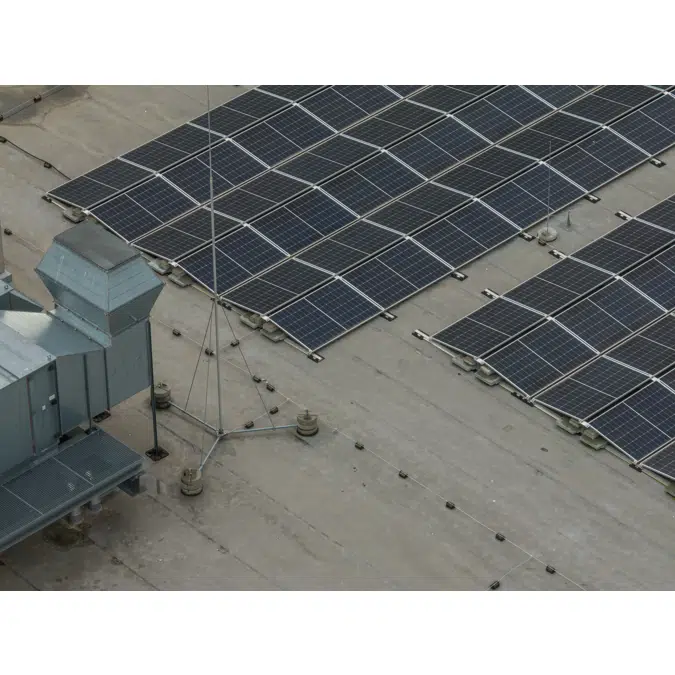

• Protection of waterproofing membranes and insulation against mechanical and thermal impact under photovoltaic systems
• Prevention of plasticiser migration between non rubber-compatible waterproofing membranes and the protection layer

Fire performance:

• General Building Authority Test Certificate P-20150703
• Classified as BROOF (t1) according to DIN EN 13501-5
• Tested according to DIN CEN/TS 1187
• Classified as “hard roofing”

Properties:

• Pressure-resistant
• Permanently elastic
• Height-compensating
• Vapour-permeable
• Rot-proof
• Resistant to microorganisms, ageing and temperature
• Largely resistant to acids and alkalis
• Antistatic according to EN 1815

Compatibility:

• Compatible with waterproofing systems

Installation:

• Simple and efficient installation
• Thicknesses and dimensions depending on the substructure or mounting system

Standards:

• DIN 18531
• DIN EN 13501-5
• DIN CEN/TS 1187
