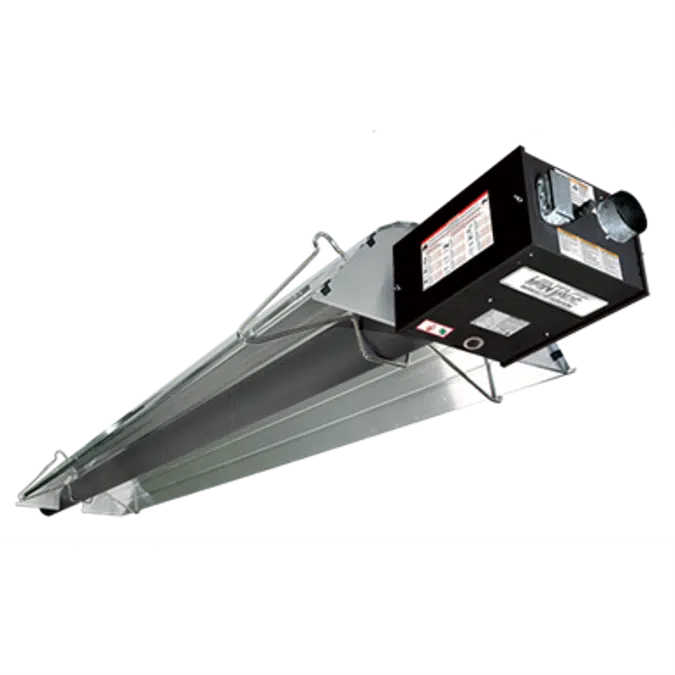

VANTAGE® CTH2V-Series Premium Infrared Tube Heater

ROBERTS GORDON® VANTAGE® CTH2V-Series infrared tube heater sets the standard for single stage unitary heaters. Since introducing our first unitary heater over 40 years ago, ROBERTS GORDON® has continued to refine our products by offering energy efficient heaters that exceed user's expectations. The CTH2V-Series are premium quality unitary heaters built for reliable long-lasting performance in industrial or commercial applications. Additionally, setting ROBERTS GORDON® apart from all others, a three year limited warranty is included with this and every ROBERTS GORDON® infrared tube heater.

The CTH2V-Series heater features a sealed burner design with an enclosed combustion blower. An internal partition separates the combustion air from the electrical compartment to minimize the controls exposure to dirt and moisture. Direct spark ignition provides a low amp draw to allow more CTH2V heaters to be tied into a single circuit. For ease of installation, an external low voltage thermostat connection is located on the rear of the heater and includes an extra terminal that will power a low voltage thermostat. Other notable features include: External LED "burner on" light, ignition module diagnostic light for ease of troubleshooting, external flame viewer window.

Voce di capitolato

Input (Btu/h) * (1000): 40, 60, 80, 100, 125, 150, 175
Clearances to Combustibles (Clearances to Combustibles applies to heater hanging horizontally. Dimension listed for distance below heater.): 53in - 82in / 4.4ft - 6.8ft
Fuel Type: Natural Gas or LPG Propane
Heat Exchanger Tubing: 10ft sections, 4" dia., 16 gauge, first ten feet ALUMI-THERM® steel tubing / Remaining Heat-Treated Aluminized Steel Tubing or Hot Rolled Steel
Reflector and End Caps: .024 Aluminum (Optional- .024 Stainless Steel Type 304)
Control System: Fully Automatic, Three-Try, 100% Shut-off, Direct Spark Electronic Ignition Control, LED Burner Status Light
Certification: ANSI Z83.20 / CSA 2.34, 2.17, 2.20
Warranty: Three Year Limited
Gas-fired low-intensity infrared tube heaters are an extremely efficient and high comfort heating solution. Low-intensity tube heaters provide more design flexibility than any other type of infrared heater with the ability to direct heat only where needed in spot heating applications. Or designed to heat and maintain high comfort levels for an entire space, including buildings with high ceilings.
Gas-fired low intensity infrared tube heaters are ideal for applications such as: loading docks (dock doors), auto/vehicle repair shops, warehouses, distribution centers, manufacturing, airplane hangars, high heat-loss areas, greenhouses (e.g. flowers, cannabis, etc...), firehouses, outdoor patios (hospitality), chicken houses, hog houses, horse barns, military, and more!

Specifiche tecniche

Rif. Unicorobertsgordon-vantageCTH2Vstraight
Famiglia di prodottoCommercial and Industrial Infrared Heating System
Gruppo di famigliaVANTAGE® CTH2V
TipoOggetto (oggetto singolo)
Data di pubblicazione2018-10-11
Numero di versione1

Links

Link al Prodottohttp://www.robertsgordon.com/vantage-cth2v
Istruzioni di installazionehttp://www.rg-cloud.com/RG/manuals/131200NA-CTH2V-IOS-Manual-RevC.pdf
Descrizione Tecnicahttp://www.rg-cloud.com/RG/techspecs/CTH2VSNA-RevB.pdf

Relativo a

Materiale principaleAcciaio
Materiale secondarioAcciaio inossidabile
Progettato inStati Uniti
Prodotto inStati Uniti

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Riscaldatori e radiatori
Codice Uniclass 2015Pr_70_60_36_72
Descrizione Uniclass 2015Radiant tube heaters
Codice CSI MasterFormat 201423 55 23
Titolo CSI MasterFormat 2014Gas-Fired Radiant Heaters
Numero OmniClass23-33 15 17 13
Titolo OmniClassFuel Fired HVAC Radiant Heaters
