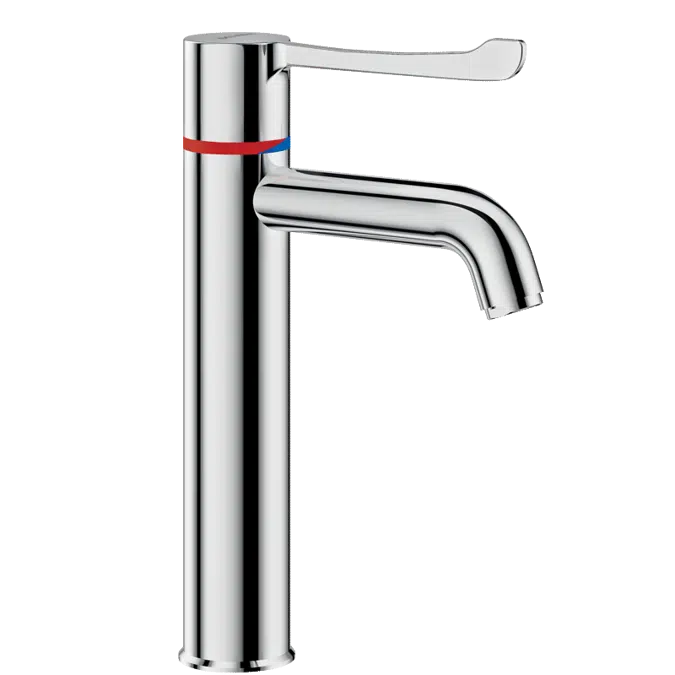

H96201BEL SECURITHERM thermostatic sink mixer
H96201BEL SECURITHERM thermostatic sink mixer
    DELABIE

    H96201BEL SECURITHERM thermostatic sink mixer

    Deck-mounted SECURITHERM thermostatic sink mixer. Thermostatic sequential mixer: opens and closes with cold water. Single hole mixer with curved spout H. 160mm L. 140mm with hygienic flow straightener for no impurity retention and thermal shock-resistant. Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails. Securitouch thermal insulation prevents burns. No risk of cross flow between hot and cold water. No non-return valves on the inlets. Scale-resistant sequential thermostatic cartridge for single lever control of flow rate and temperature. Temperature can be adjusted from cold water up to 40°C with temperature limiter set at 40°C. Thermal or chemical shocks are possible. Body and spout with smooth interiors and low water volume. Flow rate regulated at 9 lpm. No manual contact thanks to Hygiene control lever L. 146mm. No pop-up waste. F3/8" PEX flexibles with filters and non-return valve on the CW inlet.Reinforced fixing via 2 stainless steel rods. Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics. Suitable for people with reduced mobility. 30-year warranty.
    기술 사양
    • 특징 참조H96201BEL
    • 제품군Sanitary
    • 제품분류Sink mixer
    • 유형개체 (단일 개체)
    • 게시일2021-12-02
    • 에디션 넘버1
    • 높이(mm)273
    • 너비(mm)50
    • 깊이(mm)178
    관련성
    • 주 재료놋쇠
    • 설계국가프랑스
    • 제조국가프랑스
    • 순 중량(Kg)1831
    분류
    • BIMobject 카테고리위생 - 수도꼭지
    • IFC 분류위생 터미널
    • UNSPSC 이름Sanitary ware
    • UNSPSC 코드301815
    • Uniclass 2015 코드Pr_40_20
    • Uniclass 2015 설명Sanitary fittings and accessories
    • CSI 마스터 형식 2014 코드41 14 33
    • CSI 마스터 형식 2014 제목Mixers
    • OmniClass 번호23-31 11 19 11
    • OmniClass 제목Thermostatically Controlled Faucet Mixing Valves

    지역 가용성

    유럽
    네덜란드
    뤽상부르
    벨기에
