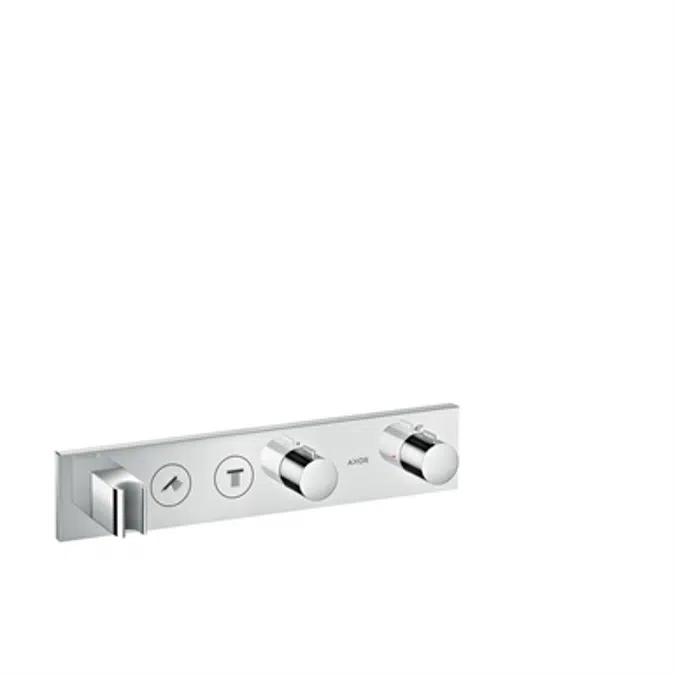

AXOR therm.modul Select FS 2 funct.chrome

Specificatie

Specificatie

• Surfaces: - 18355000 Chrome - 18355020 Polished Chrome - 18355130 Polished Bronze - 18355140 Brushed Bronze - 18355250 Brushed Gold Optic - 18355260 Brushed Chrome - 18355300 Polished Red Gold - 18355310 Brushed Red Gold - 18355330 Polished Black Chrome - 18355340 Brushed Black Chrome - 18355350 Satin Black - 18355800 Stainless Steel Optic - 18355820 Brushed Nickel - 18355830 Polished Nickel - 18355930 Polished Brass - 18355950 Brushed Brass - 18355990 Polished Gold Optic Specification: • consists of: Thermostatic module, shower holder • 2 functions • depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function • Select push-button on/off control for 2 outlets • simultaneous use of several outlets • maximum flow rate at 3 bar: 26 l/min • thermostat cartridge, Start/stop valve to operate the functions • safety lock at 40 °C • temperature limitation adjustable • hose nut: for shower hoses with conical or cylindrical nut on both sides • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar • Thermostat is delivered with buttons Rain large and hand shower

Technische specificatie

Technische specificatie

• Unieke ref.18355000
• ProductfamilieAXOR ShowerSolutions
• ProductgroepShower thermostat
• TypeObject (enkelvoudig object)
• Publicatiedatum2018-01-15
• Editienummer1
• Hoogte (mm)90
• Breedte (mm)456
• Diepte (mm)85

Links

Links

• Product-urlhttps://www.axor-design.com/articledetail--18355000
• Technische beschrijvinghttps://www.axor-design.com/de-de/articledetail--18355000.html

Gerelateerd

Gerelateerd

• Ontworpen inDuitsland
• Gefabriceerd inDuitsland
• Nettogewicht (kg)4

Classificatie

Classificatie

• Categorie BIMobjectSanitair - Douches
• IFC-classificatieSanitairaansluiting
• ETIM-codeEC011329
• ETIM-naamShower mixing tap
• UNSPSC-naamShowers
• UNSPSC-code30181503
• Uniclass 2015-codePr_40_20_87_76
• Uniclass 2015-beschrijvingShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitelResidential Showers
• OmniClass-nummer23-31 17 00
• OmniClass-titelShowers
• CSI UniFormat II-codeD2010
• CSI UniFormat II-titelPlumbing Fixtures
