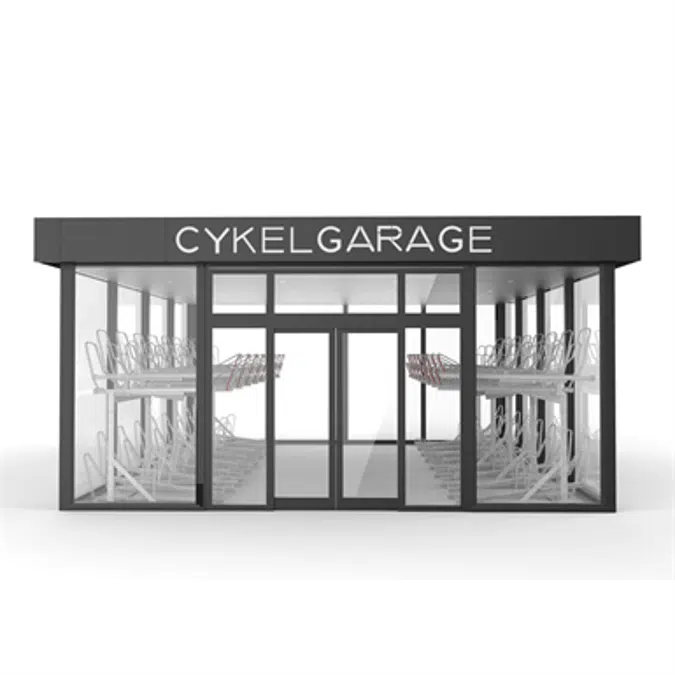

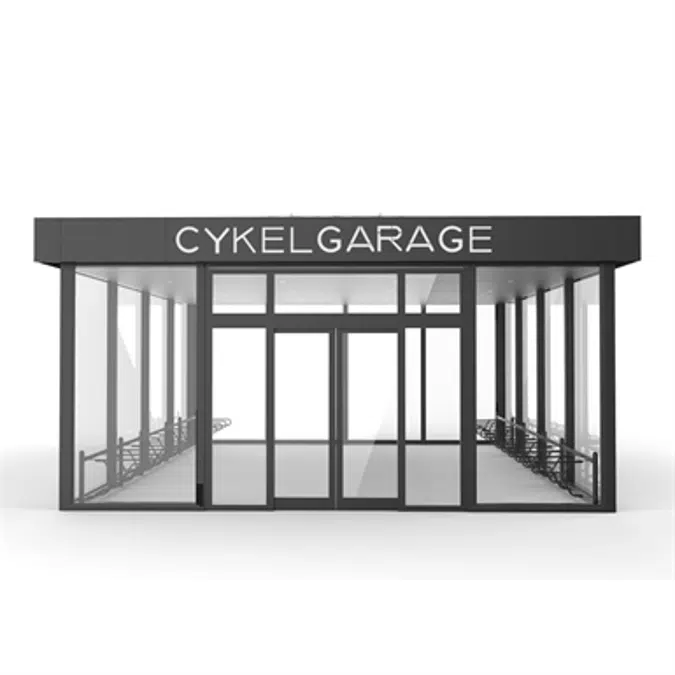

    LINK Modular Bicycle Garage 6200 mm

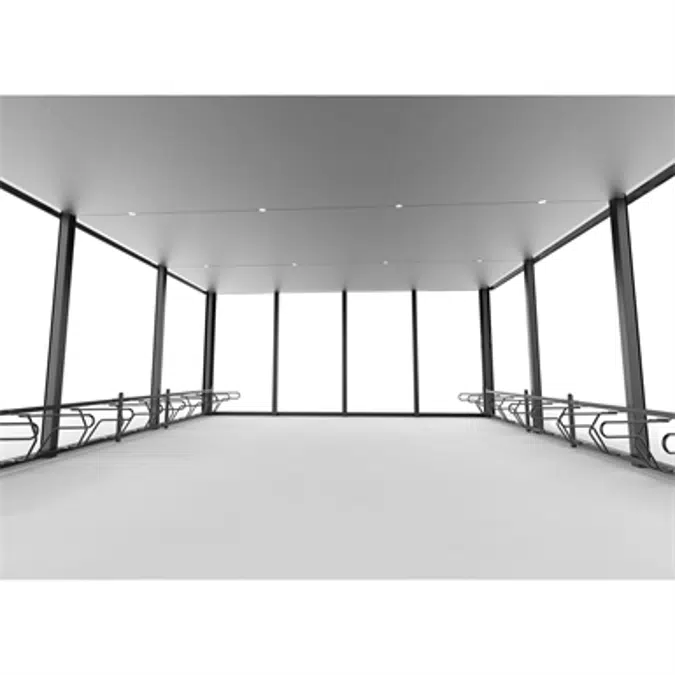

    LINK Bicycle Garage stands out for its functionality and ease of use for the cyclist. LINK is a Swedish made bicycle garage that builds on the principle of Cyklos previous cycle shelters, with good accessibility and no inner posts or other obstacles inside the construction.

    This version has a fixed width of 6200 mm and a modular length, so the garage can be extended in 2 meter steps to match the number of bike spaces needed on site. Glass facades, strong interior lighting, and automatic sliding doors combined with a robust and intuitive bicycle rack such as DELTA or the two tier rack OPTIMA or VENTURA create fast and commuter friendly bike parking.

    Opis
    • Cyklos LINK width 6,2m (modular system)

      The width is fixed at 6200 mm. The length is modular and adjustable: it starts at 6 m per gable and can be extended in 2 m modules (1.6 m modules in areas with heavy snow during the winter season) to fit the required capacity.

      Doors:

      Delivered with one or two automatic sliding doors.

      Roof:

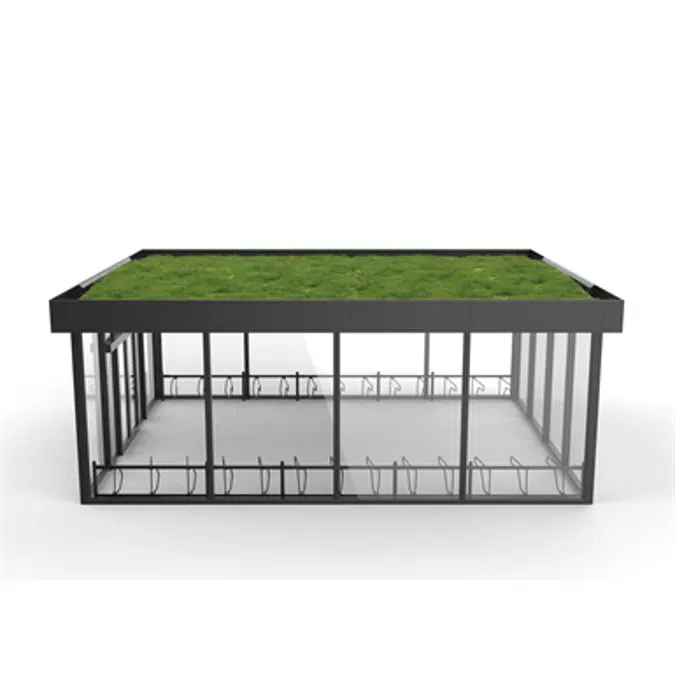

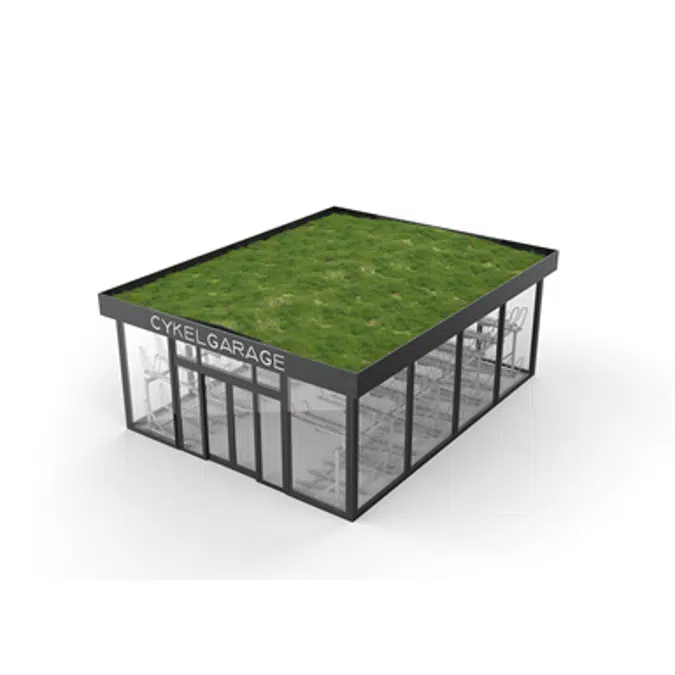

      Delivered prepared for Sedum, or as solid polycarbonate (PC).

      Foundation:

      Own concrete foundation.

      Material alternatives:

      Hot-dip galvanized

      Hot-dip galvanized + powder coated in any RAL color. Standard color black RAL 9005. Poles and roof frame in steel.

    Specyfikacja techniczna
    • Nr referencyjnyLINK-bicycle-garage-6200x12000-mm
    • Rodzina produktuBicycle parking
    • Grupa produktuBicycle garage
    • TypObiekt (jeden obiekt)
    • Data publikacji2026-06-30
    • Numer edycji1
    • Wysokość (mm)3340
    • Szerokość (mm)6000
    • Głębokość (mm)8000
    Dodatkowe informacje
    • Materiał głównyStal
    • Materiał dodatkowySzkło
    • Zaprojektowano wSzwecja
    • Wyprodukowano wSzwecja
    Klasyfikacja
    • Kategoria BIMobjectArchitektura krajobrazu - Bike Racks & Shelters
    • Klasyfikacja IFCObiekt
    • CSI MasterFormat 2014 Code12 93 13
    • CSI MasterFormat 2014 TitleBicycle Racks
    • OmniClass Number23-11 29 11 13
    • OmniClass TitleBicycle Shelters

    Dostępny w krajach:

    Europa
    Finlandia
    Norwegia
    Szwecja
    Wielka Brytania
