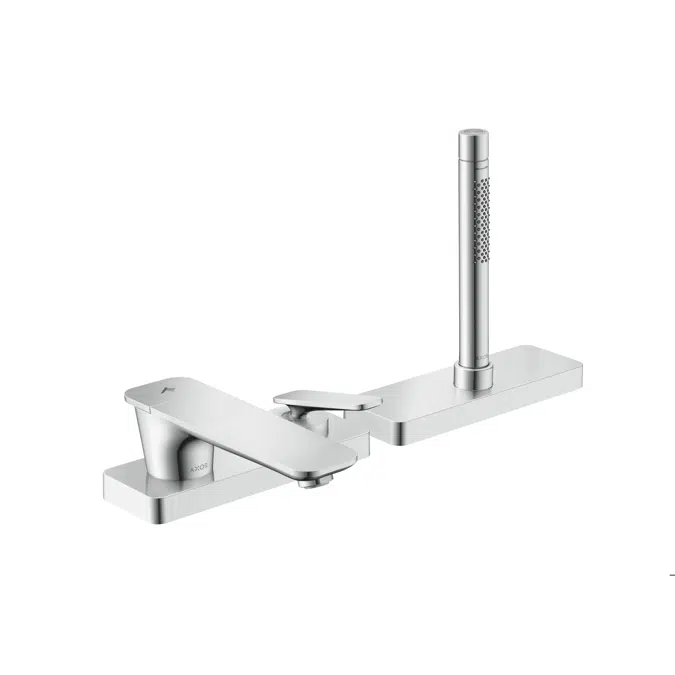

49430USA AXOR Citterio C 3-hole bath mixer with sBox
49430USA AXOR Citterio C 3-hole bath mixer with sBox
    AXOR

    49430USA AXOR Citterio C 3-hole bath mixer with sBox

    Traduzido por Google,
    Misturador para banheira AXOR Citterio C com 3 furos com sBox
    Especificação
    • Surfaces:

      - 49430001 Chrome

      - 49430141 Brushed Bronze

      - 49430251 Brushed Gold Optic

      - 49430331 Polished Black Chrome

      - 49430341 Brushed Black Chrome

      - 49430671 Matt Black

      - 49430801 Stainless Steel Optic

      - 49430821 Brushed Nickel

      - 49430831 Polished Nickel

      - 49430951 Brushed Brass

      - 49430991 Polished Gold Optic

      Specification:

      • consists of: 3-hole rim mounted single lever bath mixer, baton hand shower, shower holder

      • 2 functions

      • projection: 155 mm

      • spray type mixer: normal spray

      • spray type hand shower: Rain, Mono

      • maximum pull-out length of hand shower: 1,40 m

      • sBox for quiet, smooth and protected hose guidance

      • maximum flow rate at 3 bar: 20 l/min

      • flow rate of hand shower at 3 bar: 6,3 l/min

      • ceramic cartridge

      • temperature limitation adjustable

      • non-return valve

      • suitable for continous flow water heaters

      • connection dimension: DN15

      • connection type: basic set

      • installation on bath rim

      • min. operating pressure: 1 bar

      • max. operating pressure: 10 bar

      • removable for service at any time

      • no additional maintenance opening required

    Especificações técnicas
    • Ref.ª única49430USA
    • Familia de productoBath mixer
    • Grupo de produtosAXOR Citterio C
    • TipoObject (objeto único)
    • Data de publicação2024-05-23
    • Número de edição1

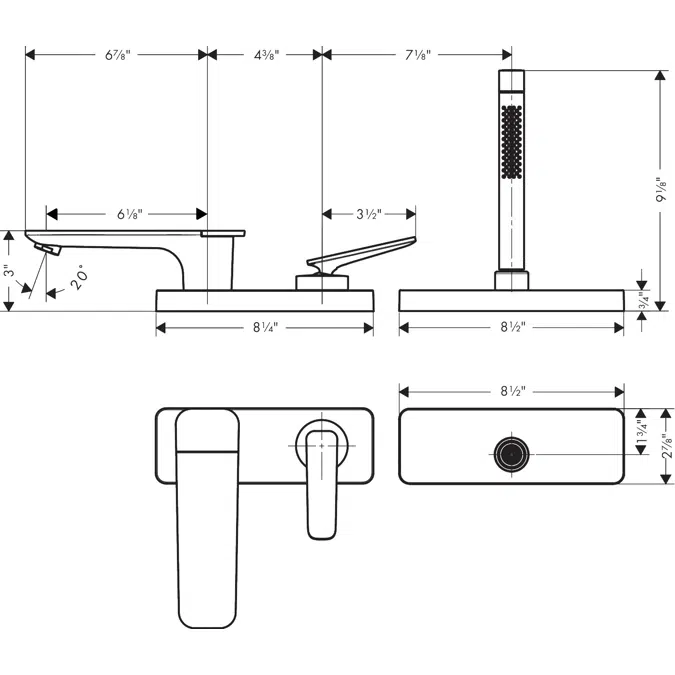

    • Altura (polegadas)9.1
    • Largura (polegadas)22.6
    • Profundidade (polegadas)8.4
    Relacionado
    • Concebido emGermany
    • Fabricado emGermany
    • Peso líquido (Lbs)11.39
    Classificação
    • Categoria BIMobjectSanitários - Torneiras e misturadores
    • Classificação IFCVálvula
    • Código ETIMEC010862
    • Nome ETIMBath mixing tap
    • Nome UNSPSCSanitary ware
    • Código UNSPSC301815
    • Uniclass 2015 CódigoPr_40_20_87
    • Uniclass 2015 DescriçãoTaps and water supply outlet fittings
    • Código CSI MasterFormat 201422 41 39
    • Título CSI MasterFormat 2014Residential Faucets, Supplies, and Trim
    • Número OmniClass23-31 11 00
    • Título OmniclassFaucets
    • Código CSI UniFormat IID2010
    • Título CSI UniFormat IIPlumbing Fixtures

    Disponibilidade da região

    América do Norte
    Canada
    United States
