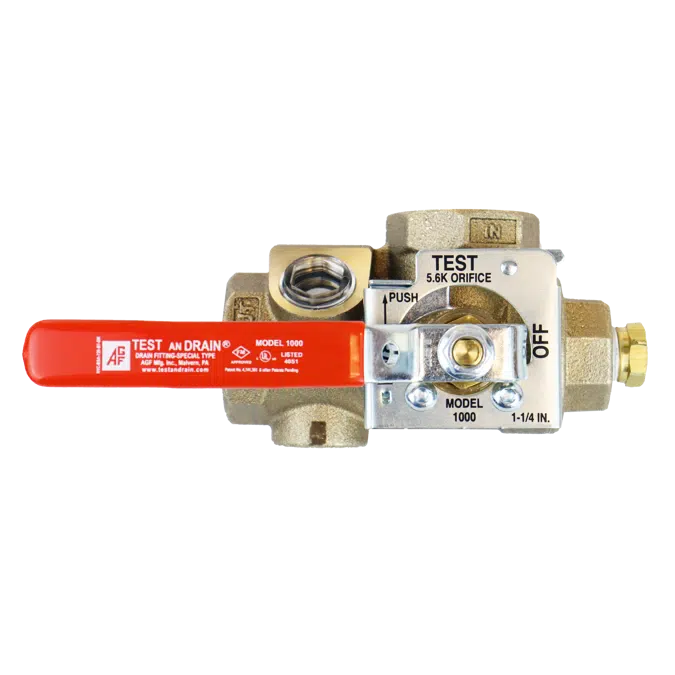

Model 1000 TESTanDRAIN® - Single Handle Ball Valve

Lightweight and compact, the Model 1000 TESTanDRAIN® is a 300 PSI rated single-handle ball valve that was specifically designed to provide both the test function and the express drain function required for a wet fire sprinkler system. It features a tamper-resistant test orifice, integral tamper-resistant sight glasses, and a tapped port for system access. The Model 1000 TESTanDRAIN® meets all the requirements of NFPA-13, NFPA-13R, and NFPA-13D. Available in 3/4", 1", 1-1/4", 1-1/2", and 2" sizes in both NPT and BSPT with all specifiable orifice sizes: 3/8" (2.8K), 7/16" (4.2K), 1/2" (5.6K), 17/32" (8.0K), 5/8" (11.2K, ELO), 3/4" (14.0K, ESFR), and K25.

• The AGF Manufacturing Inc. Model 1000 TESTanDRAIN® provides both the test function and the express drain function for a wet fire sprinkler system.
• The Model 1000 complies with the requirements of NFPA-13, NFPA-13R, and NFPA-13D.
• The Model 1000 TESTanDRAIN® is a compact single-handle ball valve that includes a tamper-resistant test orifice and integral tamper-resistant sight glasses and is 300 PSI rated.
• Available in a full range of sizes from ¾" to 2" NPT and BSPT, with all specifiable orifice sizes ³/8" (2.8K), 7/16" (4.2K), ½" (5.6K), 17/32" (8.0K), 5/8" (11.2K, ELO), ¾" (14.0K, ESFR), and K25 as required by NFPA 13, 2007 Edition.
• The orifice size is noted on the indicator plate and the valve features a tapped and plugged port for system access.
• A locking kit is available and can be ordered with the valve to provide vandal resistance or prevent unintentional alarm activation.
• Repair kits including (1) adapter gasket, (1) ball, (2) valve seats, (1) stem packing, and (1) stem washer are available for all TESTanDRAIN® valves. Valve and orifice size must be specified when ordering.
• Made in the USA.
