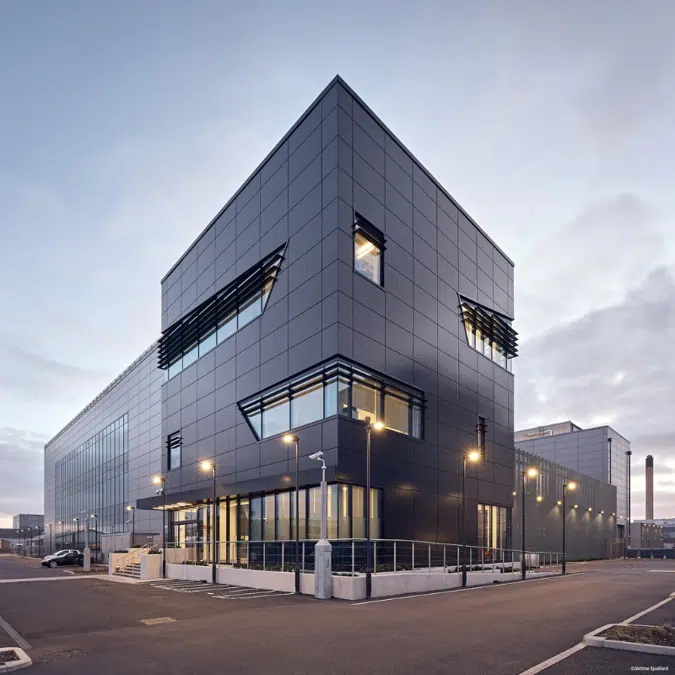

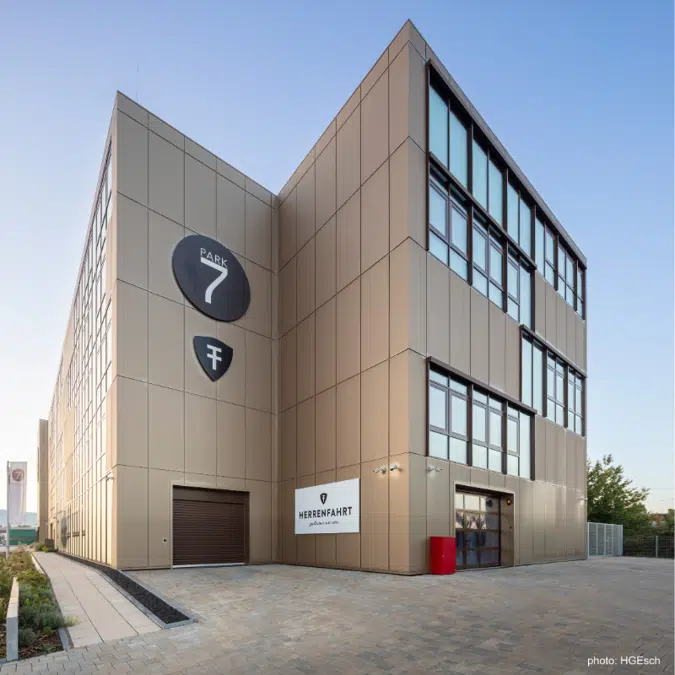

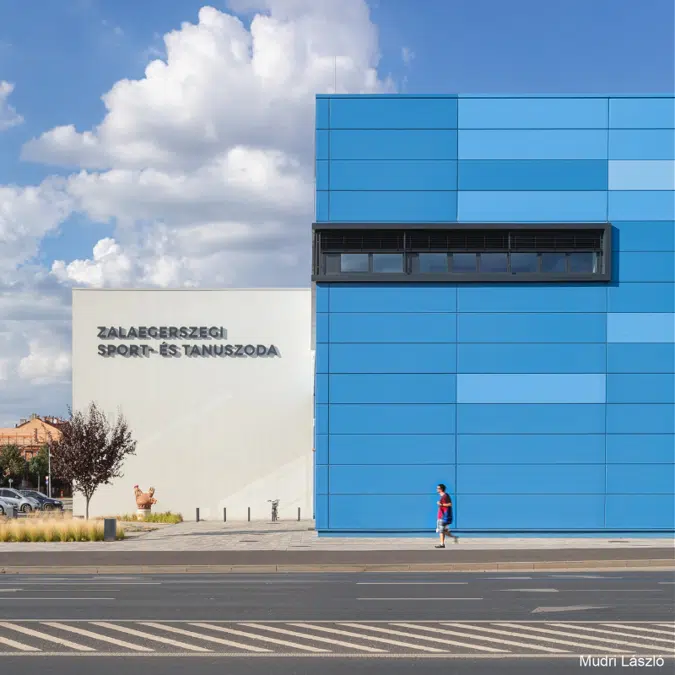

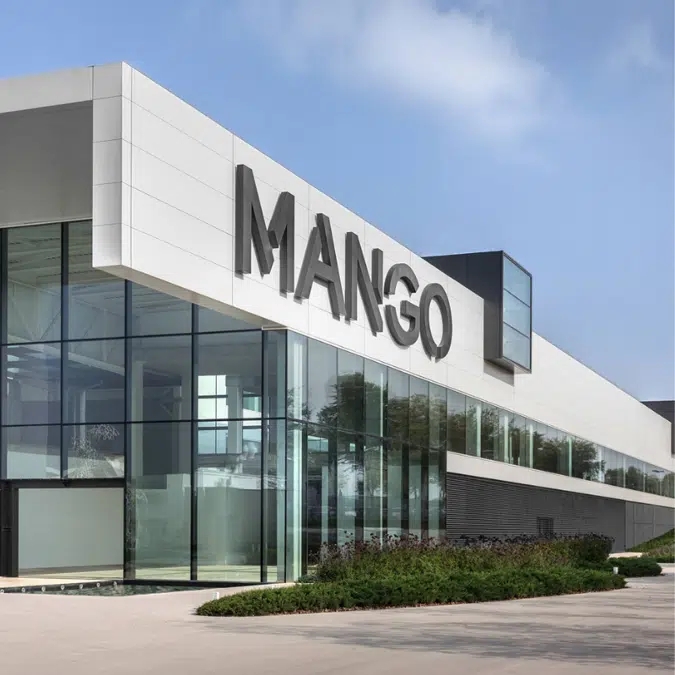

Qbiss One Sandwich Element

Qbiss One is a prefabricated modular metal wall and is a much higher quality construction solution compared to conventional built-up wall systems (structural wall and ventilated facade). Qbiss One brings aesthetics, form, function and an enhanced return on investment (ROI) into one perfect solution.

Qbiss One a design and technological breakthrough. A world class-engineered, prefabricated architectural metal wall that offers a true alternative to conventional built-up systems.

Specifikim

Name
Qbiss One facade eleemnt

Joint type
hidden, high aesthetics

Description
Fire-resistant sandwich panel wall system for external walls, partitions and ceilings with a non-combustible mineral wool core.

Product name	Qbiss One
Manufacturer	Trimo
Use	External walls, internal walls and ceilings
Panel thickness (mm)	80 - 250
Panel width (mm)	600 - 1200
Panel length (mm)	500 - 6500
Insulation core	Mineral wool, Non-combustible, Class A1
Insulation core density	90 - 120 kg/m3
Max. achievable fire resistance (EN 14509)	EI 45 - EI 120
Reaction to fire	A2-s1, d0
Thermal transmittance (W/m2 K)	0.50 - 0.15
Coating	PVDF or PUR/PA
External facing - profile	G
Internal facing - profile	G, S, V, V2, M, M3
Water permeability (Pa - wall)	Class A (1200 Pa)
*Air permeability (C (m3 /Pas);n)**	C = 0.0046; n = 0.970
Water vapour permeability	Impermeable
Airborne sound insulation: Rw(C:Ctr)	up to 31 (-2;-4) (dB)
