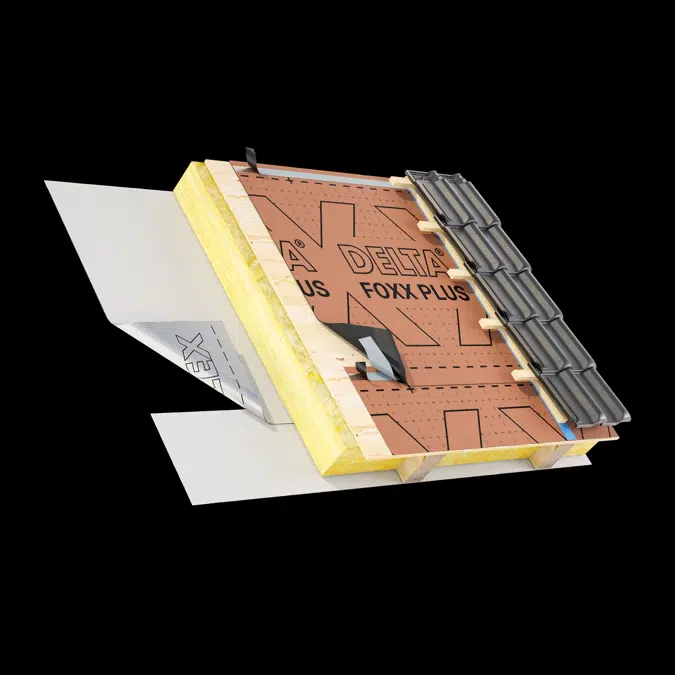

Pitched roof with DELTA®-FOXX PLUS (U-value = 0.172 W / m² • K)

Pitched roof with DELTA®-FOXX PLUS (U-value = 0,172 W / m² • K)

outside

Low-pitch roof tiles (standard slope: 22°), approx. 50 mm

Roof and counter battens (each 50/30 mm, distance between the counter battens: approx. 33 cm), 60 mm

DELTA®-SCHAUM-BAND SB 60 as perforation protection between counter battens and DELTA®-FOXX PLUS, approx. 3 mm

DELTA®-FOXX PLUS as a vapor-permeable sheathing membrane with integrated self-adhesive edge (sd-value: approx. 0,08 m), approx. 0.9 mm

Sheathing (μ=20/50), 24 mm

Mineral wool insulation 032 / rafter, 8/22 cm (e = 68 cm), 220 mm

DELTA®-REFLEX as air and vapor barrier (sd-value: approx. 150 m), approx. 0.25 mm

Substructure, wooden lath (24/48 mm) / air, 24 mm

Plaster board (μ=4/10), 12.5 mm

inside
