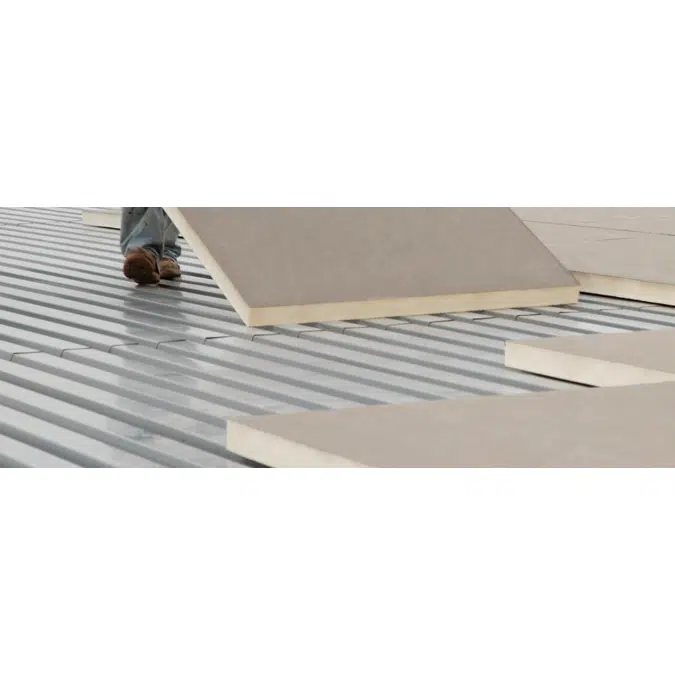

SecurShield HD Composite Polyiso Insulation

SecurShield HD Composite is a unique composite insulation panel comprised of ½" high-density polyiso cover board laminated to SecurShield rigid polyiso roof insulation. This product is ideal for commercial roofing projects that require high thermal efficiency combined with maximum durability in both new construction and retrofit applications. SecurShield HD Composite is approved for use in assemblies meeting FM's Very Severe Hail (VSH) Classification.

Features and Benefits

SecurShield HD Composite is produced on-line creating a single component solution that eliminates the need for cover boards, reduces inter-ply adhesives and saves labor»Achieves Factory Mutual's (FM) Very Severe Hail (VSH) rating
Superior wind uplift performance: Achieves an FM 1-90 approval rating with only 6 fasteners
FM uplift approval ratings up to 300psf over steel deck

Özellikler

Panel Characteristics
- Panel Sizes: 47.5" x 95.5" (1206 mm x 2425 mm) and 47.5" x 47.5" (1206 mm x 1206 mm)
- Panel Thickness: 1.5, 1.8, 2.0, 2.5, 3.0, 3.5, 3.6, 4.0
Code and Compliances
- Coverboard-SecurShield HD: ASTM C 1289 Type II, Class 4, Grade 1 (109 psi max)
- Base Insulation-SecurShield: ASTM C 1289 Type II, Class 2, Grade 2 (20 psi)
- International Building Code (IBC) Chapter 26
- UL Standard 790, 263 and 1256: Component of Class A Roof Systems (refer to UL Roof Materials' system directory)
- FM Standards 4450/4470: Class 1 approval for steel roof-deck constructions (refer to FM RoofNav)
- Coverboard-SecurShield HD: CAN/ULC S704, Type 3, Class 2
- Base Insulation-SecurShield: CAN/ULC S704 Type 2, Class 2
- Florida Building Code Approval
- Miami-Dade County Product Control Approved
Carlisle SynTec Systems’ focus has always been innovation - Innovation to solve problems, improve performance, reduce labor, and above all, improve sustainability. Carlisle is committed to driving sustainable and efficient processes in the design and manufacturing of our products.
- Highest R-value per inch providing maximum energy savings and CO2 emissions avoidance
- PIMA Quality Mark(CM) Certification Program participant for Long-Term Thermal R-values (LTTR)
- CDPH Compliant for maximum allowable concentrations of target VOCs
- Carlisle Polyiso Roof Insulation and HD Cover Board EPDs available
- Contributes to LEED and Green Globes certification requirements
- End-of-life jobsite disposal options are available for re-use/re-purposing
- HFC- and HCFC-free formulation

Teknik özellikler

Benzersiz ref.securshield-hd-composite-polyiso-insulation
Ürün ailesiRoofing-Products
Ürün grubuInsulation
TipObje (Tekil Nesne)
Yayınlanma tarihi2026-08-27
Baskı numarası1

Bağlantılar

İlgili

Ana malzemePolyisocyanorate PIR

Sınıflandırma

BIMobject kategorisiİnşaat Malzemeleri - Yalıtım
IFC sınıflandırmasıÇatı
ETIM KoduEC000406
ETIM AdıThermal insulation
Uniclass 2015 koduPr_25_71_63_66
Uniclass 2015 açıklamasıPolyisocyanurate (PIR) foam boards
CSI MasterFormat 2014 kodu07 21 13.13
CSI MasterFormat 2014 başlığıFoam Board Insulation
OmniClass numarası23-13 25 19 11
OmniClass başlığıSlab and Board Thermal Insulation
