F5E Electronic WC flush F5EF4005

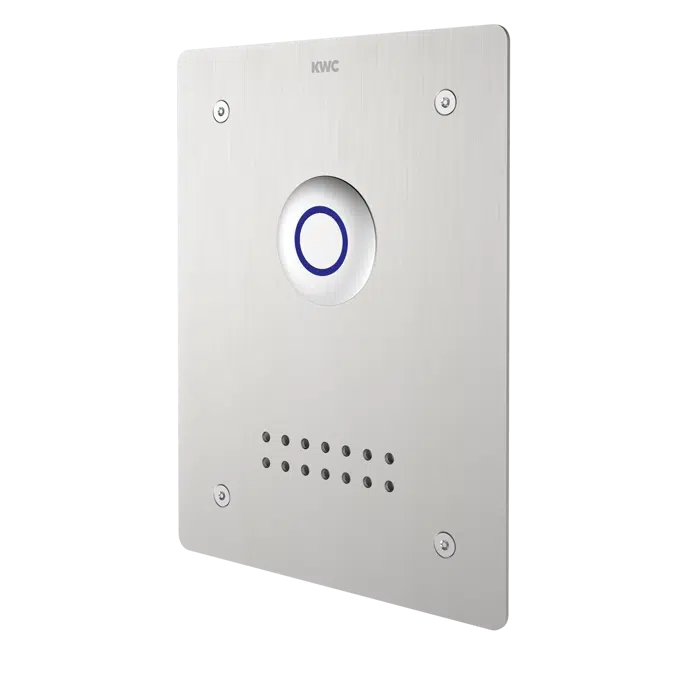

F5E - A3000 open WC flush valve DN 20 as finished installation kit for in-wall installation in basic installation kit, electronically controlled. Especially suitable for facilities at risk of vandalism. With waterproof electronic module with additional input for sensors to be provided by the client, maximum distance to the electronic module 5 m, solenoid flush valve including enclosed throttle insert for reducing flush volume, waterproof electric T-junction for connection to system cable, stainless steel cover plate 190 x 245 x 2 mm with ventilation holes, mounting from the front with safety screws, including piezo push-button. Activated hygiene flushing 24 hours after the last activity. With facility for parameterization, cleaning deactivation and communication via ECC2 function controller, 24 V DC.

Özellikler

functional principle	electronic self-closing
type of flushing fitting	WC flush valve
type of mounting	in-wall installation with box
type of sensor	piezo-electronic sensor

Teknik özellikler

Benzersiz ref.2030068203
Ürün ailesiFlushing systems
Ürün grubuElectronic WC flushing systems
TipObje (Tekil Nesne)
Yayınlanma tarihi2025-06-11
Baskı numarası1

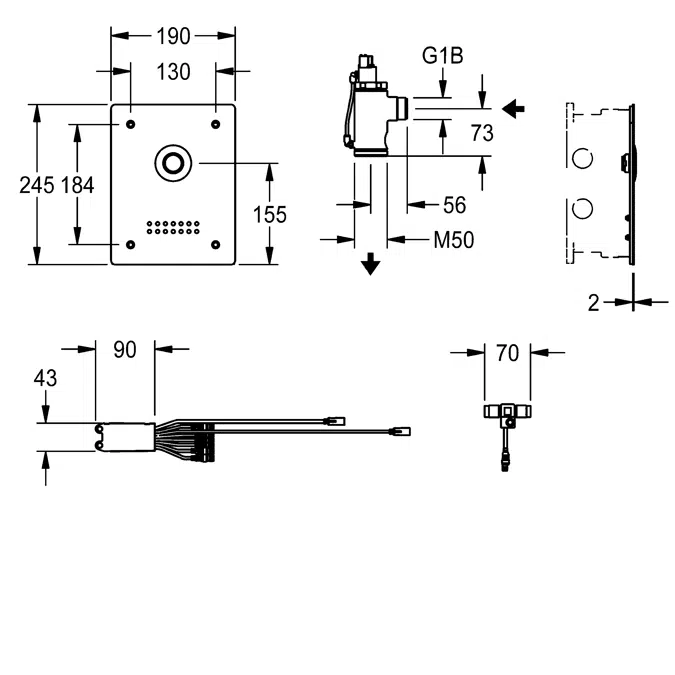

Yükseklik (mm)245
Genişlik (mm)190

Bağlantılar

Ürün URL’sihttps://kwc-professional.com/en/and-nbsp_p2030068203

İlgili

Ana malzemePaslanmaz Çelik
İkincil malzemePirinç
Tasarım yeriAlmanya
Üretim yeriAlmanya
Ağırlık net (Kg)2.2

Sınıflandırma

BIMobject kategorisiHijyenik - Banyo Kurulum Sistemleri
Uniclass 2015 koduPr_75_50_46_31
Uniclass 2015 açıklamasıFlush control devices
