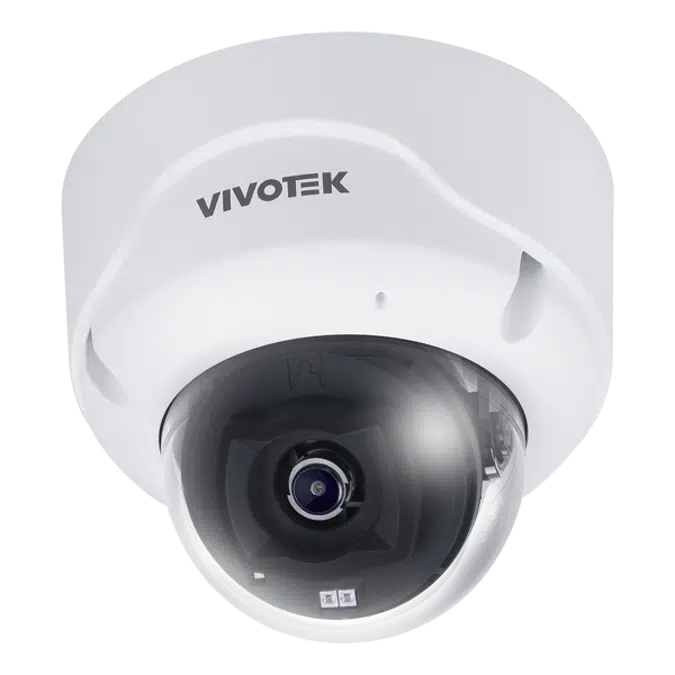

BIM nesneleri - Ücretsiz indirin! FD9389-EHV-V3 5MP Outdoor Fixed Dome Camera

System Information
- CPU: Multimedia SoC (System-on-Chip)
- Flash: 8 GB
- RAM: 2 GB
Camera Specifications
- Image Sensor: 1/2.8" Progressive CMOS
- Max. Resolution: 2560x1920 (5MP)
- Lens Type: Fixed-focal
- Focal Length: f = 2.8 mm
- Aperture: F2.0
- Iris Type: Fixed iris
- Field of View:
  - Horizontal: 103.4°
  - Vertical: 75.3°
  - Diagonal: 135.2°
- Shutter Time: 1/5 sec. to 1/32,000 sec.
- WDR Technology: WDR Pro
- Day/Night: Yes
- Removable IR-cut filter: Yes
- Illuminators: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED*4
- Minimum Illumination:
  - Color: 0.055 lux @ F2.0
  - B/W: 0.005 lux @ F2.0
  - 0 lux with IR illumination on
- Pan Range: 350°
- Tilt Range: 80°
- Rotation Range: 350°
- Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- Storage: Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS)
- Built-in Installation Aids: Pixel calculator
Video
- Compression: H.265, H.264, MJPEG
- Maximum Frame Rate: 30 fps @ 2560x1920 (5MP)
- Maximum Streams: 3 video streams (Up to 8 configurable profiles)
- Main Stream:
  - 30fps @2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  - 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  - 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
- 2nd Stream:
  - 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  - 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  - 60 fps @ 1280x720, 640x360 (16:9)
- 3rd Stream:
  - 30fps @ 1280x960, 800x600, 640x480 (4:3)
  - 30 fps @ 1280x720, 640x360 (16:9)
  - 60 fps @ 1280x720, 640x360 (16:9)
- S/N Ratio: 55 dB
- Dynamic Range: 120 dB
- Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings:
  - General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  - Illuminators: illuminators, anti-overexposure, VCA-based Smart IR III
  - Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur)
  - Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  - Focus: zoom, focus
  - Privacy mask
  - pixel calculator
  - Scheduled profile settings
- Display Mode: HDMI output (type D; 1080p/720p @30/25fps(60/50Hz))
Audio
- Audio Capability: Two-way audio (Full duplex)*
- Compression: G.711, G.726, MPEG-2 AAC-LC
- Interface:
  - Built-in microphone
  - External microphone Input*
  - External line output*
- Effective Range: 5 meters
- * Requires AO-015 cable
Network
- Users: Live viewing for up to 10 clients
- Security: Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM)
- Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
- Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF: Profile G, S, T supported, specification available at www.onvif.org¹ 1. www.pg-securitysystems.nl www.pg-securitysystems.nl
AI Analytics
- Compute Capability: SoC with built-in hardware deep learning accelerator
- Vision Object Analytics:
  - Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
  - Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
  - Re-Search Extraction: Path Extraction
- Application:
  - Deep Learning VCA (Smart Motion Detection, Smart VCA)
  - Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter)
  - Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
  - Application available with license: Running detection, Parking Violation Detection, Restricted Zone Detection
- RealSight Engine: Smart IR III, Deblur, WDR, White Balance, Exposure Control
Solution Integration
- VADP Package: Trend Micro (Default, 3-year free trial)
- Video Motion Detection: Motion Detection (Five-window video motion detection)
Alarm and Event
- Event Trigger: Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
- Event Action: Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card
- File upload via email, HTTP, FTP/SFTP, NAS server, SD card
- * Requires AO-015 cable
General
- Connectors:
  - RJ-45 cable connector for 10/100 Mbps Network/PoE

FD9389-EHV-V3 5MP Outdoor Fixed Dome Camera
