Kaleidoscope | Playground Equipment | Sensory Play Equipment

Technical information

Equipment made of stainless steel / Aluminium eloxadized

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

For more detailed explanation of the quality characteristics see our website.

Object holder and lens made of glass, permanently elastic and therefore shock-proof mounted, rotatable in all directions with integrated braking.

Order No. 10.23100
Kaleidoscope
Floating in fluid are carefully chosen glass pieces which are otherwise only used in art glazing and whose light effects are far superior to plastic glazing.

Order No. 10.24100
Octascope
with large lens in optical quality, safety glass

Order No. 10.25000
Telescope
magnification 15 times

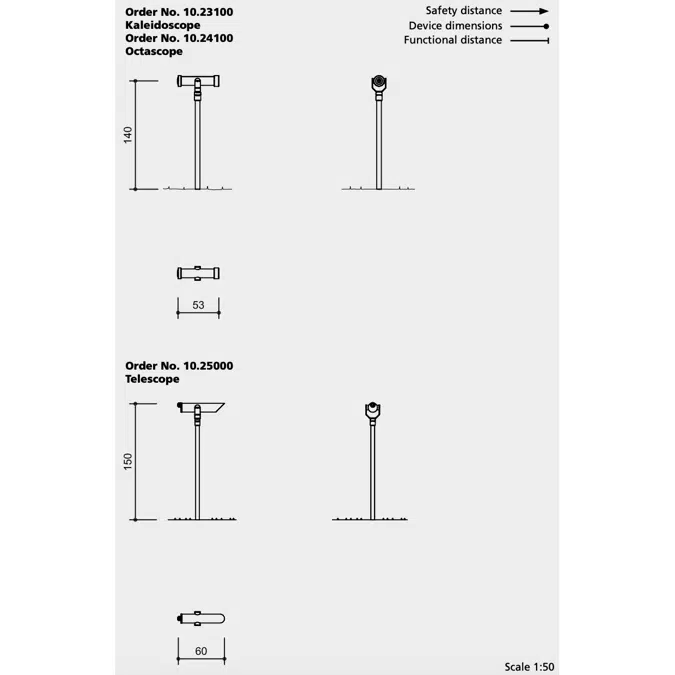

Dimensions
(small deviations possible)

Order No. 10.23100/10.24100
Kaleidoscope/Octascope
Height: 1.40 m
Length: 0.53 m
Lens diameter: 0.12 m
Weight: 30 kg

Order No. 10.25000
Telescope
Height: 1.50 m
Length: 0.60 m
Lens diameter: 0.12 m
Weight: 35 kg

Equipment also available as group equipment with four Kaleidoscope heads and illumination for inner area (Order No. 10.23300).

Installation information

Recommended space
Circle diameter 3.00 m

Foundations
1 item 40 x 40 x 40 cm
Excavation depth 60 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
Equipment also available as group equipment with four Kaleidoscope heads and illumination for inner area
(Order No. 10.23300).
