Sailing Boat with Flag | Playground Equipment | Play Vessel

Technical information

Equipment made of non-impregnated mountain larch / robinia

Peeled white
Palisades peeled white means that bark, cambium and sapwood are removed, the natural shape of the trunk is preserved and can be experienced

Bevel cut
Vertical stand posts with bevelled end grain section as constructive wood preservation measure

Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape

Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain

Universal joint
Drop-forged, hot-dip galvanised universal joint, consists of two sintered bushes, for free swinging in any direction

Profiled washer
Profiled washer for covering protruding screw heads according to standard, improved pressure distribution and protection against water. Impedes loosening the bolt

Adjustable
Adjustable two-piece bolt connection, easy to maintain, no projecting threads

Sintered bush
For all reciprocating movements we use sintered plain bearings which are self-lubricating in use and can easily be exchanged if necessary

Chains
Chains made of hot-dip galvanized steel (1.4301 / 1.4571 at extra charge) welded before galvanising, short-linked, without eyelets on the connecting parts, easy to exchange and shorten

Fittings hot-dip galvanised. Flag made of weatherproof PVC fabric.

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel
Order No. 6.03201 / 6.03211

with hot-dip galvanised stand posts

For more detailed explanation of the quality characteristics see our website.

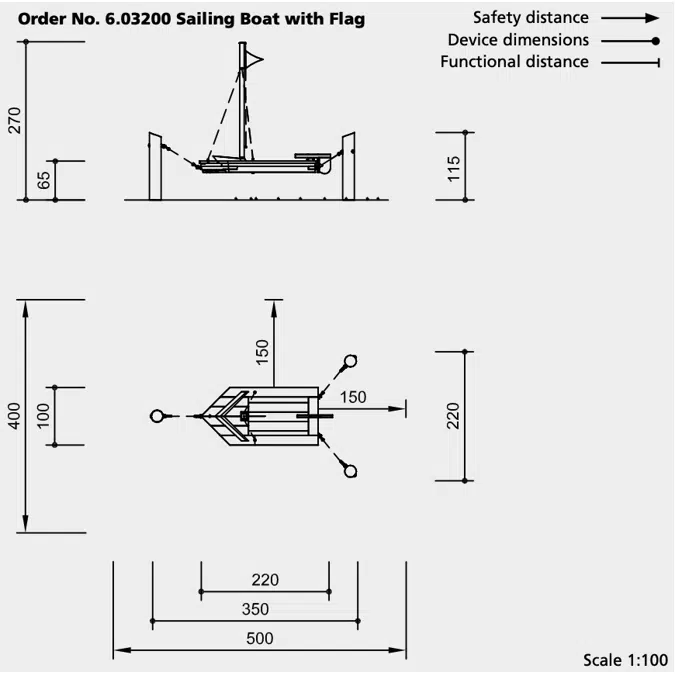

Dimensions
(small deviations possible) – with wooden stand posts

• Length: 3.50 m
• Width: 2.20 m
• Seat height: 0.65 m
• Weight: approx. 300 kg

Components

Order No. 6.03200

Sailing Boat with Flag

1 Ship with mast and tiller

3 Stand posts of robinia

1 Hoistable flag

Order No. 6.03201

Sailing Boat with Flag

As above but with stand posts

made of galvanised steel tube

Ø 178 mm

Order No. 6.03210

Sailing Boat without Flag

1 Ship with mast and tiller

3 Stand posts of robinia

Order No. 6.03211

Sailing Boat without Flag

As above but with stand posts

made of galvanised steel tube

Ø 178 mm

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m

Foundations

• 3 items: 80 x 80 x 80 cm
• Excavation depth: 100 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.

Dimensions

(small deviations possible)

Order No. 6.03200 / 6.03210

with wooden stand posts

Length 3.50 m

Width 2.20 m

Seat height 0.65 m

Weight approx. 300 kg

Order No. 6.03201 / 6.03211

with hot-dip galvanised stand posts

Length 3.50 m

Width 2.20 m

Seat height 0.65 m

Weight 275 kg
