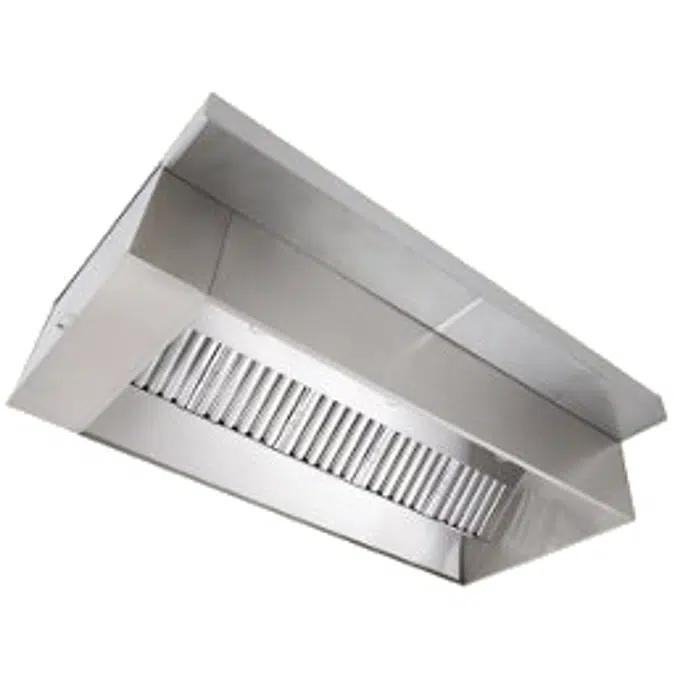

Wall Canopy Exhaust Hood with Perforated Supply Plenum, ND-2 Series
(7 評價)ND-2 Series with PSP/ACPSP Accessory
UPDATE:
Added PSP light option Added 78" wide models Improved lineweights Added Schedule Views
Exhaust Only Hood with Supply Plenum(s)
CaptiveAire's Type I, exhaust-only, low CFM ventilation hood is ETL Listed for use over 450°F, 600°F and 700°F cooking surface temperatures. Front supply plenum provides up to 80% make-up air.
Offering A Fully Integrated Package, Pre-Engineered For Optimum Performance
ADVANTAGES
Avg. Cooking Surface Temperature (°F)/Cooking SurfacesConfigurationExhaust CFM/Ft.Suggested Supply CFM/Ft. via Front Supply Plenum450°F - Ovens, Steamers, Kettles, Open-Burner Ranges, Griddles, FryersSingle Wall Hood
2 Wall Hoods Back-to-Back150
300120
240600°F - Gas Charbroilers, Electric Charbroilers, WoksSingle Wall Hood
2 Wall Hoods Back-to-Back 200
400160
320700°F - Mesquite Grills, Charcoal Charbroilers, Gas Conveyor Charbroilers, Wood Burning Appliances Single Wall Hood
2 Wall Hoods Back-to-Back 250
500200
400*Supply CFM/Ft. Consult factory representative if higher values are required
OPTIONS
Models ND-2 with PSP/ACPSP Accessory are ETL Listed under file number 3054804-001 and complies with UL710, ULC710 and ULC-S646 Standards.
UPDATE:
Exhaust Only Hood with Supply Plenum(s)
CaptiveAire's Type I, exhaust-only, low CFM ventilation hood is ETL Listed for use over 450°F, 600°F and 700°F cooking surface temperatures. Front supply plenum provides up to 80% make-up air.
Offering A Fully Integrated Package, Pre-Engineered For Optimum Performance
ADVANTAGES
- Superior Exhaust Flow Rates
- ETL Listed: ETL Listed to Canadian safety standards, ETL Sanitation Listed and built in accordance with NFPA 96
- Front Design
- Stainless Steel Construction
- Pre-wiring at Factory: Factory pre-wired lighting to illuminate the cooking surface
- Clearance to Combustibles: Optional integral clearance to combustibles reduction system to meet NFPA 96 requirements
- Face Mounted Controls: Optional ETL Listed light and fan control switches flush mounted and pre-wired through electrical chaseway
- Capture & Containment: Exceptional capture and containment of cooking vapors. This is accomplished with the signature ND "triangle" on the front of the hood's capture area and the "C-shaped" design of the hood's capture area
- Directs Make-Up Air Into Hood's Capture Area: A large percentage of the make-up air discharged from the front perforated supply plenum(PSP) is directed into the hood's capture area
- Even Distribution of Make-Up Air Across Length of Hood: The perforated supply plenum(PSP) delivers the make-up air evenly along the length of the hood
Avg. Cooking Surface Temperature (°F)/Cooking SurfacesConfigurationExhaust CFM/Ft.Suggested Supply CFM/Ft. via Front Supply Plenum450°F - Ovens, Steamers, Kettles, Open-Burner Ranges, Griddles, FryersSingle Wall Hood
2 Wall Hoods Back-to-Back150
300120
240600°F - Gas Charbroilers, Electric Charbroilers, WoksSingle Wall Hood
2 Wall Hoods Back-to-Back 200
400160
320700°F - Mesquite Grills, Charcoal Charbroilers, Gas Conveyor Charbroilers, Wood Burning Appliances Single Wall Hood
2 Wall Hoods Back-to-Back 250
500200
400*Supply CFM/Ft. Consult factory representative if higher values are required
OPTIONS
- Utility Cabinet
- Enclosure Panels: Constructed of stainless steel... mounting channel factory-welded to hood for field installation of panels over 11" high... under 11", factory-welded and integrally installed into hood front ends... sized to extend from hood top to ceiling, enclosing pipe and hanging parts
- End Panels: Should be used to maximize hood performance and eliminate the effects of cross drafts in kitchen... units constructed of stainless steel and sized according to hood width and cooking equipment. Exposed edges hemmed for safety and rigidity
- Separate Exhaust and/or Make-Up Air Fans
- Fire Suppression System: UL 300 pre-piped fire suppression system...Custom designed to your cooking equipment line-up
- Electrical Controls: ETL listed controls... Face mounted switches
- Lighting:
Recessed Incandescent
Recessed Fluorescent
Compact Fluorescent
LED
Recessed LED
Halogen
Models ND-2 with PSP/ACPSP Accessory are ETL Listed under file number 3054804-001 and complies with UL710, ULC710 and ULC-S646 Standards.
