Vertical-Lift Hydraulic Door & Window System
Vertical-Lift Hydraulic Door & Window System
Vertical-Lift Hydraulic Door & Window System
Vertical-Lift Hydraulic Door & Window System
    Crown Doors

    Vertical-Lift Hydraulic Door & Window System

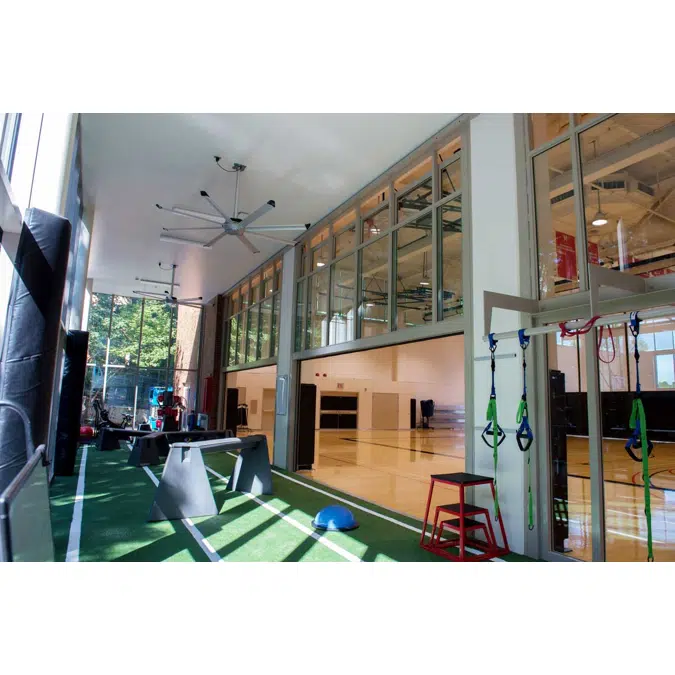

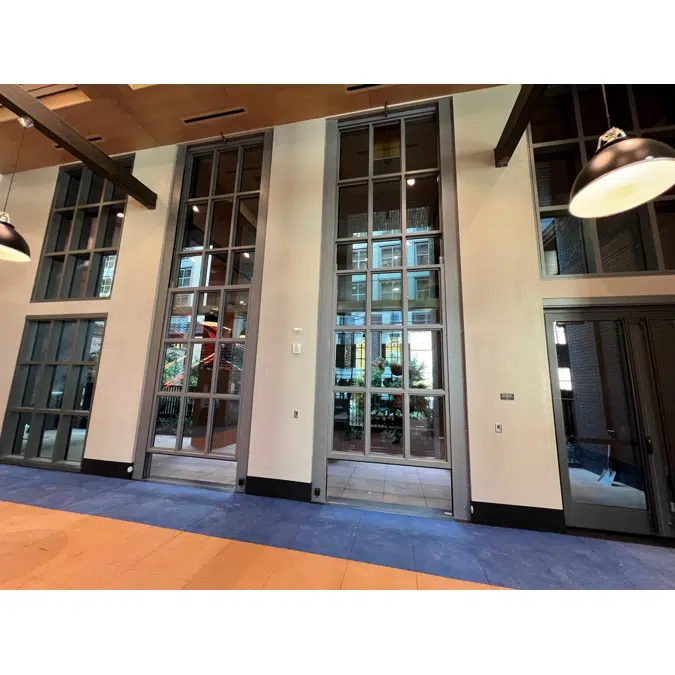

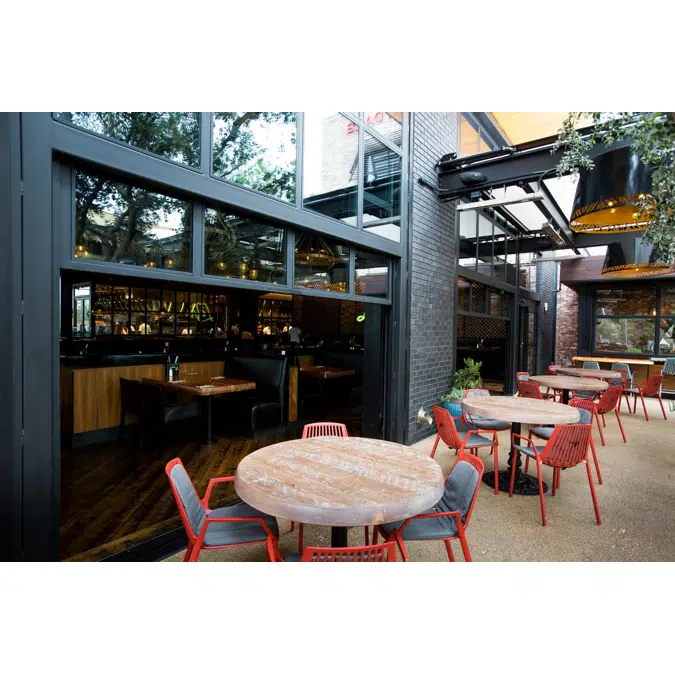

    The Vertical Lift Hydraulic System offers a unique blend of space saving and towering beauty. Designed to lift open, straight up, within the incorporated mounting frame, the Vertical Lift System offers a solution which projects neither to the exterior, nor to the interior, eliminating any conflicts with both exterior awnings or furniture, and any interior HVAC, lighting or fire suppression.

    Available in custom sizes from counter-top application to two-story atriums, the Vertical Lift System provides an impressive visual statement supported by well-engineered operation.

    Specification
      • Shipped powder-coat finished. A full array of standard, non-standard, and custom colors are available, with few exceptions.
      • Manual lowering system in case of power failure
      • Total security without the use of locking mechanisms. The hydraulic cylinders draw the system panels closed with 1,000+ lbs. of force, creating a tight seal around the perimeter
      • Full perimeter weather seals
      • Integral mounting frame to limit loads on the structure
      • Remotely mounted power unit
      • No floor/sill track is required – Nothing to impair movement through the opening
      • The use of hydraulics eliminates the need for limit switches
    Technical specification
    • Unique ref.hydraulic-vertical-lift-door-system
    • Product familyHydraulic
    • Product groupVerticl Lift System
    • TypeObject (single object)
    • Date of publishing2026-08-14
    • Edition number1
    Links
    Related
    • Material mainSteel
    • Material secondaryAluminum
    • Designed inUnited States
    • Manufactured inUnited States
    Classification
    • BIMobject CategoryDoors - Swing Doors
    • IFC classificationDoor
    • ETIM CodeEC001521
    • ETIM NameDoor sliding contact
    • Uniclass 2015 CodePr_30_59_24
    • Uniclass 2015 DescriptionDoorsets
    • CSI MasterFormat 2014 Code08 36 00
    • CSI MasterFormat 2014 TitlePanel Doors
    • OmniClass Number23-17 11 00
    • OmniClass TitleDoors
