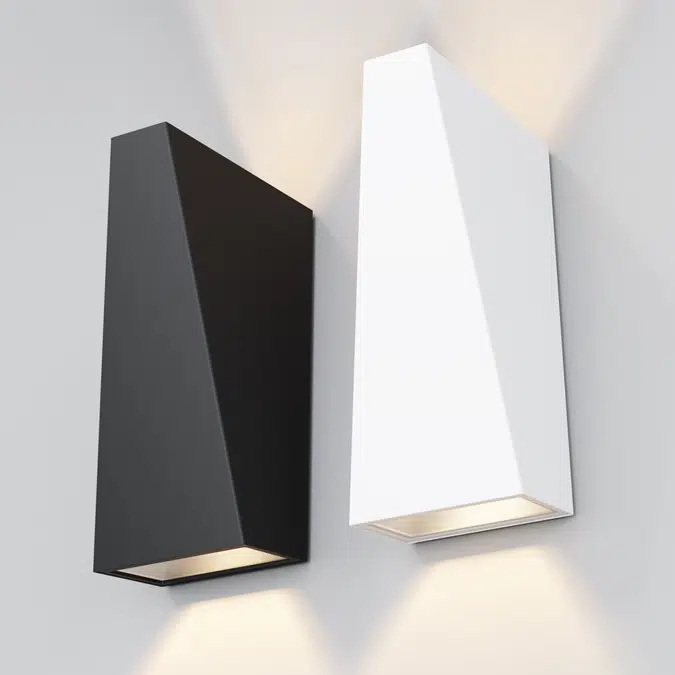

Outdoor wall lamp Times Square

Specification

Specification

• Title	Outdoor wall lamp Times Square
  Lamps	-
  Lamp power, W	6
  Voltage, V	AC 220-240
  Luminous flux, lum	100
  Color temperature, k	3200
  Lampshade diameter, mm	-
  Lampshade height, mm	-
  Lighting fixture height , mm	200
  Height of the ceiling cup, mm	-
  Lighting fixture width, mm	90
  Lighting fixture depth, mm	90
  Lighting fixture diameter, mm	-
  Diameter of the ceiling cup, mm	-
  LED	+
  IP	IP 54
  Warranty	5

Technical specification

Technical specification

• Unique ref.Outdoor-wall-lamp-Times-Square
• Product familyDecorative
• Product groupTimes Square
• TypeObject (single object)
• Date of publishing2026-10-20
• Edition number1
• Height (mm)200
• Width (mm)90
• Depth (mm)90

Links

Links

• Product urlhttps://maytoni.de/en/catalog/street/architectural-lighting/o580wl-l6w/
• Installation instructionshttps://mais-upload.maytoni.de/upload/media/e33036d4-88f4-4ea7-9845-231a12b56232/instruction_eu_O580WL-L6W.pdf?_gl=1*139k2pw*_gcl_au*MTY4MjMwMTY1NS4xNzQ0MzUyMzIw
• Technical descriptionhttps://maytoni.de/en/catalog/street/architectural-lighting/o580wl-l6w/?PDF%5BMAKE%5D=Y

Related

Related

• Material mainMetal
• Weight Net (Kg)0.83

Classification

Classification

• BIMobject CategoryLighting - Outdoor
