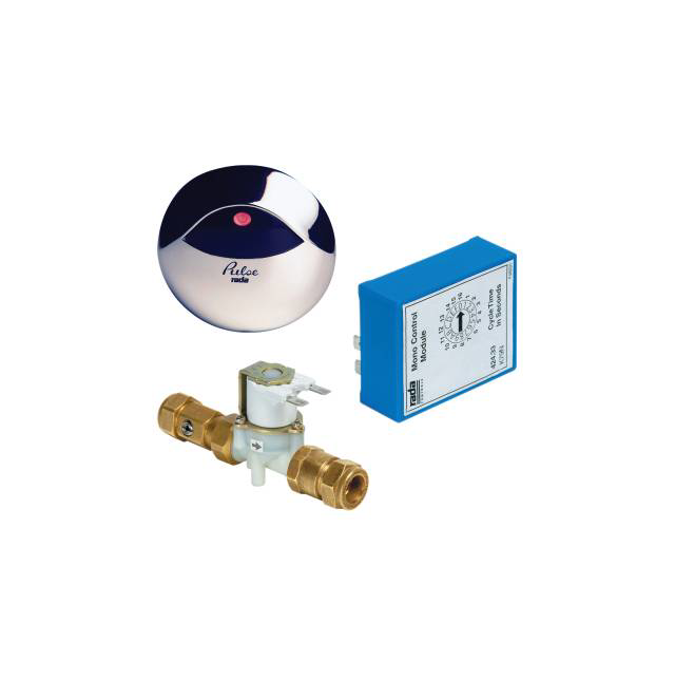

Rada Mono Control MC120 Operating System (1.1495.009)
Accessories
Rada Universal 12V AC Transformer
Standard product features
Operation:
• When the sensor is activated, a signal is sent to the Rada mono-control module, which in turn energises the solenoid valve.
• The solenoid valve opens, allowing water to flow to the outlet.
• The duration of the flow can be pre-selected during installation by the adjustment of an integral timing dial, via the mono-control module.
• The sensor can also be used to switch off the water supply before the pre-set time.
• The solenoid valve is supplied complete with an integral isolator and filter.
Materials:
• Wall mounted sensor: Chrome plated durable engineering plastic with shatterproof plastic sensing window.
• Solenoid valve: Fibreglass polyamide body.
Pressure:
• Solenoid valve: 0.20 - 10 bar.
Electrical:
• Sensor protection class: Electronic module IP65.
• Supply voltage: 12V AC + 10% 50/60Hz, via Rada Universal 12V AC transformer (not included).
• Power consumption: 6 VA.
Operating temperatures:
• Ambient temperature range: 5–40°C.
• Maximum humidity: 80%.
Accessories:
• Rada 308 transformer.
