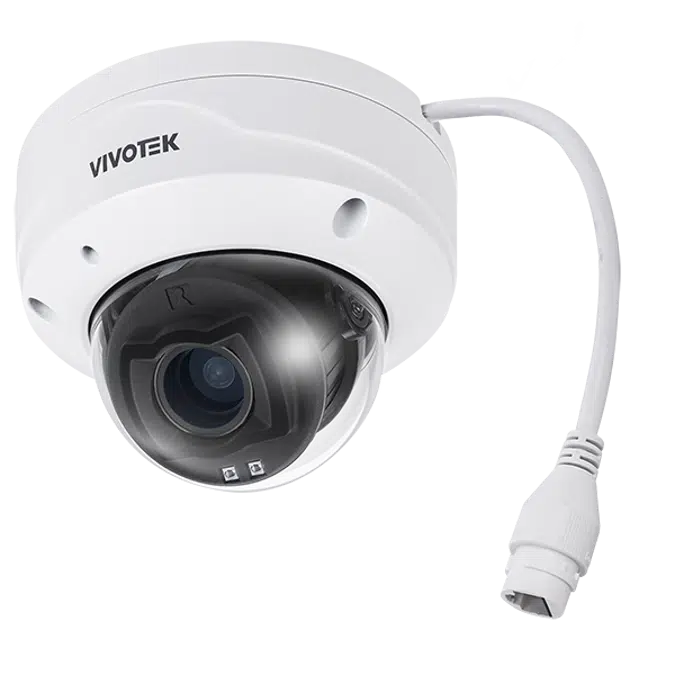

FD9383-HTV 5MP Outdoor Dome AI Camera

System Information

• CPU: Multimedia SoC (System-on-Chip)
• Flash: 8GB
• RAM: 2GB

Camera Specifications

• Image Sensor: 1/2.8" Progressive CMOS
• Max. Resolution: 2560x1920 (5MP)
• Lens Type: Motorized, Vari-focal, Remote Focus
• Focal Length: f = 2.8 ~ 12mm
• Aperture: F1.6 ~ F3.3
• Iris Type: DC-iris
• Field of View:
  • Horizontal: 95.4° ~ 28.7°
  • Vertical: 68.8° ~ 21.5°
  • Diagonal: 129.6° ~ 35.9°
• Shutter Time: 1/5 sec. to 1/32,000 sec.
• WDR Technology: WDR Pro
• Day/Night: Yes
• Removable IR-cut filter: Yes
• Illuminators: Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination:
  • 0.04 lux @ F1.6 (Color)
  • 0.005 lux @ F1.6 (B/W)
  • 0 lux with IR illumination on
• Pan Range: 353°
• Tilt Range: 75°
• Rotation Range: 350°
• Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Storage: Seamless recording to MicroSD/SDHC/SDXC card (1TB supported) and NAS
• Built-in Installation Aids: Remote focus, remote zoom, pixel calculator

Video

• Compression: H.265, H.264, MJPEG
• Maximum Frame Rate: 30 fps @ 2560x1920
• Maximum Streams: 3 video streams (up to 8 configurable profiles)
• Main Stream:
  • 30fps @ 2560x1920, 2048x1536, 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3)
  • 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  • 60fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
• 2nd Stream:
  • 30fps @ 1920x1440, 1600x1200, 1280x960, 640x480 (4:3)
  • 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
  • 60fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9)
• 3rd Stream:
  • 30fps @ 1280x960, 800x600, 640x480 (4:3)
  • 30fps @ 1280x720, 640x360 (16:9)
  • 60fps @ 1280x720, 640x360 (16:9)
• S/N Ratio: 59 dB
• Dynamic Range: 120 dB
• Video Streaming: Adjustable resolution, quality, constant bit rate control, Smart Stream III

Image Settings

• General: Video title/time stamp overlay, orientation (flip, mirror, rotation), day/night settings
• Illuminators: Illuminators, anti-overexposure/Smart IR
• Image Settings: White balance, brightness/contrast/saturation/sharpness/gamma adjustment, defog, 3DNR
• Exposure: BLC, HLC, exposure control (level, time, gain), image sharpener for motion blur, AE speed adjustment, WDR
• Focus: Zoom, focus
• Privacy Mask: Yes
• Pixel Calculator: Yes
• Scheduled Profile Settings: Yes

Audio

• Audio Capability: One-way audio
• Compression: MPEG-2 AAC-LC, G.711, G.726
• Interface: Built-in microphone
• Effective Range: 5 meters

Network

• Users: Live viewing for up to 10 clients
• Security: Access list, CSRF protection, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force/cyberattack/quarantine events), user access log, user account management
• Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
• Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45) — CAT5e/CAT6 cables recommended (3P/ETL compliant)
• ONVIF: Profile G, S, T, M supported (spec at www.onvif.org)

AI Analytics

• Compute Capability: SoC with built-in hardware deep learning accelerator
• Vision Object Analytics:
  • Object Detection: People, vehicle (4-wheeled, 2-wheeled), human/vehicle bestshot, path extraction
  • Attribute Extraction: People (gender, clothing color, bag, hat); vehicle (bike, bus, car, motorcycle, truck, color); human face bestshot; re-search extraction
• Application: Deep Learning VCA (Smart Motion Detection, Smart VCA)
  • Smart VCA – Group 1: Smart motion detection (five-window video motion detection, people/vehicle detection, time filter), Smart VCA (intrusion, loitering, line crossing, face detection)
  • Smart VCA – Group 2: Unattended object detection, missing object detection, crowd detection
  • Smart VCA – Group 3 (license required): Running detection, parking violation detection, restricted zone detection
  • More analytics and free trials available on the VIVOTEK website
• RealSight Engine: Smart IR III, deblur, WDR, white balance, exposure control

Solution Integration

• VADP Package: Trend Micro (default, 3-year free trial)
• Video Motion Detection: Five-window video motion detection

Alarm and Event

• Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force/cyberattack/quarantine), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
• Event Action: Notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card; file upload via email, HTTP, FTP/SFTP, NAS server, SD card

General

• Connectors: RJ-45 for 10/100 Mbps Network/PoE
• LED Indicator: System power and status
• Power Input: IEEE 802.3af PoE Class 3
• Power Consumption: Max. 9.7 W / 7.2 W (IR on/off)
• Dimensions: ø133.7mm x 103.8mm
• Weight: 850 g

Certifications

• EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
• Safety: UL (62368-1), CB (IEC/EN 62368-1, 60950-22, 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
• Environment: IK10 (IEC 62262), IP66 (IEC 60529)
• IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

Operating Conditions

• Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Working Temperature:
  • -30°C ~ 55°C (-22°F ~ 131°F), IR off
  • -30°C ~ 50°C (-22°F ~ 122°F), IR on
• Humidity: 90%

System Requirements

• Operating System: Microsoft Windows 10/8/7, Mac 10.12 (Chrome only)
• Web Browser: Chrome 58.0+, Internet Explorer 11
• Other Players: VLC 1.1.11 or above

Included Accessories

• Quick installation guide, alignment sticker, screw pack, cable gland

DORI (EN 62676-4 Standard)

• Detection (25PPM/8PPF): Wide 67.0 m (219.9 ft) / Tele 205.7 m (674.8 ft)
• Observation (63PPM/19PPF): Wide 26.7 m (87.5 ft) / Tele 81.6 m (267.8 ft)
• Recognition (125PPM/38PPF): Wide 13.3 m (43.7 ft) / Tele 41.0 m (134.4 ft)
• Identification (250PPM/76PPF): Wide 6.6 m (21.7 ft) / Tele 20.5 m (67.1 ft)
