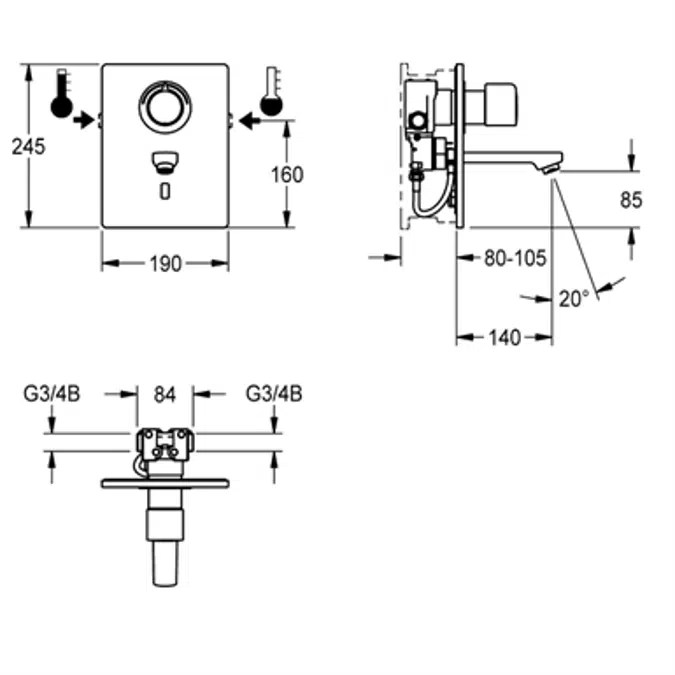

F5E-Therm electronic thermostat mixer F5ET1013

F5E-Therm thermostatic mixer DN 15 as finished installation kit for in-wall installation in basic installation kit, for sanitary facilities. Opto-electronically controlled, for connection to hot water and cold water. Function block with integrated solenoid valve cartridge, thermostat and device for optional bypass solenoid valve cartridge, for program-controlled thermal disinfection. Thermostat with metal handle with adjustable and turn-proof temperature stop and option for manual thermal disinfection. Visible parts made of high-polished chromium-plated brass. Holding frame with profile seal, stainless steel cover plate 190 x 245 mm with covered screw fixing including sensor with control electronics, rosette, backflow preventer and strainers. Spout with laminar jet controller with integrated flow regulator 6.0 l/min. Projection 140 mm, depth adjustability 25 mm. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional, bidirectional remote control. Separate power supply via power supply unit 6.75 V / 12 V DC or AQUA 3000 open system accessories.

Tekniset tiedot

Type of mounting In-wall installation with box
Type of operation Sensor operation
Power supply connection 6,75 / 12 V DC / A3000 open
Diameter nominal DN 15
Calculation flow rate cold water 0.07 liter per second
Calculation flow rate hot water 0.07 liter per second
Functional principle Electronic self-closing
Minimum flow pressure 1.00 bar
Power consumption 1.50000
Volume flow rate at 3 bar 0.10 liter per second
Inlet size G-3-4-B
Type of mixing Thermostat
Material casing Stainless steel
Material fitting Brass
Sound insulation No
Spout projection 140.00 mm
Surface finish casing Satin finished
Surface finish fitting Chromed
Type of tap In-wall tap
Depressurised No
Thermal disinfection Prepared for automatic thermal disinfection
Protective shutdown Yes
Volume flow rate thermal disinfection at 3 bar 0.05 liter per seconds
Default automatic hygiene flushing 24h after the last activity
Position of power connection Top
Type of sensor Opto-electronic sensor
Hygiene flushing Yes

Tekniset tiedot

Yksilöity viite2030038681
TuoteperheTaps
TuoteryhmäElectronic taps
TyyppiObjekti (yksittäinen objekti)
Julkaisupäivä2020-03-24
Painoksen numero1
Korkeus (mm)245
Leveys (mm)190

Linkit

Liittyviä

Ensisijainen materiaaliRuostumaton teräs
Toissijainen materiaaliMessinki
Suunniteltu:Saksa
Valmistettu:Saksa
Nettopaino (kg)4.26

Luokitus

BIMobject-luokkaSaniteetti - Hanat/kraanat/messinkiesineet
Uniclass 2015 -koodiPr_40_20_87_98
Uniclass 2015 -kuvausWashbasin taps
