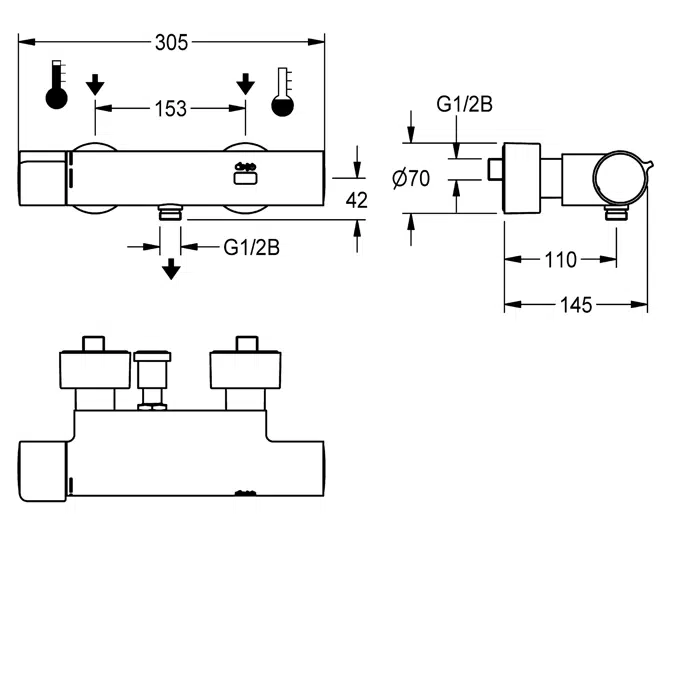

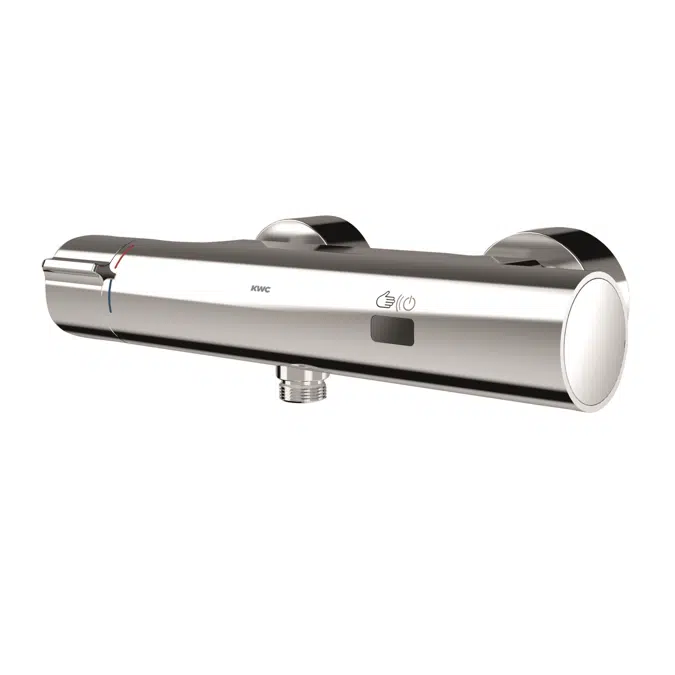

F5E-Therm electronic thermostat wall-mounted mixer F5ET2006

F5E-Therm thermostatic mixer DN 15 for wall mounting, for shower facilities. Electronically controlled, for connection to hot water and cold water. Thermostat with metal handle and adjustable, turn-proof temperature stop. With option for thermal disinfection, manually or automatically via optional disinfection unit. Control electronics, solenoid valve cartridge and touch sensor in scald-protected safe-touch housing, with hand-shower connection, G 1/2 B. Full-metal version, high-polished chromium-plated brass. With adjustable and lockable connections with backflow preventer and strainers, completely covered with depth-adjustable screw rosettes. Activated water hygiene flushing 24 hours after last activation and saving of statistical data. With option for parameterization and communication via optional, bidirectional remote control. Separate power supply via power supply unit 6.75 V / 12 V DC or AQUA 3000 open system accessories.

Tekniset tiedot

Type of mounting Wall mounting
Type of operation Sensor operation
Power supply connection     6,75 / 12 V DC / A3000 open
Position of water connection     From backside
Diameter nominal     DN 15
Calculation flow rate cold water     0.15 liter per second
Calculation flow rate hot water     0.15 liter per second
Functional principle     Electronic self-closing
Minimum flow pressure     1.00 bar
Power consumption     1.50000
Volume flow rate at 3 bar     0.23 liter per second
Inlet size     G 1/2 B
Type of mixing     Thermostat
Adjustable flow time     Yes
Material casing     Brass
Material fitting     Brass
Sound insulation     No
Surface finish casing     Chromed
Surface finish fitting     Chromed
Thermal disinfection     Prepared for automatic thermal disinfection
Protective shutdown     Yes
Volume flow rate bypass     0.05 liter per seconds
Default automatic hygiene flushing     24h after the last activity
Maximum flow time     255.00 seconds
Minimum flow time     1.00 seconds
Default flow time     30.00 seconds
Position of power     connection Backside
Type of sensor     Opto-electronic sensor
Circulation     No
Hygiene flushing     Yes
Additional connections     No
Connection with pay water dispenser     via electronic module
Shower pipe draining     No
Type of shower     Wall fitting

Tekniset tiedot

Yksilöity viite2030039543
TuoteperheShowers
TuoteryhmäElectronic self closing showers
TyyppiObjekti (yksittäinen objekti)
Julkaisupäivä2021-03-17
Painoksen numero1
Leveys (mm)305

Linkit

Liittyviä

Ensisijainen materiaaliMessinki
Suunniteltu:Saksa
Valmistettu:Saksa
Nettopaino (kg)4.85

Luokitus

BIMobject-luokkaSaniteetti - Suihkut
Uniclass 2015 -koodiPr_40_20_87_81
Uniclass 2015 -kuvausShower thermostatic water supply sets
