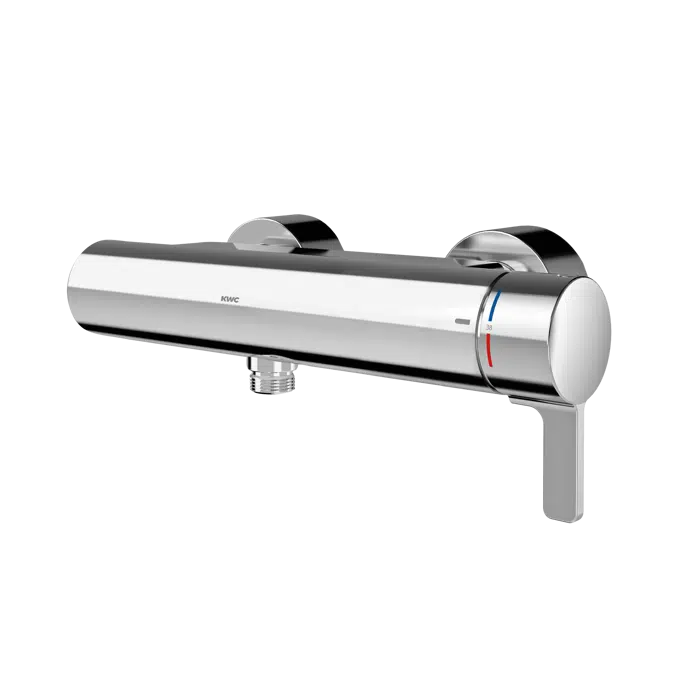

Thermostatic single-lever wall-mounted mixer with hand shower connection F5LT2003

F5L-Therm thermostatic single-lever mixer as DN 15 wall-mounted mixer for wall mounting, for shower facilities. Thermostatically-controlled mixer cartridge with expansion element and active scald protection as well as adjustable and turn-proof temperature stop, and ceramic disc technology. With mechanism for optional hygiene unit for automatic hygiene flushing, program-controlled thermal disinfection (additional bypass solenoid-operated flush valve cartridge necessary) and storage of statistical data. For connection to hot and cold water. Scald-protection, Safe-Touch housing with hand shower connection, G 1/2 B. All-metal construction, high-polished chrome-plated brass. With adjustable and lockable connections with backflow preventers and strainers, fully covered by depth-adjustable screw rosettes.

Tekniset tiedot

Additional connections	no
With backflow preventer	yes
Circulation	no
Connection with pay water dispenser	not possible
With filter	yes
Functional principle	manual
For hand shower	yes
Hygiene flushing	prepared
Diameter nominal	DN 15
Inlet size	G 1/2 B
Locking mechanism	Top section, ceramic
Material casing	brass-look
Material fitting	brass-look
Minimum flow pressure	1 bar
Type of mixing	with thermostat
With rosettes/cover plate	yes
Protective shutdown	no
Shower pipe draining	no
Sound insulation	no
Surface finish casing	chromed
Surface finish fitting	chromed
Surface treatment fitting	polished
Temperature limit	yes
Thermal disinfection	yes
Type of mounting	wall mounting
Type of operation	manual operation
Type of shower	wall fitting
Volume flow rate at 3 bar	0.25 l/s
Water connection	S-unions
Position of water connection	from backside
Accent colour	none
Basic colour	chrome-look (glossy)

Tekniset tiedot

Yksilöity viite2030066497
TuoteperheShowers
TuoteryhmäManual showers
TyyppiObjekti (yksittäinen objekti)
Julkaisupäivä2024-09-12
Painoksen numero1

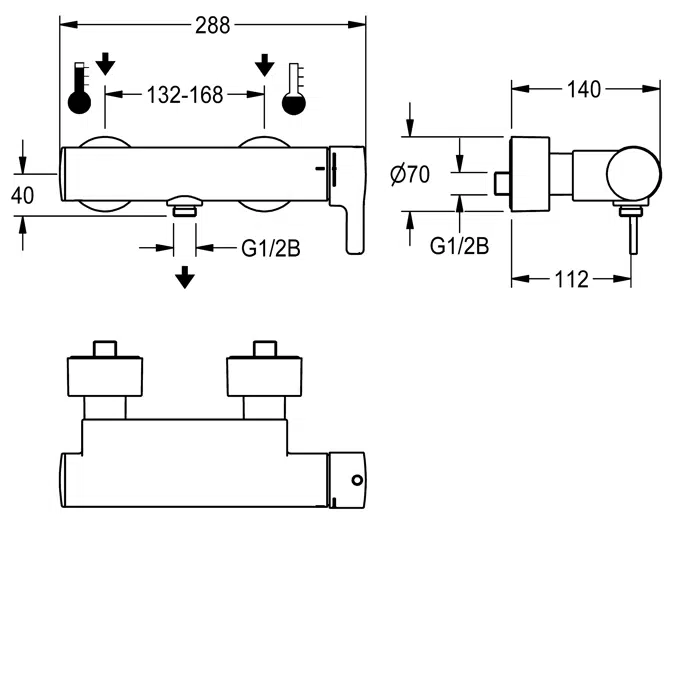

Leveys (mm)288
Syvyys (mm)140

Linkit

Liittyviä

Ensisijainen materiaaliMessinki
Suunniteltu:Saksa
Valmistettu:Saksa
Nettopaino (kg)3.7

Luokitus

BIMobject-luokkaSaniteetti - Suihkut
Uniclass 2015 -koodiPr_40_20_87_80
Uniclass 2015 -kuvausShower thermostatic valves
