F3S Self-closing washbasin tap F3SV1010
F3S Self-closing washbasin tap F3SV1010

    F3S Self-closing washbasin tap F3SV1010

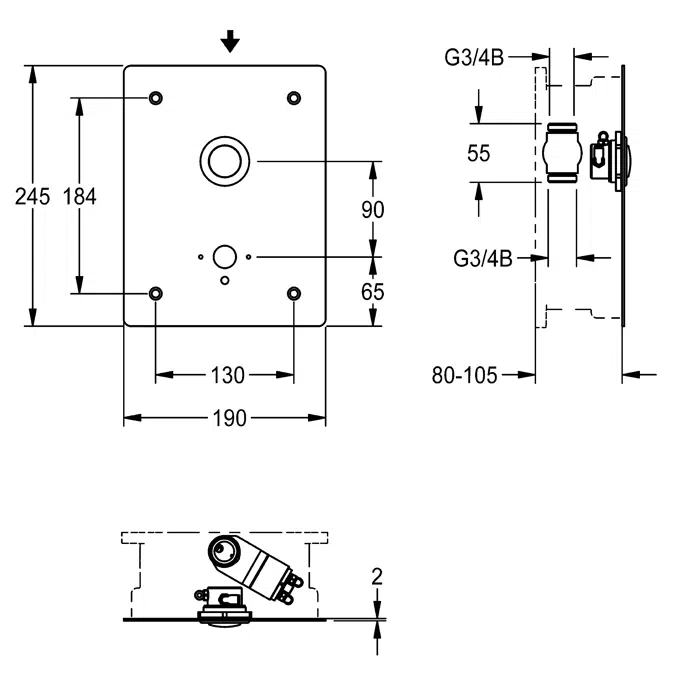

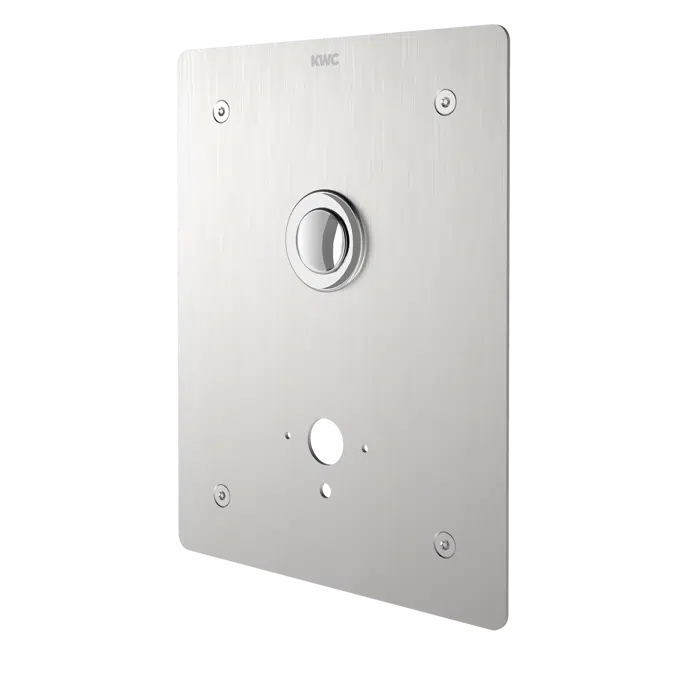

    F3S self-closing straight-way valve DN 15 as finished installation kit for in-wall installation in basic installation kit, for sanitary facilities. Especially suitable for facilities at risk of vandalism. Self-closing head part, hydraulically controlled for remote control, piston-free design, self-closing and for connection to pre-mixed hot water or cold water. All-metal construction, visible parts polished chromium-plated. Stainless steel cover plate 190 x 245 x 2 mm, mounting from the front with safety screws, with recess for necessary KWC wall outlet DN 15, pre-mounted push-button actuation. Hydraulic control lines, connecting hose to the straight-way valve and mounting material. Depth adjustability 25 mm.

    Wall outlet must be ordered separately.

    Tekniset tiedot
    • built-in fitting model Finishing section
      cover plate height 245 mm
      cover plate width 190 mm
      depressurised no
      adjustable flow time yes
      functional principle hydraulic self-closing
      hygiene flushing no
      diameter nominal DN 15
      inlet size G 1/2 B
      locking mechanism Top section, non-ceramic
      material casing stainless steel
      material code casing 1.4301 Chrome Nickel steel V2A
      material fitting brass-look
      maximum flow time 20 Seconds
      minimum flow pressure 1 bar
      minimum flow time 10 Seconds
      type of mixing no
      pop-up waste set no
      protective shutdown no
      sound insulation no
      surface finish casing satin finished
      surface finish fitting raw
      surface treatment fitting none
      temperature limit no
      thermal disinfection no
      with transformer/power supply no
      type of mounting in-wall installation with box
      type of operation manual operation
      type of tap bib tap
      volume flow rate at 3 bar 0.3 l/s
      water connection threaded connection (internal)
      accent colour chrome-look (glossy)
      basic colour stainless steel-look
    Tekniset tiedot
    • Yksilöity viite2030067885
    • TuoteperheTaps
    • TuoteryhmäSelf closing taps
    • TyyppiObjekti (yksittäinen objekti)
    • Julkaisupäivä2025-07-03
    • Painoksen numero1
    • Korkeus (mm)245
    • Leveys (mm)190
    Liittyviä
    • Ensisijainen materiaaliRuostumaton teräs
    • Toissijainen materiaaliMessinki
    • Suunniteltu:Saksa
    • Valmistettu:Saksa
    • Nettopaino (kg)1.1
    Luokitus
    • BIMobject-luokkaSaniteetti - Hanat/kraanat/messinkiesineet
    • Uniclass 2015 -koodiPr_40_20_87_98
    • Uniclass 2015 -kuvausWashbasin taps
