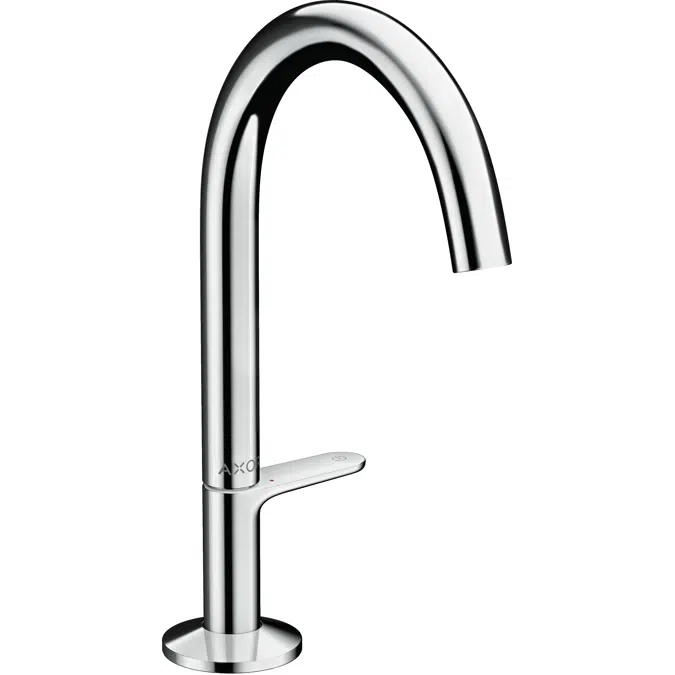

48020CHN AXOR One Basin mixer Select 170 with push-open waste set

Surfaces:

- 48020707 Matt White

- 48020007 Chrome

- 48020677 Matt Black

- 48020147 Brushed Bronze

- 48020997 Polished Gold Optic

- 48020257 Brushed Gold Optic

- 48020307  Polished Red Gold

- 48020317 Brushed Red Gold

- 48020337 Polished Black Chrome

- 48020347 Brushed Black Chrome

- 48020807 Stainless Steel Finish

- 48020827 Brushed Nickel

- 48020957 Brushed Brass

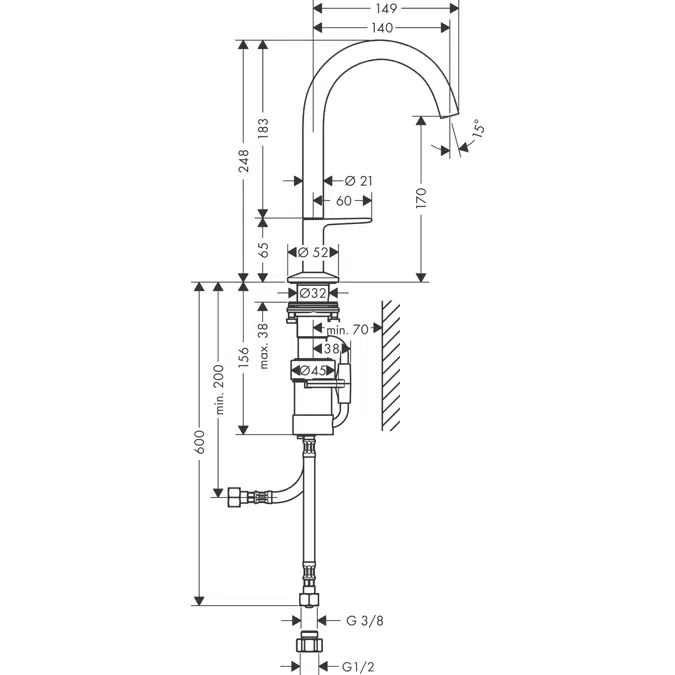

Specification:

• consists of: Basin mixer, waste set

• ComfortZone 170

• projection: 140 mm

• spout height: 170 mm

• spray type: normal spray

• maximum flow rate at 3 bar: 5 l/min

• Select cartridge with temperature control

• temperature limitation adjustable

• suitable for continuous flow water heaters

• push-open waste set G 1¼

• material waste set: metal

• connection type: G ½ connections

• connection dimension: DN15

• cold water in middle position
