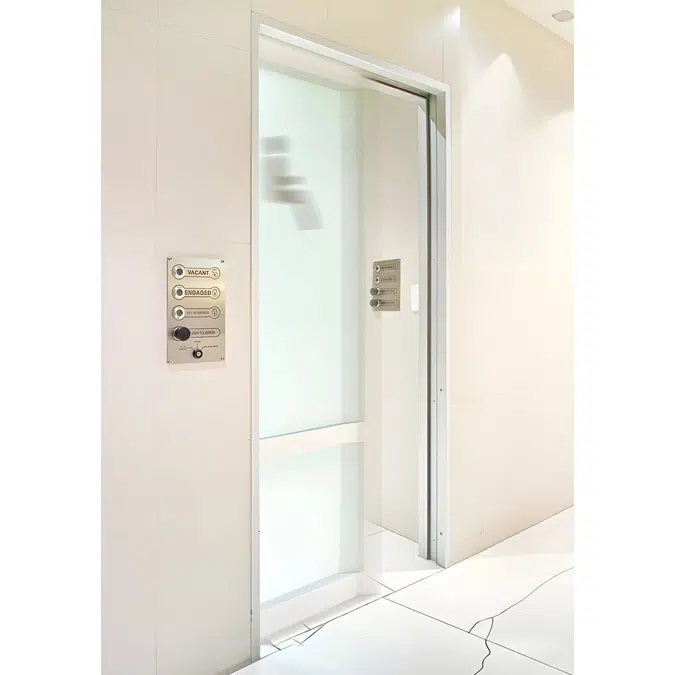

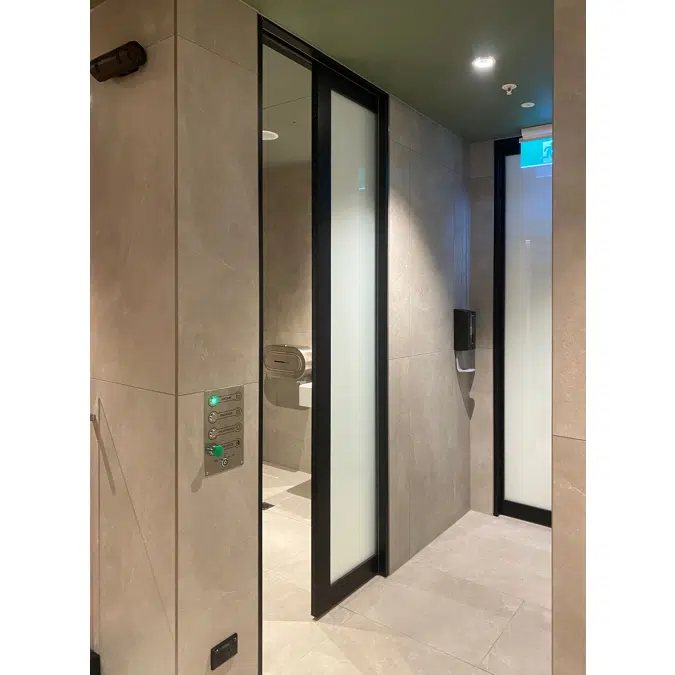

AutoCAV Pro

Dimensions

Min Size: Minimum door width of 34" (864mm)

Max Size: With pocket frame: Custom sizes up to 60" x 96" (1524mm x 2440mm) per door. Head unit only: 60" W x no max H

Max Weight: 440lb (200kg) per door

Wall Framing: 3½" or 3⅝" (90mm) or 5½" (140mm)

Suitable Door Types

Can be specified with almost any choice of door that meets a minimum door width of 34” (860mm) and a maximum door width of 60” (1524mm)*.

*For custom sizes, please contact customer service.

Design & Safety Features

• Self-tensioning pulley and heavy duty belt.

• Carriages with nylon wheels and enclosed bearing races for smooth, maintenance free operation.

• Safety beam sensors provide obstacle detection.

• Access points in the head unit ensure access to the track section.

• Fully programmable controller with many standard operating modes. Includes built in safety beam controller, object detection and smart learning modes.

Configurations

Available in Single and Bi-Parting (Double Door) Configurations

Access Control Options

A variety of access control options are available, from simple push button or overhead sensor to secure entry via touch pad, swipe key or a combination of methods.

In the event of power failure, the door can be manually opened or a battery backup can be supplied, for example:

• Handwave Sensor
• Standard Light Switch
• Dry Wire to connect to third party smart home or building management system
• Heavy Duty Push Button Access
• Piezo Button
• Overhead Sensor
