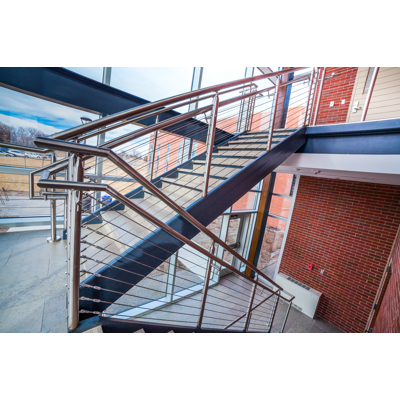

CUBE Stainless Steel Multiline Railing System

CUBE Stainless Steel Multiline Railing System

4.8 su 5 stelle4.8(6 recensioni)

CUBE™ Deck Railing System provides clean defined lines and a robust contemporary look. The system is made of 2”x 2” square posts, terminating into monolithic pyramid top cap creating continuous clean lines throughout the components. Railing in-fill between the posts is mounted via fixed point holders for mounting of Glass or any other in-fill of your choice.  VIVA’s iRAIL Product Line is ETL Certified; the ETL Mark is proof of product compliance to North American safety standards.

Voce di capitolato
  • Material:
    Stainless Steel or Steel

    Finish:
    #6 Satin, #8 Mirror, ECM or Powder Coat

    Size:
    2"x 2" @ 5'-0" max. O.C. and 4'-0" max. for cable infill

    Mounting Options
    Fascia, Top or Core mount.

    INFILL MATERIAL:  Glass, Perforated Metal, Wire Mesh, Picket, Multiline, Laser Cut or CableNet

    1. A.  Glass Finish:
      Clear, Tinted or Frit

    Size/Spacing for Glass Finish:

    Min. 3/8" laminated glass with PVB or SGP interlayer ¹
    Glass standard thickness: 3/8", 1/2", 5/8", 3/4"
    Interlayer standard thickness, SGP: 0.035" , 0.06" or PVB: 0.035"

    FINISHING OPTION FOR Perf, Wire, Picket Multiline and CableNet:  #6 Satin

    Size/Spacing for Perf, Wire, Picket, Multiline and CableNet:

    • · Perforated Metal:  1” wide frame
    • · Wire Mesh:  1” wide frame
    • · Picket:  Ø1/2" picket
    • · Multiline:  Ø1/2" multiline
    • · CableNet:  1" Wide frame, Ø1/16" (1.5mm) cable mesh
    • · Cable:  Ø3/16" cable
    • · Laser Cut - 1/4" thick aluminum panel

    TOP RAIL/HANDRAIL MATERIAL:

    1. A. Stainless Steel Tube
      Finish:  #6 Satin, Powder Coat
      Size/Spacing for SS Tube: Ø1-1/2" or Ø2" for Hand Rail
      Ø1-1/2", Ø2" or 2"x 1" Rectangular tube for Top Rail
    1. B. Stainless Steel Tube with LED2
      Finish:  #6 Satin
      Size/Spacing for SS Tube with LED:  Ø1-1/2" with LED LINEAR, Ø1-1/2" or Ø2" with LED POD

    2. C. Wood (Red Oak, Cherry or Maple) 3 :  Unstained
      Wood (Red Oak, Cherry or Maple) w/ LED 2 :  Unstained
      Size/Spacing:  Ø2" / Ø2" with LED LINEAR

    (1) IBC 2015 & newer requires railing glass to be laminated. VIVA recommends SGP for exterior applications.
    (2) All LED LINEAR products are ETL certified; ETL mark is proof of product compliance to North American safety standard.
    (3) Other species available upon request.

    Keywords: Stainless Railings, Stainless Steel Railings, Stainless Steel Rail, Metal Railings, Metal Stainless Railing

Specifiche tecniche
  • Rif. Unicocube-stainless-steel-multiline-railing-system
  • Famiglia di prodottoPost Systems
  • Gruppo di famigliaCUBE
  • TipoMateriale di costruzione
  • Data di pubblicazione2021-06-24
  • Numero di versione1
Relativo a
  • Materiale principaleAcciaio inossidabile
  • Progettato inStati Uniti
  • Prodotto inStati Uniti
Classificazioni
  • Categoria BIMobjectEdilizia - Parapetti e ringhiere
  • Clasificazione IFCRinghiera
  • Codice ETIMEC012260
  • Nome ETIMHandrail system
  • Codice Uniclass 2015Ss_25_15_60_35
  • Descrizione Uniclass 2015Handrail systems
  • Codice CSI MasterFormat 201405 52 00
  • Titolo CSI MasterFormat 2014Metal Railings
  • Numero OmniClass23-17 25 11 11 17
  • Titolo OmniClassRailing

Disponibilità Regionale

Nord America
Stati Uniti
