DAIKEN NEWTON N20 Steel Hanger Rail System

DAIKEN NEWTON N20 is a steel hanger rail system designed for smooth and quiet operation of sliding doors.

With a maximum door weight capacity of 200 kg when using two double-wheel hangers per door, the system is suitable for a variety of sliding door applications.

Resin-coated rollers with bearings, a specially designed rail profile, and flexible roller axles help reduce operating force and noise while supporting smooth movement.

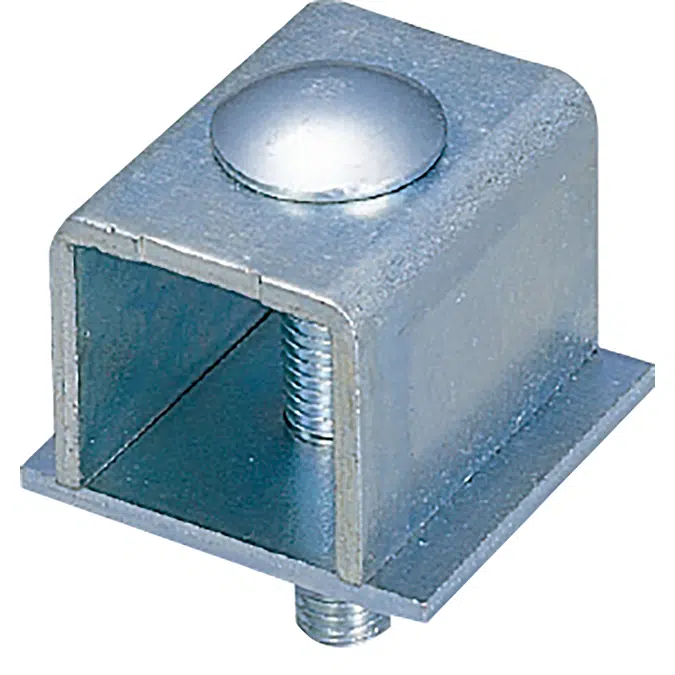

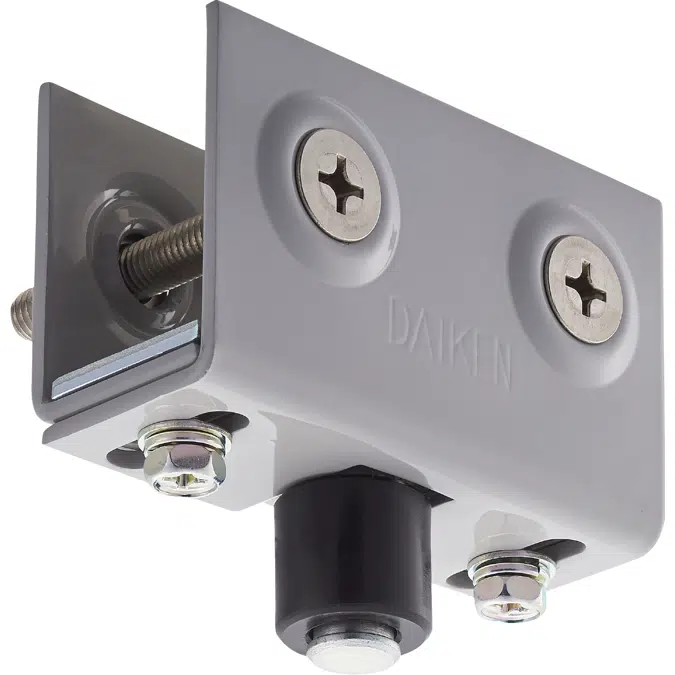

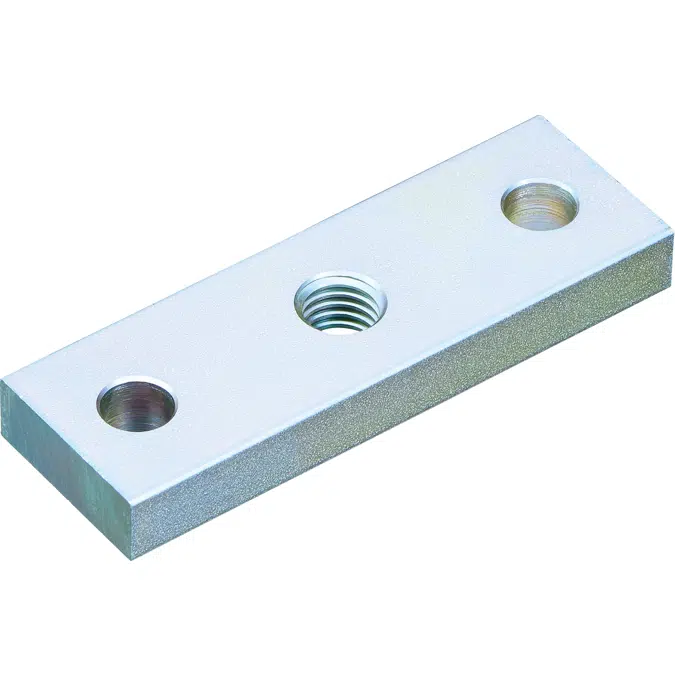

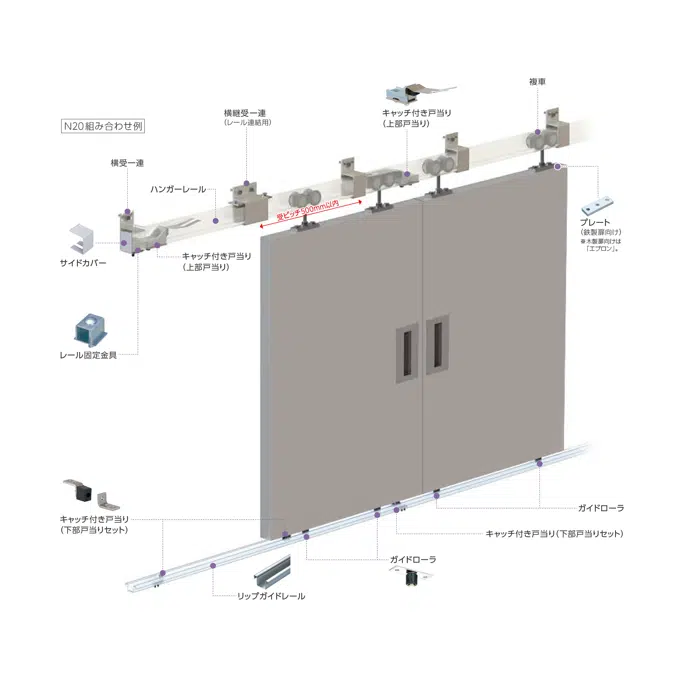

The series offers straight and curved rails, together with compatible rollers, brackets, guide components, and door stops.

Specificatie

Product Series: NEWTON N20
Manufacturer: DAIKEN
Product Type: Steel Hanger Rail System
Maximum Door Weight: 200 kg per door (with two double-wheel hangers)

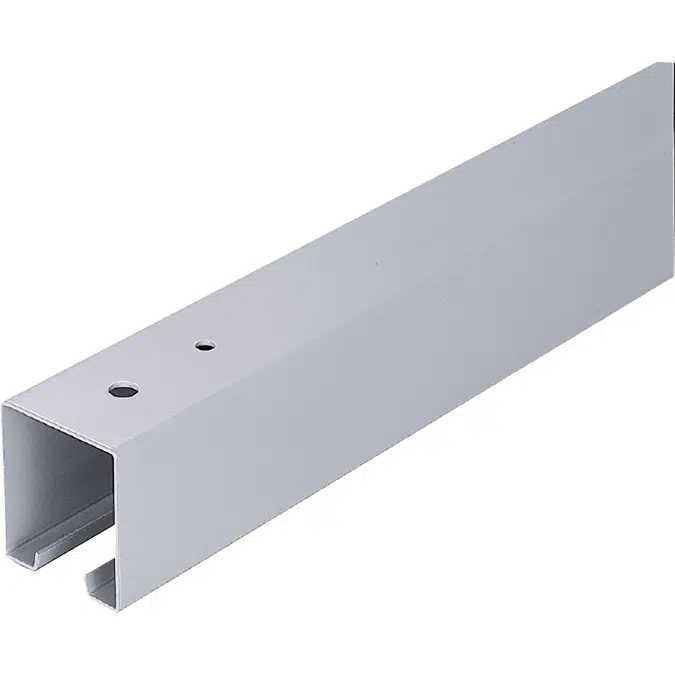

Rail Material and Finish: High-strength galvanized steel with powder-coated finish

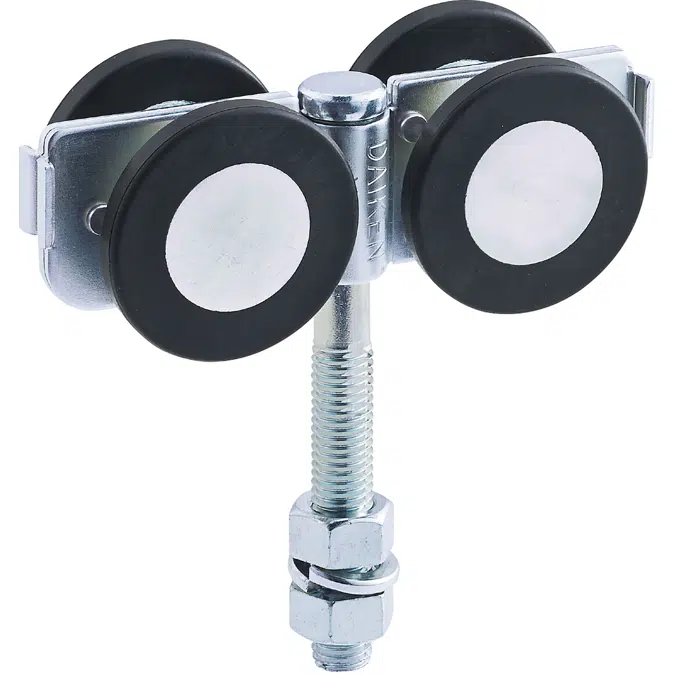

Roller Features: Resin-coated wheels, bearings, and flexible axle mechanism

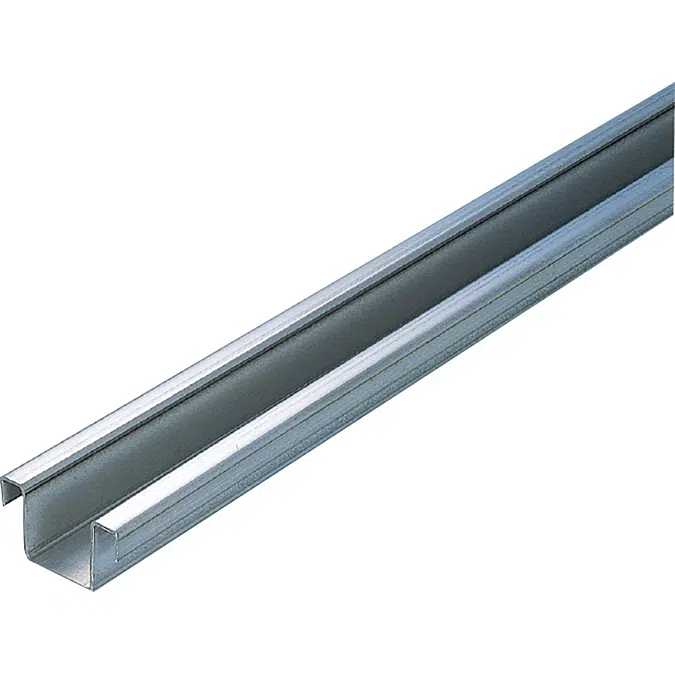

Rail Options: Straight rail and curved rail (standard radius: R600 mm)
Standard Straight Rail Lengths: 2,000 mm / 3,000 mm

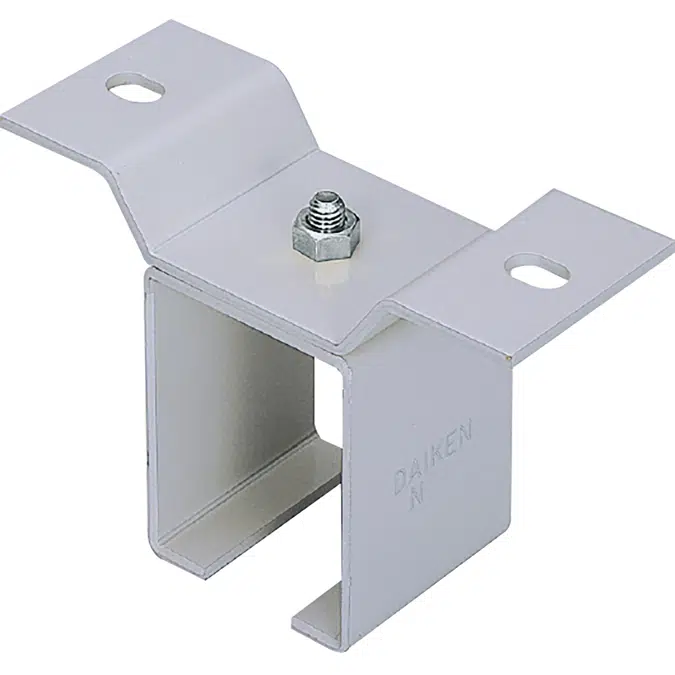

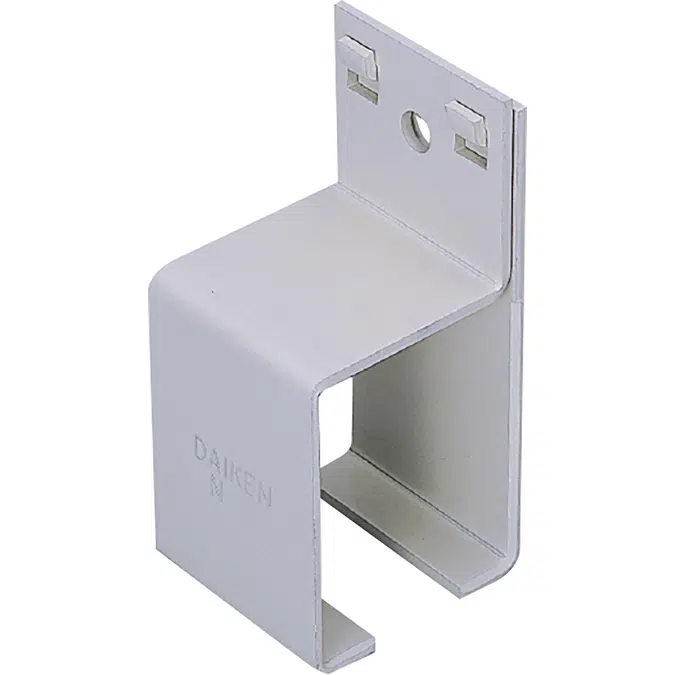

Installation: Compatible brackets or direct rail mounting where permitted
Environmental Features: Hexavalent chromium-free surface treatment
