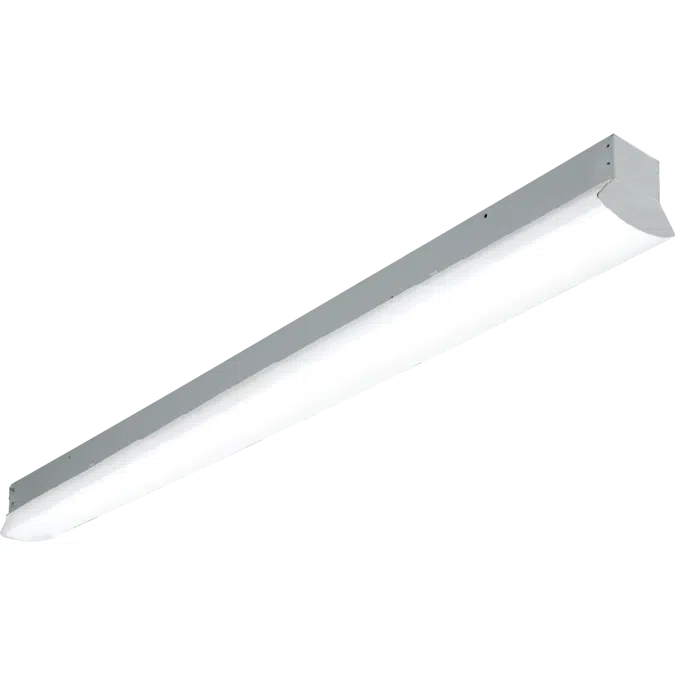

75W Narrow Strip – Wide Lens

H.E. Williams, Inc.

75W Narrow Strip – Wide Lens

Features

Ideal for data centers, commercial offices, schools and industrial spaces
Wide lens shape provides 13% uplight to illuminate dark ceilings
High ambient option for extreme environments
HE option delivers superior efficacies up to 182 lm/W
Row applications produce continuous light with minimal interruption
Diffuse acrylic lens enhances uniformity and minimizes glare
Variety of mounting accessories for surface and suspended applications
Six standard finish options and a wide selection of custom colors complement the architectural elements of any space
2′, 3′, 4′, and 8′ lengths available
Wireless in-fixture control solutions available
Support human-centric design with adaptive, individualized lighting using tunable white light
Build America, Buy America and Buy American Act compliant
Wireless in-fixture control solutions available
Made Right Here^® in the USA

Specifikim

- Housing
  - 22-gauge die-formed C.R.S.
- Shielding
  - Diffuse acrylic lens.
- Finish
  - 92% minimum average reflective white polyester powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
- Electrical
  - High-quality mid-power LED board. L70 > 72,000 hours per IES TM-21. L80 > 102,000 hours with HE option. 25°C maximum ambient operating temperature. 50°C max with HA50 Option. 50/60 Hz constant current driver. Tunable White products use LEDs of multiple shades of white from single-CCT products at the same CCT. All CCTs are within 3 MacAdam ellipses.
- Mounting
  - Surface (ceiling or wall) or suspended (hanging hardware required).
- Listings
  - cETLus conforms to UL STD 1598. Certified to CAN/CSA STD C22.2 No. 250.0. Suitable for damp locations.
  - UL 924 available.
  - DesignLights Consortium qualified product. Not all versions of this product may be DLC qualified, see the DLC Qualified Products List at www.designlights.org/QPL.
  - Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
  - Request certification at hew.com/buy-american.
- Warranty
  - 5-year limited warranty, see details

Specifikime teknike

Referencë unike75w-narrow-strip-wide-lens
Familja e produkteveIndoor Luminaires
Grupi i produkteveDownlights
LlojiObjekt (një objekt të vetëm)
Data e botimit2026-08-25
Numri i botimit1

Lidhje

Product URLhttps://hew.com/products/75w
Udhezime instalimihttps://hew.com/instruction/75-75L_instructions.pdf
Certifikimet e produktevehttps://hew.com/specifications/75W_led-tunable-white.pdf

Klasifikimi

Kategoria BIMobjectNdriçim - Tavan i montuar
