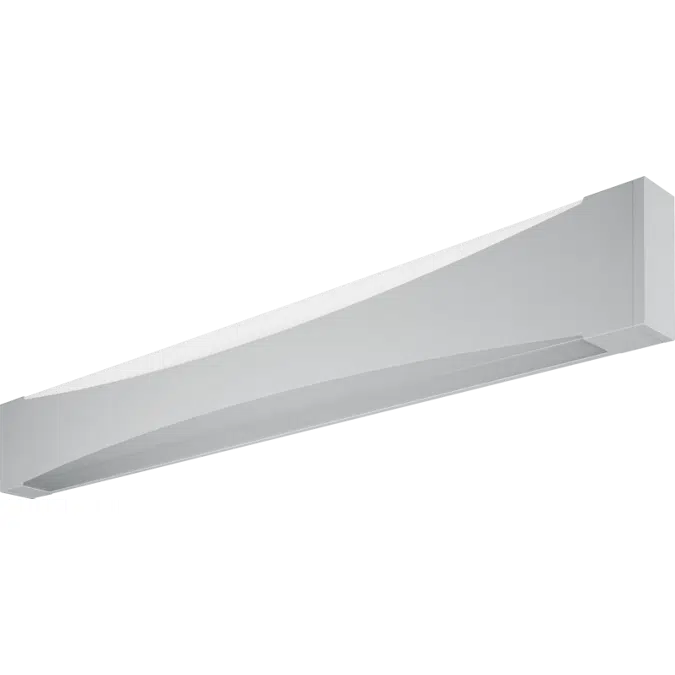

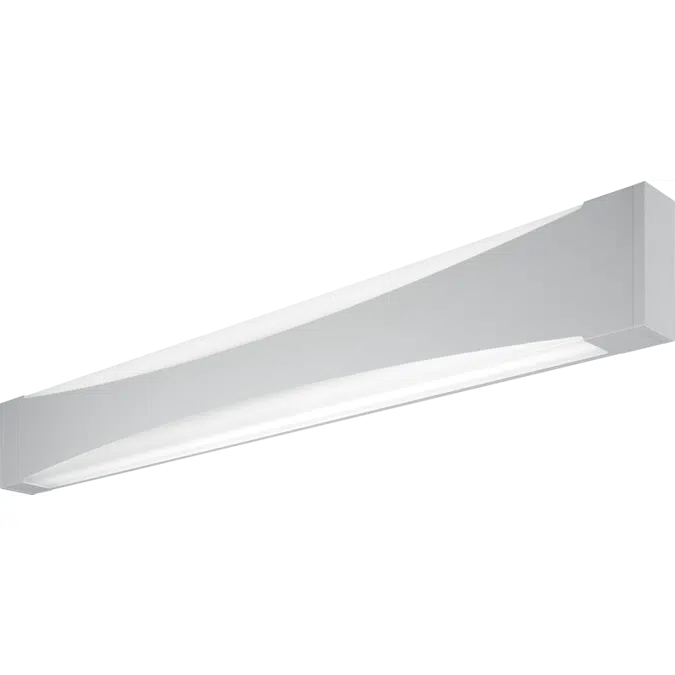

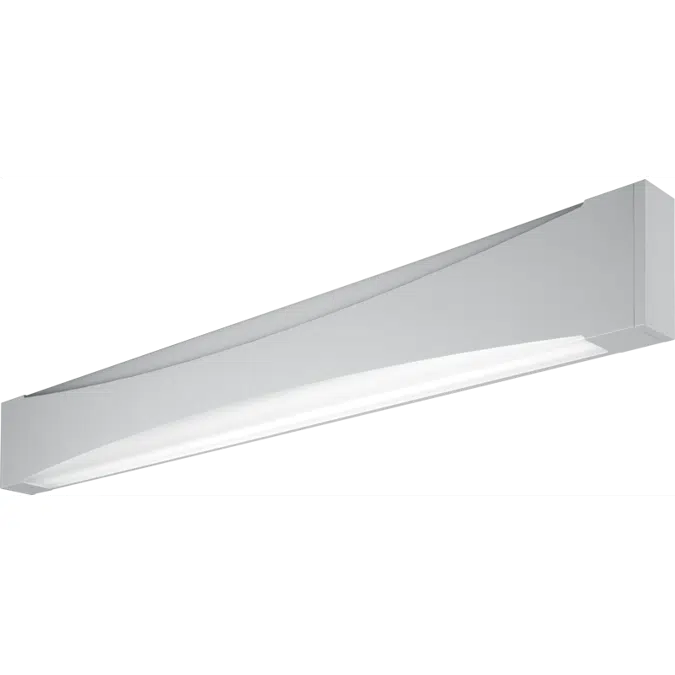

CW Contour Wall Mount

CW Contour Wall Mount

CW Contour Wall Mount

CW Contour Wall Mount

CW Contour Wall Mount

CW Contour Wall Mount

H.E. Williams, Inc.

CW Contour Wall Mount

Features

Contoured architectural form integrates seamlessly with modern interiors
Low-profile style meets ADA compliance standards
Direct and indirect lighting with closed top or bottom options available
Tamper-resistant screws are provided for vandal-prone areas
Low-voltage controller wall plate accessories provide easy access for healthcare personnel
Six standard finish options and a wide selection of custom colors complement architectural elements
Support human-centric design with adaptive, individualized lighting using tunable white light
Build America, Buy America and Buy American Act compliant
Made Right Here^® in the USA

Specifikim

- Housing
  - 20-gauge die-formed, welded C.R.S. with die-cast aluminum end caps. Tamper-resistant Torx Pin screws and (1) tamper-resistant tool provided.
- Shielding
  - Diffuse matte acrylic, .080″ thick.
- Finish
  - Textured anti-microbial matte white polyester TGIC powder coat bonded to phosphate-free, multi-stage pretreated metal. All parts painted after fabrication to facilitate installation, increase efficiency, and inhibit corrosion.
- Electrical
  - High-quality mid-power LED boards. L70 >72,000 hours per IES TM-21. 50/60 Hz constant current driver.
- Mounting
  - Wall mounts over horizontal junction box, flush to wall.
- Listings
  - cCSAus certified as luminaire suitable for dry or damp locations.
  - ADA compliant
  - Build America, Buy America (BABA) and Buy American Act (BAA) compliant.
  - Request certification at hew.com/buy-american.
- Warranty
  - 5-year limited warranty, see details

Specifikime teknike

Referencë unikecw-contour-wall-mount
Familja e produkteveIndoor Luminaires
Grupi i produkteveDownlights
LlojiObjekt (një objekt të vetëm)
Data e botimit2026-08-25
Numri i botimit1

Lidhje

Product URLhttps://hew.com/products/cw
Udhezime instalimihttps://hew.com/instruction/CMH-CW_instructions.pdf
Certifikimet e produktevehttps://hew.com/specifications/CW_led.pdf

Klasifikimi

Kategoria BIMobjectNdriçim - Varse muri
