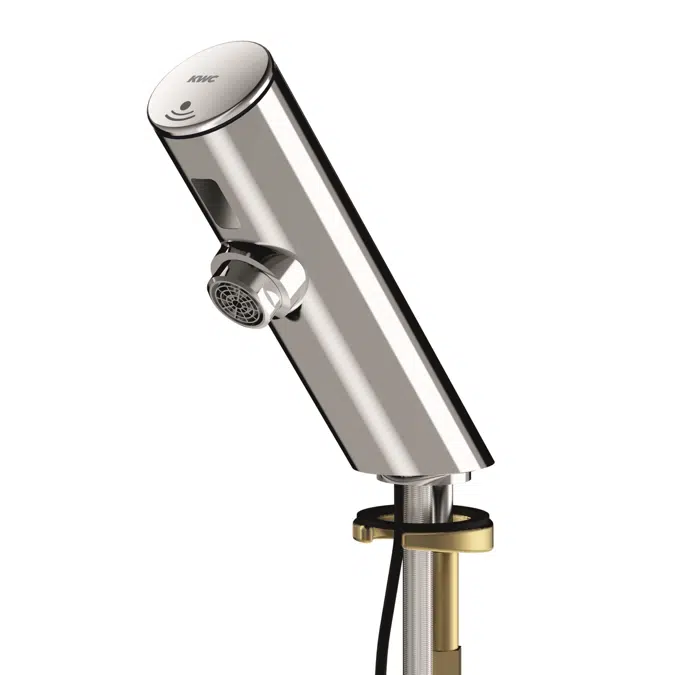

F3E electronic pillar tap F3EV1009

F3E pillar tap DN 15 for sanitary facilities, opto-electronically controlled. For connection to pre-mixed hot or cold water via hose and strainer. Control electronics, solenoid valve cartridge and sensor in all-metal housing, high-polished chromium-plated brass. Aerator with integrated flow regulator 3.0 l/min. Activated water hygiene flushing 24 hours after last activation, safety switch-off with continuous reflection and saving of statistical data. With option for parameterization and communication via optional, bidirectional remote control. Separate power supply via power supply unit 6.75 V / 12 V DC.

Specifikim

Type of mounting Tap hole
Type of operation Sensor operation
Protective system IP 59K
Power supply connection 6-12-VDC
Diameter nominal DN 15
Calculation flow rate cold water 0.10 liter per second
Functional principle Electronic self-closing
Minimum flow pressure 1.00 bar
Power consumption 1.50000
Volume flow rate at 3 bar 0.05 liter per second
Inlet size G3-8
Type of mixing No mixing
Material fitting Brass
Sound insulation No
Spout projection 100.00 mm
Surface finish fitting Chromed
Type of tap Pillar tap
Depressurised No
Thermal disinfection No
Protective shutdown Yes
Default automatic hygiene flushing 24h after the last activity
Position of power connection From bottom
Type of sensor Opto-electronic sensor
Hygiene flushing Yes

Specifikime teknike

Referencë unike2030039465
Familja e produkteveTaps
Grupi i produkteveElectronic taps
LlojiObjekt (një objekt të vetëm)
Data e botimit2021-03-22
Numri i botimit1
Gjatësia (mm)150
Gjerësia (mm)45

Lidhje

Të ngjashme

Materiali kryesorTunxh
Projektuar nëGjermani
Prodhuar nëGjermani
Weight Net (kg)1.24

Klasifikimi

Kategoria BIMobjectSanitar - Rubinet & Miksera
Uniclass 2015 CodePr_40_20_87_98
Uniclass 2015 PërshkrimWashbasin taps
