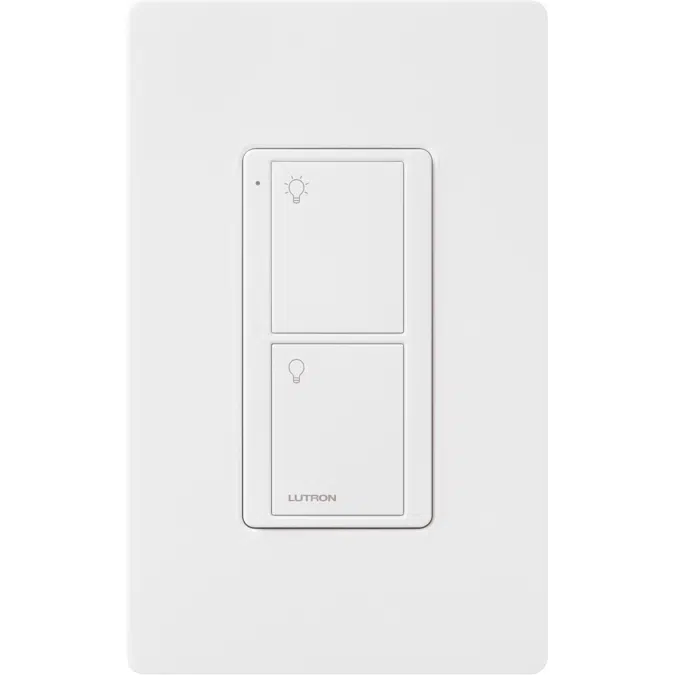

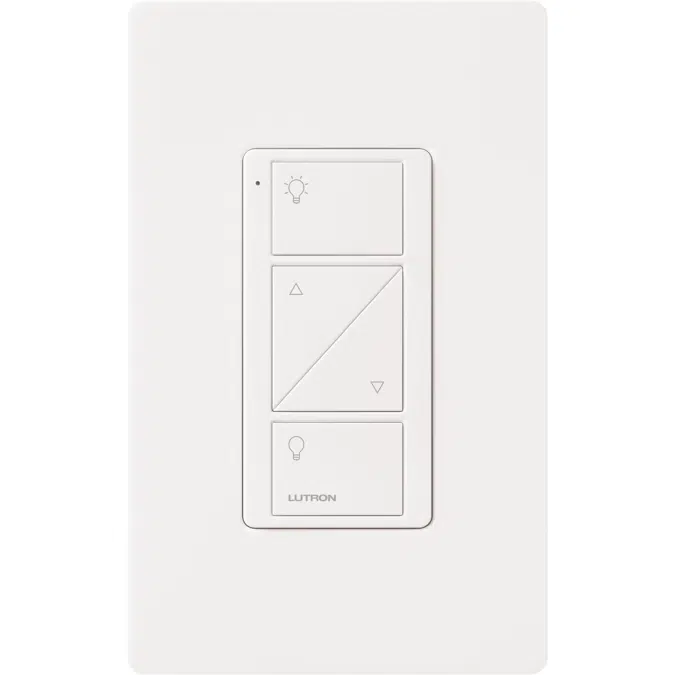

Pico Line-Powered Wireless Control

Specifications

Regulatory Approvals

• Lutron Quality Systems registered to ISO 9001:2015

• cULus

• FCC Certified (U.S.A.)

• IC Certified (Canada)

• IFETEL Certified (Mexico)

• NOM (Mexico)

Power

• 120–277 V~ 50/60Hz

• Maximum power consumption 0.5 W

System Communication and Capacity

• Communicates using Radio Frequency (RF) at

431 MHz to 437 MHz.

• Thousands of system addresses prevent interference

between systems.

• Can be assigned to control lighting and receptacle

control devices that are within a range of 30 ft (9 m)

through walls and 60 ft (18 m) line-of-sight.

• Range can be extended by use of a Vive hub.

Environment
• Ambient operating temperature:
32 ˚F to 104 ˚F (0 ˚C to 40 ˚C)
• Maximum 90% non-condensing relative humidity
• Indoor use only
Warranty
• 1 Year Limited Warranty
For additional Warranty information, please visit
www.lutron.com/TechnicalDocumentLibrary/
369-119_Wallbox_Warranty.pdf
