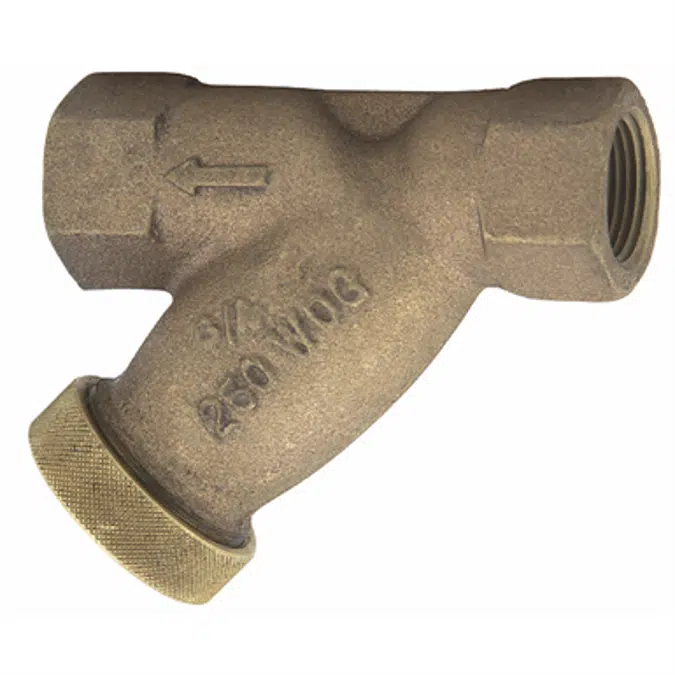

Wye-Pattern Strainers, Small Bronze - 745

Wye-Pattern Strainers, Small Bronze - 745

Description:

Series 745 Small Bronze Wye-Pattern Strainers feature a wye-pattern, bronze body with threaded connections and brass retainer cap. Retainer cap can be removed by hand allowing for easy screen cleaning. Maximum Pressure: 250psi (17.2 bar) @ 210°F (99°C) WOG, 50psi (3.5 bar) @ 280°F (138°C) WSP.

Specification

Keywords: assembly, backflow, backflow preventer valve, backflow valve, bronze body, bypass, cast iron, check valve, cover, dcda, detector, double, double check, doublecheck, epoxy coated, meter, pex crimping tools, pex tools, pressure valve, pressure zone valve, preventer, reduced pressure valve, repairkit, replacement, rpza, shut-off, steam, steamtrap, trap, valve, vlv, watts regulator, plumbing, drains, drainage, reduce pressure zone assembly, strainer
Size(s):
3/4 in. (20mm)

Technical specification

Unique ref.Wye-Pattern-Strainers-745
Product familyPlumbing & Flow Control Solutions
Product groupStrainers
TypeObject (single object)
Date of publishing2018-09-30
Edition number1
Width (mm)84

Links

Product urlhttps://www.watts.com/products/plumbing-flow-control-solutions/strainers/y-wye-strainers/745
Installation instructionshttp://media.wattswater.com/88005128.pdf
Product certificationhttps://www.watts.com/products/plumbing-flow-control-solutions/strainers/y-wye-strainers/745
Technical descriptionhttp://media.wattswater.com/ES-745.pdf

Related

Material mainBronze
Designed inUnited States
Manufactured inUnited States
Weight Net (Kg)1

Classification

BIMobject CategoryPlumbing - Valves
Uniclass 2015 CodeAc_10_40_63
Uniclass 2015 DescriptionPipe fitting
CSI MasterFormat 2014 Code40 05 09
CSI MasterFormat 2014 TitleWall Pipes, Floor Pipes, and Pipe Sleeves
OmniClass Number23-27 43 00
OmniClass TitlePipe Fittings
CSI UniFormat II CodeC1030
CSI UniFormat II TitleFittings

Region availability

North America
Canada
United States
