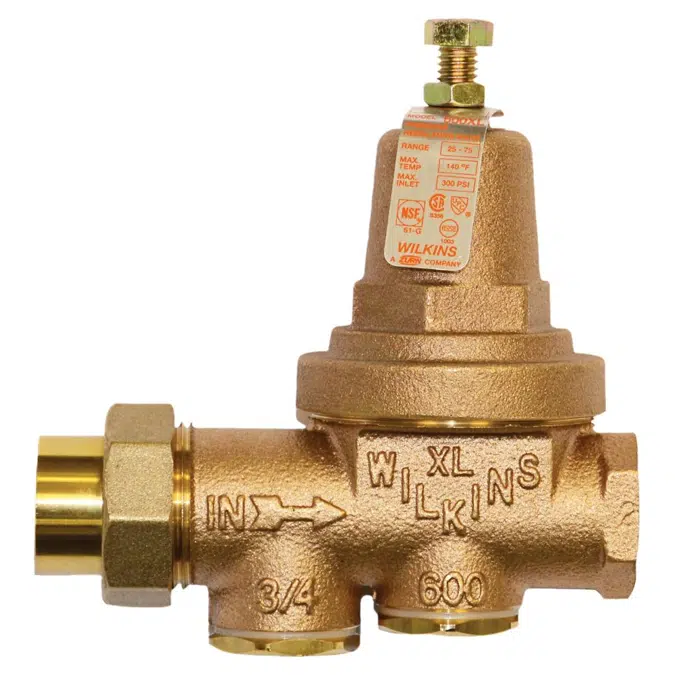

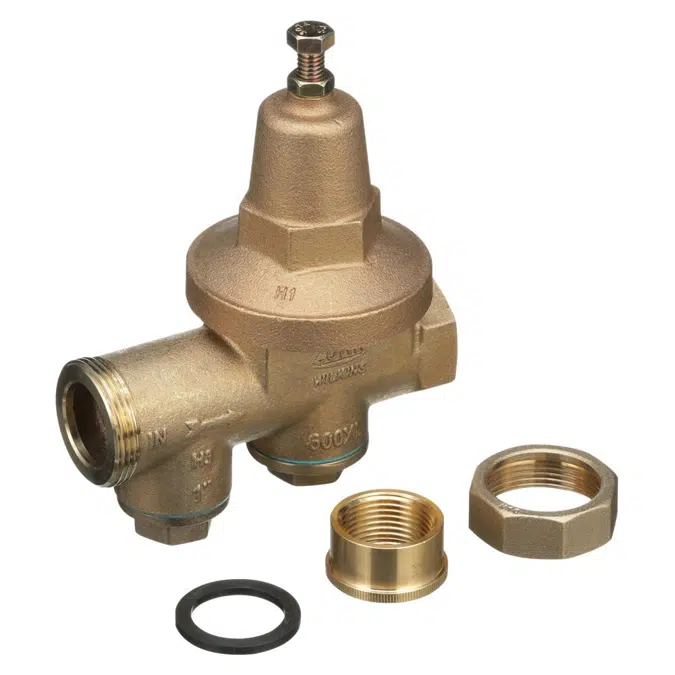

Wilkins 600XL Pressure Reducing Valve

The Pressure Reducing Valve shall be certified to NSF/ANSI/CAN 61, consist of a low lead bronze body and bronze bell housing, shall have separate access covers for the plunger and strainer screen and shall have a bolt to adjust the downstream pressure. The Pressure Reducing Valve shall be of the balanced piston design and shall reduce pressure in both flow and no-flow conditions. The bronze bell housing and access caps shall be threaded to the body and shall not require the use of ferrous screws. The Pressure Reducing Valve shall be a ZURN WILKINS Model 600XL.
Compliance:

NSFStandard61
NSFStandard372
ASSE listed
CSA B356
cUPC listed
IPC listed
NPCC listed

Features:

Sizes: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Maximum working water pressure 300 psi
Maximum working water temperature 140°F
Reduced pressure range (standard) 25 psi to 75 psi
Factory preset 50 psi
Hydrostatic test pressure 300 psi
CPVC tailpiece: Max. hot water temp. 140°F @ 100 psi
Cold water rated temp. 73.4°F @ 400 psi

Keywords: Pressure Reducing Valve, Commercial Pressure Redcing Valve, Residental Pressure Reducing Valves, Zurn Pressure Reducing Valves, Zurn Wilkins Pressure Reducing Valves

Especificaciones

Zurn Wilkins model 600XL is designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems requiring frequent cleaning because of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.

Especificaciones técnicas
