Drainable Louver - 4" Deep - 37-1/2 Degree Drainable Blade - FBC Approved - Extruded Aluminum - EFD-437-FL

Extruded Aluminum Louver
4" Deep - 37-1/2 Degree Drainable Blade

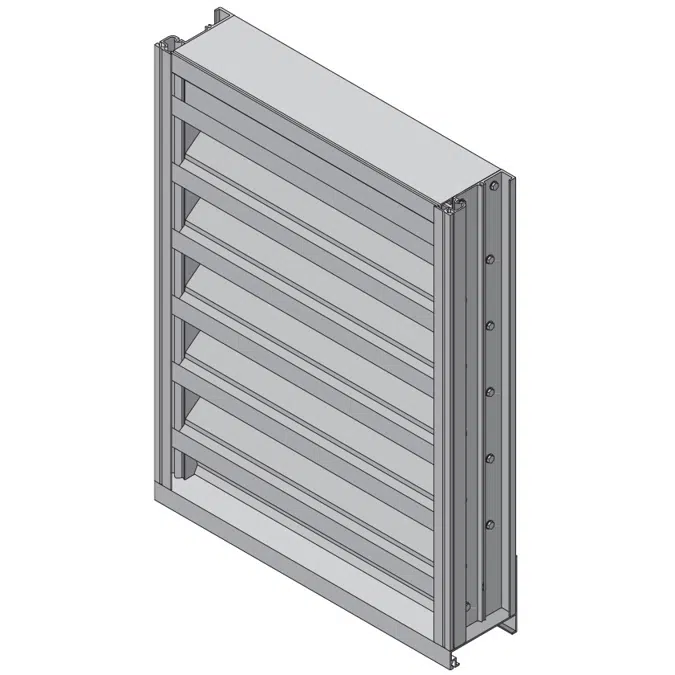

The EFD-437-FL louver is designed to prevent water penetration in non-wind-driven rain applications by collecting water in frame and blade gutters and channeling it into downspouts and away from airflow paths. The design is engineered and tested to withstand extreme loads, debris impact, and cyclic fatigue associated with the severe weather effects of hurricanes (Florida Building Code approval No. FL32498). The EFD-437-FL is AMCA 540 listed, making it ideally suited for use in hurricane-prone and windborne debris regions as per the International Building Code. In addition, the EFD-437-FL is a UL Classified Windstorm Rated Assembly with design pressures up to 250 psf (depending on section size).

Voce di capitolato

Standard Construction
Material: Mill finish 6063 extruded aluminum.
Frames: 4" deep x 0.081" thick (102 x 2) channel.
Blades: 37-1/2^o x 0.081" (2) thick drainable style.
Screen: 1/2" x 0.063" (12.7 x 1.6) expanded and flattened aluminum.
Mullion: Visible.
Minimum Size: 12" x 12" (305 x 305)
Maximum Size:
Single Section: 60" x 120" (1524 x 3048) or 120" x 60" (3048 x 1524)
Multiple Section: Unlimited width x 120" (3048) or 60" (1524) x unlimited height

Ratings
Free Area: 8.9 ft² (0.82 m²)
Performance @ Beginning Point of Water Penetration
Free Area Velocity: 1029 fpm (5.23 m/s)
Air Volume Delivered: 9105 cfm (4.30 m³/s)
Pressure Loss: 0.16 in. wg. (39 Pa)
Velocity @ 0.15 in. wg. Pressure Loss: 1012 fpm (5.14 m/s)
Design Load: Up to 250 psf (12.0 kPa), depending on section size
Florida Building Code Approval (2020-FBC): No. FL32498
AMCA 540 Listed: (impact resistance, Basic protection)
AMCA Certified for Water Penetration and Air Performance

Specifiche tecniche

Rif. UnicoDrainable-Louver-4-Deep-37-1-2-Degree-Drainable-Blade-FBC-Approved-Extruded-Aluminum-EFD-437-FL
Famiglia di prodottoHVAC
Gruppo di famigliaLouvers and Penthouses
TipoOggetto (oggetto singolo)
Data di pubblicazione2024-07-16
Numero di versione1

Links

Link al Prodottohttps://www.pottorff.com/product/details/363

Classificazioni

Categoria BIMobjectRiscaldamento, ventilazione e condizionamento - Canalizzazione
Codice Uniclass 2015Pr_30_59_48
Descrizione Uniclass 2015Louvres and components
Codice CSI MasterFormat 201408 91 00
Titolo CSI MasterFormat 2014Louvers
Numero OmniClass23-33 29 31
Titolo OmniClassLouvre Dampers
